Explore our export-grade high-density storage racking systems, engineered for maximum structural reliability, high throughput, and seamless ASRS integration.

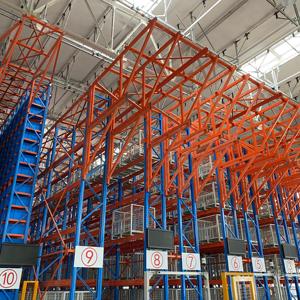

ASRS System
Fully automated storage and retrieval racking system engineered for massive distribution centers requiring real-time inventory management and high vertical density.
12-Tier High Density
Ultra-high vertical stack design with powder-coated finish (2.5m to 6m height configurations). Perfect for dense palletized batch storage and cold storage units.

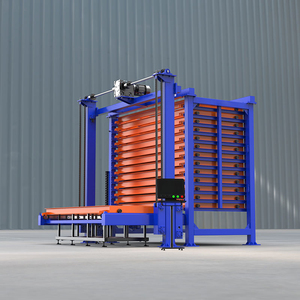

Sheet Metal Storage
Specialized vertical panel and sheet metal racking with automated roll-out drawers for ergonomic laser-cutting feed integration and raw material protection.

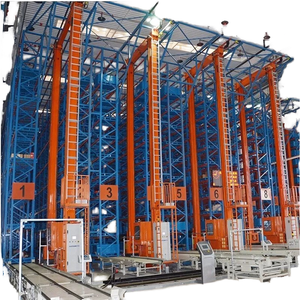

Profile & Pipe Rack
Customized intelligent cassette storage racking system designed for automatic loading/unloading of long aluminum extrusions, tubes, and structural profiles.

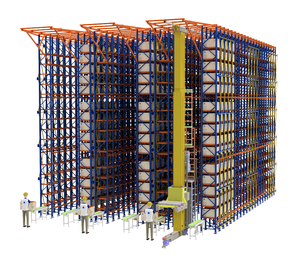

Turnkey ASRS
Turnkey ASRS rack infrastructure integrated with stacker cranes, conveyor systems, and WCS software interfaces to slash warehouse labor costs by up to 70%.

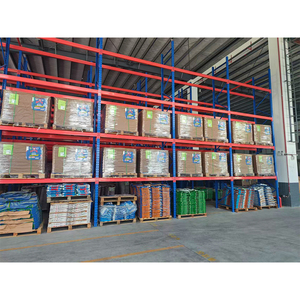

VNA High-Bay
Very Narrow Aisle (VNA) high-bay configuration maximizing floor cubic utilization. Designed for guided turret trucks and AGV automated navigation systems.

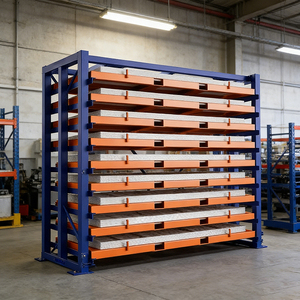

Roll-Out Tray
Heavy-duty roll-out tray storage system allowing 100% full-extension access for overhead cranes or forklifts handling heavy steel plates and dies.
3000KG / Level
Structural steel beam and frame racking engineered for 3-ton unit loads per level. Features double-pitched upright connectors and anti-impact column guards.
Why Tier-1 global logistics integrators trust Rackzzszn Storage Equipment Co., Ltd. for mission-critical automated racking infrastructure.
In modern high-density warehousing, structural integrity is not merely a specification—it is an operational requisite. As a premier China-based manufacturer with over 23 years of specialized engineering experience, Rackzzszn Storage Equipment Co., Ltd. operates a state-of-the-art 20,000 m² smart manufacturing facility equipped to process over 50,000 tons of high-tensile structural steel annually. Our automated storage racking systems are engineered in strict compliance with international structural codes, including FEM 10.2.02 (European Federation of Materials Handling), EN 15512, and RMI (Rack Manufacturers Institute) standards.
Every automated storage rack structure leaving our factory undergoes rigorous Quality Assurance (QA) testing. CE marking confirms that our structural steel components, load-bearing upright beams, and stacker crane guide rails meet stringent European Union health, safety, and environmental protection standards. Our manufacturing workflow integrates automatic CNC punching lines, high-precision continuous roll-forming mills, automated robotic welding stations, and South China's longest continuous electrostatic epoxy powder-coating line (operating three color passes simultaneously for exceptional corrosion resistance).
Comprehensive engineering matrix comparing automated racking configurations for modern fulfillment hubs and industrial facilities.
Selecting the optimal automated racking architecture requires evaluating floor slab load-bearing capacity, vertical clearance tolerances, seismic zoning (Zone 1 through Zone 4 compliance), and required SKU retrieval velocity. Automated Storage and Retrieval Systems (ASRS) and Very Narrow Aisle (VNA) high-bay racks demand zero-tolerance upright straightness and minimal deflection ratios under maximum payload.
| System Architecture | Max Load Capacity | Height Reach | Deflection Limit | Primary Industrial Application |
|---|---|---|---|---|
| Pallet ASRS (Unit-Load) | 1,500 – 3,000 kg / level | Up to 45 Meters | 1 / 300 (FEM Spec) | FMCG, Cold Storage (-30°C), High-Bay Fulfillment |
| VNA High-Bay Racking | 1,000 – 2,500 kg / level | Up to 18 Meters | 1 / 200 | E-commerce Hubs, Spare Parts Distribution |
| Vertical Sheet Metal Rack | 3,000 – 5,000 kg / tray | Up to 8 Meters | 1 / 250 | Automotive Stamping, Metal Fabrication, Machinery |
| Automated Profile Rack | 2,000 – 4,000 kg / cassette | Up to 12 Meters | 1 / 200 | Aluminum Extrusions, Pipe Warehousing, Structural Steel |
| Drive-In Automated Shuttle | 1,000 – 1,500 kg / level | Up to 24 Meters | 1 / 200 | Beverage Distribution, High-Volume Batch Storage |
Our upright frames are manufactured exclusively from prime cold-rolled steel coils (Q235B and Q355B structural grades). Beam connectors feature multi-prong drop-in hook locks with safety locking pins to prevent accidental dislodgement during high-speed AGV or stacker crane operations. For extreme environments, such as deep-freeze cold storage (-30°C) or chemical storage, we apply specialized low-temperature ductile steel formulations and hot-dip galvanizing per ISO 1461 standards to eliminate brittle fracture risks and surface oxidation.
Market intelligence and technological trajectories shaping the next generation of global warehouse infrastructure.
Traditional static racking is rapidly evolving into dynamic, AGV-compatible grid structures. Future warehouse procurement prioritizes racking equipped with integrated floor magnetic guidance channels, QR-code positioning grids, and structural mounting points for autonomous mobile robots (AMRs) to achieve 24/7 dark warehouse operation.
High-bay ASRS installations are increasingly specified with embedded wireless strain gauges and piezoelectric tilt sensors on critical upright columns. Real-time telemetry detects micro-deformations, forklift impact forces, and seismic drift before structural failures occur, ensuring continuous EHS compliance.
Industrial raw materials—such as metal sheets, heavy dies, and long extrusion profiles—are moving away from manual floor stacking to automated vertical roll-out cassette racking. This trend reclaims up to 80% of manufacturing floor space and enables direct feeding to CNC fiber laser cutters.
Global buyers in North America and Europe now mandate ESG compliance across supply chains. Rackzzszn leads China's racking export market by utilizing recycled steel scrap content, VOC-free powder-coating processes, and optimized container packing algorithms that maximize freight cube density.
Expert guidance addressing critical engineering, compliance, and export logistics inquiries for overseas buyers.
Connect with our senior racking engineers today. Send us your warehouse floor plan, ceiling height, and pallet load parameters for a free 2D/3D storage design layout and competitive direct-from-factory quote.
