Installation Guide & Rack Assembly On-site

At Rackzzszn Storage Equipment Co., Ltd., we understand that structural safety, precise engineering, and correct assembly are key to long-term warehouse reliability. With over 23 years of specialized experience in racking design, manufacturing, and global export, our engineering team ensures that every warehouse storage racking system meets international structural tolerance and load standards (FEM / ANSI / ISO specifications).

Whether you require step-by-step remote assembly guides, 3D structural CAD blueprints, or certified technical supervisors sent directly to your site, our complete installation framework ensures your storage project is completed efficiently and safely.

1. Essential Site Preparation & Construction Conditions

Before unpacking equipment or beginning physical erection on site, our project managers verify critical environmental and structural prerequisite parameters to prevent installation delays and ensure compliance with site safety protocols:

• Access & Logistics Clearances: Ensure all primary transit pathways, forklift access routes, loading bays, and power supplies inside the warehouse site are fully mapped and unobstructed.
• Civil Construction Progress: Building roofing, interior wall paint, overhead lighting, and trenching must be completed. Concrete floor curing strength should reach at least 75% of the designed floor bearing load rating before anchoring upright frames.
• Overhead & Structural Attachments: If racking columns or mezzanine platforms connect to existing building pillars or roof trusses, written clearance and structural authorization from building owners and engineers are strictly verified.
• Tooling & Rigging Preparation: Prepare calibrated torque wrenches, laser leveling meters, scissor lifts, forklifts, and safety gear suitable for the scale of your facility setup.

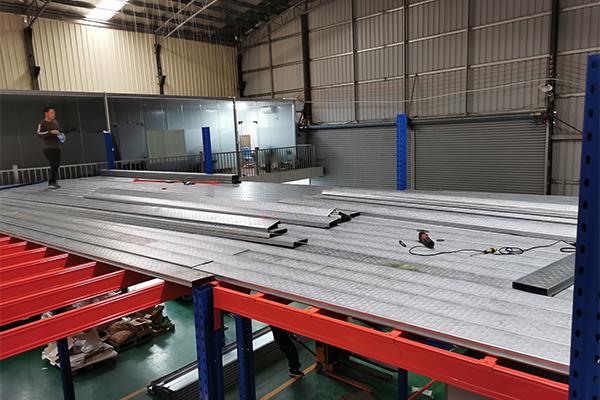

2. Component Receipt Inspection & Material Handling Protocol

To guarantee zero component defects during international ocean shipping, Rackzzszn Storage Equipment Co., Ltd. follows strict un-boxing and material control protocols upon cargo arrival:

1. Packaging Integrity Verification: Inspect container seals and master bundles against the official packing bill. Record and photograph any shipping anomalies prior to full unpacking.
2. Dimensional & Quantity Audits: Verify beam lengths, upright frame profiles, base plates, diagonal braces, and safety pin quantities against technical design drawings.
3. Protective Material Storage: Store all powder-coated steel uprights, beam channels, and galvanized components in a clean, dry, shaded environment protected from rain and humidity.
4. Safe Material Handling: Utilize protective slings and properly calibrated forklift forks during offloading to preserve factory powder-coating layers and prevent structural dents.

3. Strict Post-Installation Acceptance Technical Standards

Once installation is complete, our quality assurance team conducts rigorous post-assembly acceptance testing to ensure total structural stability and worker safety:

• Dimensional Uniformity: Column heights, clear span distances, and beam level elevations are measured with precision laser devices against engineering blueprints.
• Verticality & Leveling Tolerances: Total vertical deviation of upright frames must not exceed 10mm. Height alignment deviation between adjacent load beams on the same tier must remain within ±10mm. Row alignment along picking aisles must be kept within ±5mm tolerance.
• Weld Integrity & Coating Quality: Factory robotic welds are checked for uniform bead penetration without porosity, cracks, or slag. Powder-coated surfaces undergo impact tests to verify corrosion resistance and paint adhesion.
• Mechanical Fastening Verification: Verify that safety locking pins are correctly engaged in beam connectors and anchor bolts are fully torque-tightened into the concrete substrate.

4. Step-by-Step Pallet Rack Assembly Sequence

Follow our engineered step-by-step assembly process for optimum structural rigidity and seamless execution:

1. Unbox and Categorize: Match component batch codes against assembly manual callouts.
2. Review Technical Drawings: Study grid layouts, aisle spacing, floor anchor positions, and vertical beam tier heights.

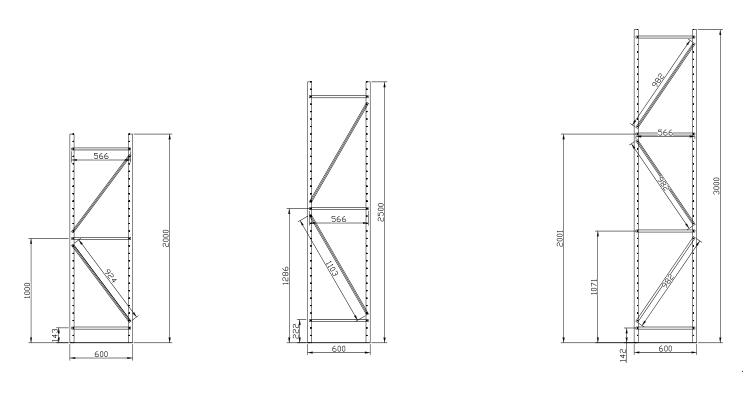

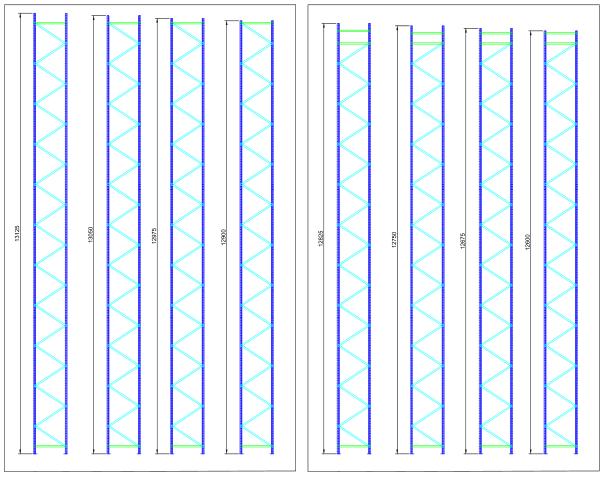

3. Assemble Upright Frames: Bolt horizontal and diagonal bracing members between vertical columns using specified high-tensile hardware and foot plates.
4. Attach Primary Beams: Position bottom and top beams into column teardrop or diamond slot patterns to establish structural bays. Secure safety locking pins immediately.

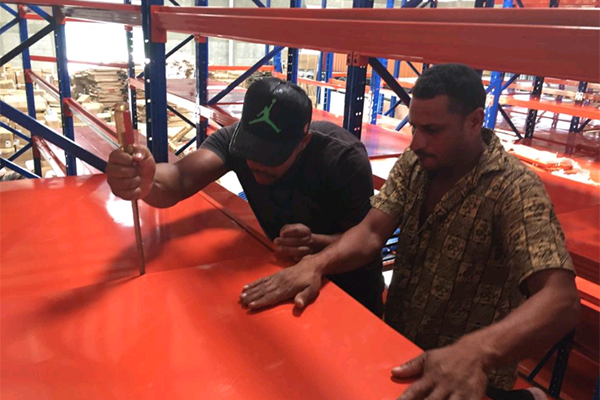

5. Insert Intermediate Tiers & Shelving: Install middle beam levels at designated vertical pitch heights, followed by wire mesh decks or steel shelves.
6. Vertical Plumbness & Leveling: Adjust steel shims under column base plates until frames are plumb and level.
7. Floor Anchoring & Final Torque: Drill floor anchor holes, insert expansion bolts into heavy-duty concrete, and torque all hardware systematically from bottom to top.

5. Crucial Safety Precautions During Racking Installation

• Maintain an organized installation zone; remove debris, packaging straps, and dust immediately.
• Avoid outdoor installation during wet weather or direct unshielded sun exposure prior to final site sealing.
• Ensure floor levelness before erecting heavy high-bay frames; use precision shims for uneven concrete subfloors.
• Handle all powder-coated components with care to prevent surface scratches, mechanical deformation, or structural distortion.
