Industrial Heavy-Duty Warehouse Pallet Rack Systems

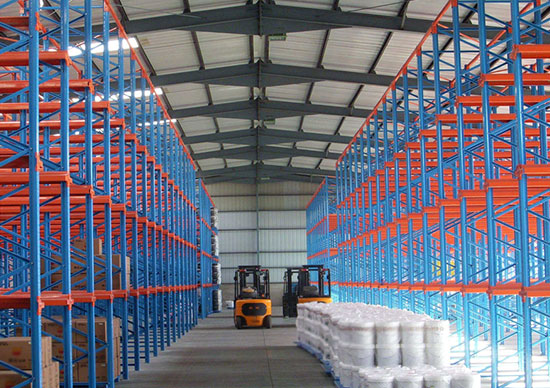

Pallet racking serves as the core foundation for modern material handling, logistics distribution centers, and commercial warehousing. Designed with structural integrity and high-grade cold-rolled steel (Q235B & Q355B), pallet rack systems allow forklift trucks to efficiently store, organize, and retrieve unitized palletized loads across multi-tier vertical storage frames.

Engineered and manufactured by Rackzzszn Storage Equipment Co., Ltd., our heavy-duty industrial pallet racks are engineered to comply with international FEM 10.2.02 and RMI structural design specifications. Whether your facility requires 100% immediate SKU selectivity or high-density drive-in storage, our engineering team custom calculates beam profile dimensions, frame height, upright gauges, and safety safety factors to match your building layout, floor loading limits, and material handling equipment.

High Load Capacity

Supports 1,000 kg up to 4,500 kg per beam level with 1.5 structural safety factor.

Adjustable Beam Pitch

75mm or 50mm beam level adjustment to accommodate variable pallet heights easily.

Durable Finish

Electrostatic powder coating protection against corrosion, wear, and cold-room humidity.

Engineering Specifications & Structural Parameters

Rackzzszn Storage Equipment Co., Ltd. manufactures heavy-duty warehouse racking with strict dimensional precision and raw material batch traceability. The table below outlines key standard engineering options:

Industrial Pallet Racking System Configurations

Choosing the correct racking configuration depends on inventory turn rate, SKU diversity, picking efficiency requirements, and floor space availability. Rackzzszn Storage Equipment Co., Ltd. supplies three primary pallet rack configurations for global industrial buyers:

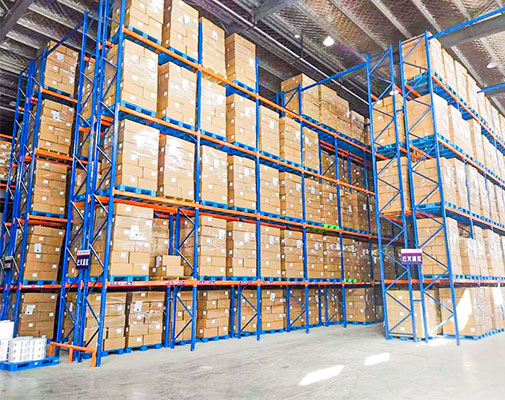

Selective Pallet Rack

Selective racking is the most versatile and cost-effective system in modern warehousing. Composed of vertical column frames and horizontal load beams, it delivers 100% direct access to every single pallet location without requiring adjacent pallets to be relocated. Compatible with standard counterbalanced forklifts and reach trucks.

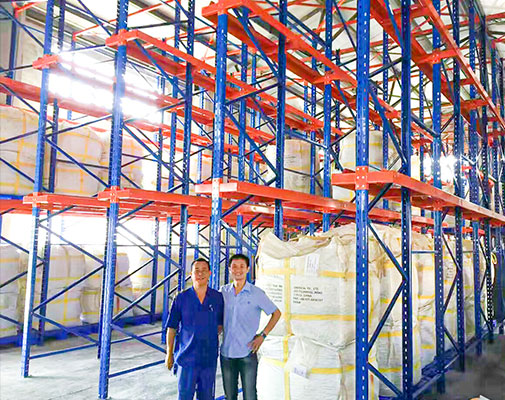

Drive-In & Drive-Through Rack

Drive-in pallet racking provides maximum high-density storage by eliminating traditional aisle spaces. Forklifts drive directly into the racking lanes to deposit or pick up pallets resting on continuous support rails. Ideal for bulk storage of low SKU counts, seasonal goods, and cold storage applications operating on a LIFO (Last-In, First-Out) inventory model.

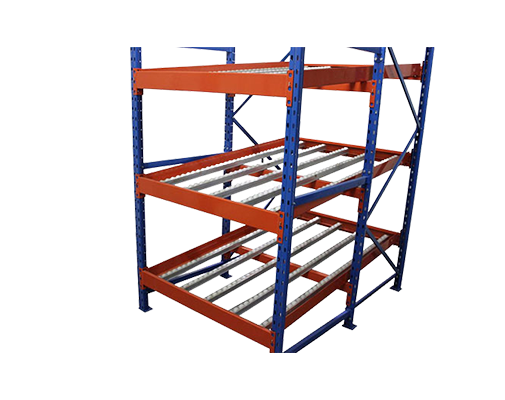

Gravity Pallet Flow Rack

Pallet flow racking uses inclined roller beds and dynamic speed brakes to move palletized loads automatically from the loading lane to the picking lane by gravity force. Operating on a strict FIFO (First-In, First-Out) principle, gravity flow systems accelerate inventory throughput while dramatically cutting picking transit distance.

Essential Structural Components & Accessories

A reliable pallet rack installation incorporates specialized safety accessories to protect structural integrity and operational personnel:

Upright Frames & Bracing

Roll-formed column posts braced with diagonal and horizontal steel struts for structural stiffness and shear strength.

Step & Box Beams

Heavy-duty welded connectors with automatic safety lock pins to prevent accidental dislodgement from forklift impacts.

Wire Mesh Decking

Heavy wire mesh panels fitted across beams to support non-standard pallets, enhance overhead lighting, and meet fire sprinkler codes.
