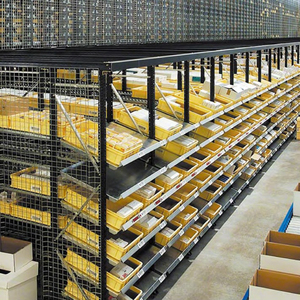

Gravity Flow Carton Flow Rack for Warehouse FIFO Storage System
Automated first-in, first-out carton picking racking with durable roller beds and ergonomic inclination.
Get Catalog

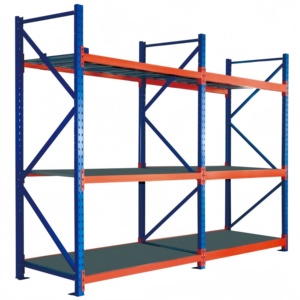

Medium Duty Long Span Metal Pallet Rack for Warehouses
Versatile boltless shelving system designed for medium load capacities (300kg-800kg per level).
Get Catalog

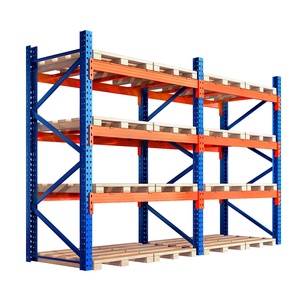

Industrial Heavy Duty Storage Shelves System Stacking Units
High-load capacity structural racking with beam connectors for 1000kg to 4000kg pallet loads.
Get Catalog

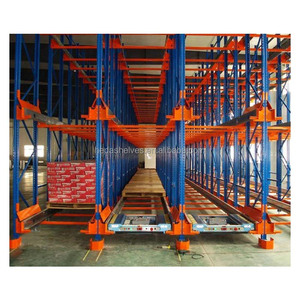

Auto Shuttle Racking System Intelligent Cold Storage Shuttle Rack
Semi-automated radio shuttle pallet racking maximizing density in cold stores and logistics hubs.
Get Catalog

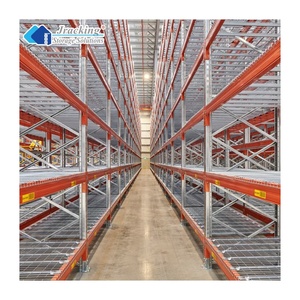

Jracking Australian Standard Industrial Racks CE Certified System
Complying with AS4084-2012 and CE specs. Ideal for international 3PL operators and warehouses.
Get Catalog

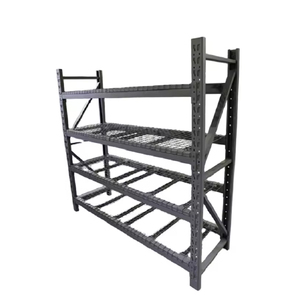

Wide Span Boltless Shelving with Wire Mesh Decking
Fire-compliant wire deck shelving providing superior ventilation and light visibility for loose cargo.
Get Catalog

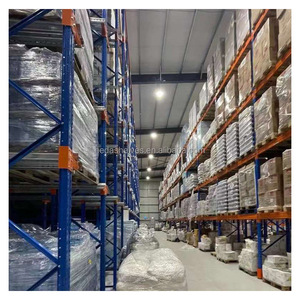

Warehouse Storage Rack Heavy Duty Selective Pallet System
100% SKU selectivity single deep pallet racking for standard counterbalanced and reach trucks.
Get Catalog

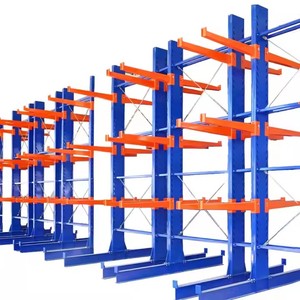

Heavy-Duty Industrial Cantilever Racks for Long Objects
Column-free front structure designed for timber, steel tubes, profiles, and bulky raw materials.
Get CatalogSingle Deep Pallet Racking Structural Blueprint & Engineering Principles
A comprehensive analysis of load-bearing mechanics, cold-formed steel selection, deformation limits, and compliance with global storage safety standards.
Single Deep Pallet Racking (also known as Selective Pallet Racking) remains the world’s most versatile, widely adopted industrial storage system. Providing immediate 100% access to every single pallet position without requiring unit relocation, single deep configurations balance spatial efficiency with rapid stock turnover. As supply chains demand faster order fulfillment and higher SKU variation, specifying the correct engineering parameters for single deep racking is critical to maintaining operational safety and maximizing vertical building clear heights.
1. Cold-Rolled Steel Selection & Metallurgy
At Rackzzszn Storage Equipment Co., Ltd., upright frame columns and load beams are roll-formed from high-tensile structural steel grades including Q235B and Q355B (equivalent to European S235JR and S355JR under EN 10025). The structural stability of the racking assembly hinges on cold-work hardening during the multi-stage continuous roll-forming process. Upright profiles feature 11 to 13 bending points to enhance moment of inertia and buckling resistance under heavy axial compression.
2. Deflection Limits & Safety Factors
Per European Norm EN 15512:2020 and FEM 10.2.02 standards, maximum vertical deflection ($\delta$) of load-bearing box beams or step beams under maximum working load must not exceed: $$\delta \le \frac{L}{200}$$ where $L$ represents the clear span beam length between upright columns. Structural calculation models utilize Finite Element Analysis (FEA) to simulate static loading, dynamic forklift placement impact, and localized buckling forces. All racking systems engineered by Rackzzszn maintain a minimum structural safety factor of 1.65 for yield stress and 1.5 for connection joints.
| Component Profile | Standard Specs / Pitch | Material Grade | Nominal Capacity Range | Compliance Standard |
|---|---|---|---|---|
| Omega Upright Column | 80/90/100/120mm Width x 50/75mm Pitch | Q355B Cold-Rolled Steel | Up to 24,000 kg / Frame | CE / EN 15512 / ISO 9001 |
| Heavy Duty Box Beam | 80x50mm to 160x50mm (1.5-2.0mm Thk) | Q235B / Q355B Steel | 1,000 kg – 4,500 kg / Pair | FEM 10.2.02 / RMI Specs |
| Beam Connector Claws | 3 or 4-Hook Lock Claws with Safety Pins | Hot Rolled Steel Stamping | Anti-Dislodgement > 5 kN | EN 15512 Shear Test |
| Footplate & Baseplate | 100x120x5mm to 160x160x8mm | Q235B Galvanized Steel | Anchored via M10/M12 Wedge Bolts | Seismic Zone Design |
Why Top Global Logistics Brands Partner with Rackzzszn
Combining 23+ years of manufacturing mastery, audited quality management systems, and South China's largest automated surface treatment facility.
23+ Years Industrial Experience
Founded in 2001, Rackzzszn Storage Equipment Co., Ltd. operates a 20,000 m² facility with over 300 skilled workers and dedicated engineering teams dedicated to warehouse rack optimization.
50,000 Tons Annual Capacity
Equipped with 80+ automatic continuous cold-roll forming machines, robotic welding stations, hydraulic punching units, and automated bundle packaging systems.
South China's Longest Powder Line
Features an advanced automated electrostatic spray coating line supporting 3 distinct color passes in one continuous operation, ensuring anti-corrosion layer depth of 80–100 microns.
Full Regulatory & CE Certification
SGS verified factory audit. Fully certified under European CE (EN 15512), ISO 9001:2015 quality management, and AS4084 Australian storage safety guidelines.
Exporting to 60+ Countries
Shipping 1,000+ export containers per year worldwide to trusted clients including Toyota, Panasonic, SF Express, Haier, China Post, and JD Logistics.
Turnkey Engineering Support
From initial site survey measurements to 2D/3D CAD drawing design, structural FEA calculation, container load optimization, and overseas installation guidance.
Future Trends in Pallet Racking & Warehouse Procurement
Key technological, material, and operational shifts shaping the industrial storage equipment sector over the next decade.
As global supply chains face warehouse labor shortages, rising land costs, and tighter ESG (Environmental, Social, and Governance) targets, procurement managers are rethinking traditional rack purchasing strategies. Buying pallet racking is no longer merely a steel commodity procurement—it is an investment in automated system compatibility and long-term asset resiliency.
1. Hybrid Integration: ASRS & AMR Readiness
Traditional single deep selective racking is increasingly modified to accommodate Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and Automated Storage and Retrieval Systems (ASRS). Future-proof procurement demands tighter beam installation tolerances (±1.5mm) and integrated barcode/RFID positioning strips along racking aisles.
2. Carbon Footprint & High-Strength Steel Alloys
Procurement departments in Europe and North America prioritize suppliers utilizing recycled steel scrap and low-carbon electric arc furnace (EAF) steel. Concurrently, switching from conventional Q235 steel to high-strength Q355B allows thin-wall structural optimization—reducing steel mass per pallet location by 12-15% while keeping structural integrity intact.
3. Smart IoT Health & Crash Monitoring
Modern high-bay single deep rack installations integrate smart IoT piezoelectric sensors and impact-detection guards. These sensors log forklift collision shockwaves in real-time, warning warehouse managers about frame deflection before catastrophic rack collapse occurs.
4. Modular Seismic & Cold Chain Engineering
With extreme weather and seismic activity awareness growing, global standards mandate dynamic seismic baseplates and low-temperature ductile steel for cold store environments (-30°C). Epoxy electrostatic finishes must resist micro-cracking during freeze-thaw cycles.
