Engineered with Q355B high-tensile cold-rolled steel, precision roll-forming technology, and electrostatic powder coating built for automated material handling.
Designed specifically for sub-zero frozen applications down to -30°C. Resists embrittlement with anti-corrosive powder coatings and engineered load profiles.
Maximizes vertical building clear height by integrating structural rack uprights with heavy-duty steel platform floor decks for multi-tier fulfillment.

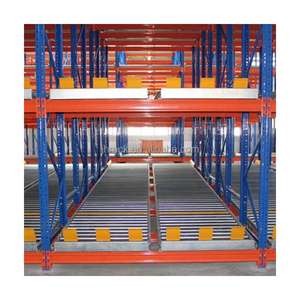

Features inclined roller tracks and automatic speed controllers to deliver smooth First-In, First-Out (FIFO) inventory rotation for perishable items.
Ultra-precise structural tolerance engineering custom-tailored for automated stacker crane retrieval, deep channel density, and continuous 24/7 operating cycles.
Versatile beam and frame storage system configured for varied unit-load dimensions, palletized freight, and heavy industrial spare parts logistics.
Eliminates individual work aisles to achieve up to 85% space utilization. Ideal for homogeneous bulk inventory operating under Last-In, First-Out (LIFO) rules.
Standard American teardrop pattern uprights featuring 2m to 3.6m+ frame heights, heavy wire decking for fall protection, and boltless beam lock pins.

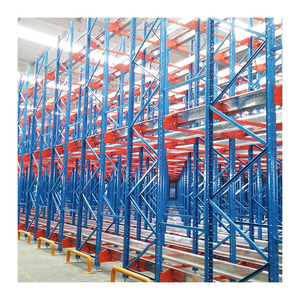

Semi-automated radio shuttle cart racking system maximizing throughput, eliminating forklift collision hazards inside channels, and enabling flexible FIFO/LIFO operation.
Vertical integration from raw steel coil slitting to precision powder coating delivers structural safety, FEM compliance, and reliable export logistics.
Every upright frame profile and beam section undergoes rigorous Finite Element Analysis (FEA) to ensure dynamic stability, seismic resistance, and zero structural deflection under maximum rated loads.
Certified under ISO 9001 quality standards, CE marked, and engineered strictly aligned with European FEM 10.2.02 and EN 15512 structural specifications for industrial warehousing safety.
Housing South China's longest continuous automated powder coating spray line, enabling uniform coating thickness (80-100μm), 3-color single-pass execution, and superior salt-spray corrosion resistance.
Custom steel strapping, protective corner wrapping, and custom wooden block packaging ensure 100% space utilization inside 40ft HQ export containers with zero transit damage.
Modern warehouse logistics has shifted rapidly from simple static storage to dynamic, highly automated distribution nodes. As global supply chains face volatile SKU spikes, shrinking operational footprints, and rising labor costs, selecting a certified smart warehouse pallet racking system is no longer just a structural procurement decision—it is a core driver of financial throughput and supply chain resilience.
Rackzzszn Storage Equipment Co., Ltd., leveraging over 23 years of specialized rack manufacturing experience in Guangzhou, China, delivers engineered steel pallet racks, cantilever systems, automated stacker crane interfaces, and radio shuttle solutions built to comply with international structural integrity benchmarks including European EN 15512 and FEM 10.2.02 design codes.
As logistics facilities transition toward Industry 4.0 automation, pallet racking systems must transition from passive weight-bearing frames into high-precision structural guides for automated machinery. Standard manual forklift tolerances (+/- 10mm) are unacceptable in automated crane and autonomous mobile robot (AMR) operational environments.
The table below provides a engineering evaluation of current heavy-duty pallet racking configurations to assist logistics directors in matching floor space, SKU diversity, and material handling automation:
| System Architecture | Space Utilization | SKU Selectivity | Handling Equipment Required | Cold Storage Suitability | Automation Grade |
|---|---|---|---|---|---|
| Selective Pallet Rack | 40% - 50% | 100% (Direct Access) | Standard Reach / Counterbalance Forklift | Good | Manual / AMR Assisted |
| Drive-In / Drive-Thru | 75% - 85% | 20% - 30% (LIFO/FIFO) | Counterbalance Forklift inside channels | Excellent | Manual Access |
| Radio Shuttle System | 80% - 90% | 50% - 70% (Channel FIFO/LIFO) | Standard Forklift + Automated Cart | Outstanding (-30°C) | Semi-Automated IoT |
| AS/RS Stacker Crane | 85% - 95% | 100% (Computer Controlled) | Automated Stacker Crane / Rail Guided | Outstanding | Fully Automated 24/7 |
| Gravity Flow Rack | 70% - 80% | Strict FIFO Rotation | Load/Unload Forklifts at Opposing Ends | Very Good | Gravity Passive Automation |
The enterprise warehousing sector is experiencing a paradigm shift driven by technological convergence, green initiatives, and rigorous safety mandates. Buyers evaluating enterprise rack suppliers must consider four key industry trends:
Traditional rack maintenance relied on periodic visual inspections—often conducted long after structural damage had compromised frame capacity. Next-generation pallet racking integrates wireless strain gauges, vibration sensors, and tilt indicators directly into baseplates and beam connectors. These IoT sensors broadcast real-time telemetry to the warehouse management system (WMS), flagging impact overloads, floor settling, or out-of-plumb frame movement before catastrophic collapse occurs.
Global demand for fresh food logistics and biopharmaceutical storage has accelerated investment in high-density cold storage facilities. Operating refrigerated environments at -25°C to -30°C consumes vast amounts of energy; consequently, maximizing volumetric storage density within the refrigerated envelope is vital to reducing kilowatt-hour costs per pallet. Furthermore, steel structural grades must be formulated with nickel-manganese alloys to prevent low-temperature cold-shortness (brittle fracture failure).
With e-commerce demand cycles shifting continuously, static warehouse layouts become obsolete quickly. Modern procurement favors teardrop and hook-type beam connection systems that can be adjusted vertically on 50mm, 75mm, or 76.2mm (3-inch) pitch increments without structural welding or specialized field equipment.
Expert engineering answers to technical queries regarding design, safety standards, installation, and global delivery of warehouse racking systems.
