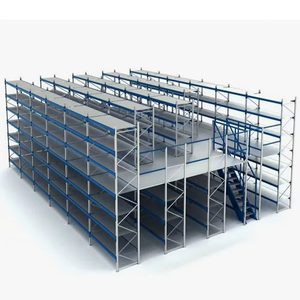

Integrated Pallet Rack Supported Mezzanine Platform

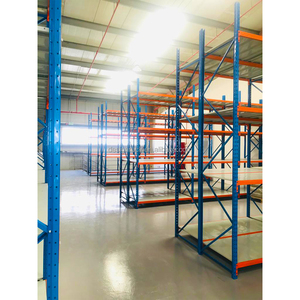

Adjustable Roll Formed Steel Beam Pallet Rack

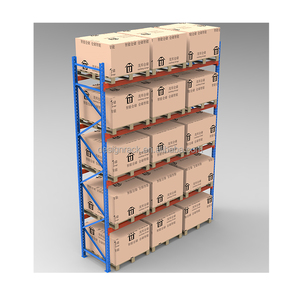

Heavy Duty Industrial VNA & Double Deep Pallet Rack

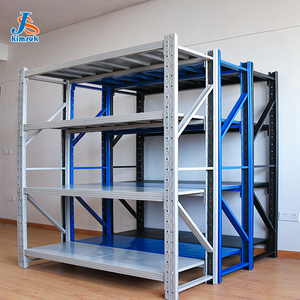

Adjustable Medium Duty Boltless Storage Shelving
High Quality Radio Pallet Shuttle Racking System

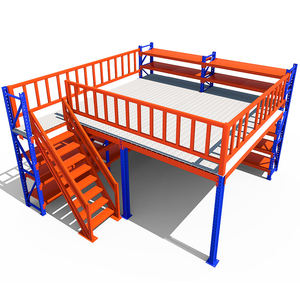

Steel Structure Industrial Mezzanine Floor Platform

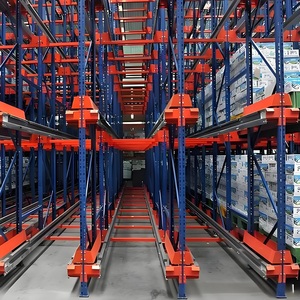

Semi-Automatic High Density Pallet Shuttle Racking

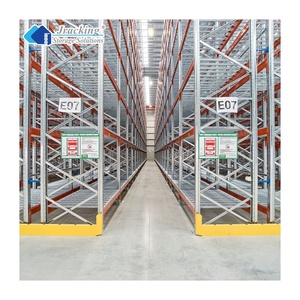

CE Certified Heavy Duty Steel Pallet Racking System
Engineering Architecture of LIFO Pallet Racking Systems
A structural whitepaper analysis on volumetric efficiency, load distribution kinetics, and material selection criteria for modern high-density warehouses.
In modern industrial logistics and global supply chain management, operational efficiency is directly proportional to volumetric storage density. Last-In, First-Out (LIFO) pallet racking systems represent the engineering pinnacle of high-density warehouse space utilization. Unlike standard selective pallet racking that requires dedicated aisles for every row of pallets, LIFO storage architectures eliminate up to 75% of operational aisles, enabling facility managers to convert up to 85% of total warehouse floor area into revenue-generating storage space.
As China’s premier LIFO pallet racking manufacturer and global exporter, Rackzzszn Storage Equipment Co., Ltd. engineered this whitepaper to provide logistics directors, structural consultants, and procurement managers with deep technical insights into selecting, customizing, and deploying industrial-grade LIFO storage equipment compliant with ISO 9001, FEM 10.2.02, RMI, and AS4084-2012 structural standards.
Drive-In / Drive-Through Racking
Utilizes continuous upright channels where forklifts physically enter the rack structure to deposit and retrieve pallets on cantilever rails. Best for homogeneous batch storage with deep lane requirements (6 to 10 pallets deep).
Push-Back Pallet Racking
Operates on nested telescopic carts riding on inclined structural steel rails (typically 1.5° to 3° gradient). As a new pallet is loaded, it pushes the preceding pallet back. Deep storage from 2 to 6 pallets per lane without forklift entry.
Radio Shuttle LIFO System
Combines semi-automated electric shuttle carts with heavy-duty structural steel frames. Wireless shuttles travel along deep lanes to transport pallets internally, achieving 90%+ volume utilization with zero forklift-rack structural collision risks.
Structural Physics & Dynamic Load Considerations
LIFO systems are exposed to complex dynamic loads compared to static selective racks. In Push-Back systems, kinetic energy must be calculated precisely to ensure gravity-assisted push-down speeds remain within controlled limits (under 0.5 m/s) using mechanical retarding rollers or precision-engineered incline gradients. In Drive-In systems, the absence of traditional front horizontal beams requires enhanced top-bracing frames (portal beams) and horizontal ground guide rails to prevent structural sway and torsional buckling under extreme forklift operations.
Quantitative Comparison Matrix: Drive-In vs. Push-Back vs. Shuttle LIFO
Selecting the optimal LIFO architecture requires balancing capital expenditure (CAPEX), SKU diversity, throughput rate, and structural floor loads. Below is a engineering comparison compiled by Rackzzszn’s structural engineering team:
| Evaluation Parameter | Drive-In Pallet Racking | Push-Back Cart Racking | Radio Shuttle LIFO System |
|---|---|---|---|
| Volumetric Efficiency | 75% - 85% | 70% - 80% | 85% - 92% (Highest) |
| Storage Density (Pallets Deep) | 4 - 10 Pallets Deep | 2 - 6 Pallets Deep | Up to 40+ Pallets Deep |
| SKU Flexibility | Low (1 SKU per lane) | Medium (1 SKU per level/lane) | High (1 SKU per rail level) |
| Forklift Operator Risk | Higher (Forklift enters rack) | Zero (Aisle-only loading) | Zero (Automated shuttle movement) |
| Handling Speed / Throughput | Moderate (15-20 pallets/hr) | High (30-45 pallets/hr) | Ultra-High (45-60 pallets/hr) |
| CAPEX per Pallet Location | Economical ($45 - $85) | Moderate ($90 - $160) | Advanced ($150 - $280) |
Material Science & Engineering Quality Assurance
Structural integrity begins with mill-certified raw materials and cold-roll-forming precision.
Q235B vs. Q355B High-Yield Structural Steel
At Rackzzszn, all upright columns and load-bearing beams are manufactured from certified high-tensile steel coils sourced from premium mills such as Baosteel and Shougang. For standard duty applications, cold-formed Q235B steel (Yield Strength ≥ 235 MPa) provides optimal performance. For deep freeze environments (-30°C) and seismic zone applications, we utilize Q355B low-alloy structural steel (Yield Strength ≥ 355 MPa), delivering a 50% increase in yield strength to withstand dynamic impact and extreme temperature fatigue.
Finite Element Analysis (FEA) & Beam Deflection Standard
Every LIFO racking project engineered by Rackzzszn undergoes Finite Element Analysis (FEA) testing using ANSYS structural simulation software. We enforce a strict deflection design limit of L/200 (where deflection under maximum load does not exceed 1/200th of the clear beam span), far exceeding standard market tolerances. Our upright profiles feature continuous automatic omega-section roll forming with 11 to 13 bending points to maximize moment of inertia and torsional resistance.
Automated Surface Treatment & Powder Coating Integrity
Corrosion resistance is crucial for long-term structural reliability, especially in humid or cold-storage environments. Rackzzszn operates South China's longest fully automated electrostatic powder coating spray line (over 500 meters). The multi-stage pre-treatment process includes automated degreasing, zinc-phosphate conversion coating, and deionized water rinsing. The thermosetting epoxy-polyester powder is cured at 200°C, yielding a uniform coating thickness of 80–100 μm that passes 500-hour cross-hatch adhesion and salt-spray corrosion tests.
Global LIFO Procurement Trends (2025–2030)
Key technological and market shifts driving international warehouse automation and structural rack sourcing.
1. Convergence of LIFO & AMR Robotics
Traditional manual forklifts are rapidly giving way to Autonomous Mobile Robots (AMRs) and automated AGVs. Modern LIFO systems require ultra-precise rail tolerances (±1.5mm alignment across 50 meters) and photoelectric sensor pockets integrated directly into shuttle racking profiles to support autonomous navigation.
2. Cold Chain Energy Volumetric Optimization
With global cold chain energy costs escalating, cold storage operators are migrating from selective racking to 8-to-12 deep LIFO Pallet Shuttle systems. Compressing refrigeration volume per pallet unit reduces operational thermal loss by up to 35%, delivering ROI on racking equipment within 18 months.
3. Modular Modularization & Reconfigurability
Supply chain volatility demands flexible warehouse hardware. Modern international buyers prioritize boltless, modular LIFO structures where push-back cart modules can be easily retrofitted into selective pallet racks or converted into semi-automated shuttle lanes as operational throughput expands.
Why Global Buyers Partner with Rackzzszn
Guangzhou’s premier warehouse racking manufacturer with end-to-end engineered delivery capabilities.
Founded in 2001, Rackzzszn Storage Equipment Co., Ltd. (formerly Maobang Storage Equipment) has evolved into South China's leading industrial warehouse racking designer, manufacturer, and exporter. Operating from a modern 20,000 square meter manufacturing hub in Panyu District, Guangzhou, our facility houses over 80 advanced automated production machines, including automatic continuous roll-forming lines, CNC laser cutters, robotic welding stations, and high-speed powder coating systems.
Our engineering team delivers full project lifecycles: from initial 3D laser site survey and CAD layout design, to FEM load simulation, structural manufacturing, export packaging, and international installation supervision. With over 1,000 export containers shipped annually to 60+ countries, we maintain strict compliance with global import regulations, custom tariff documentations, and structural safety standards.
- Full In-House Manufacturing: Zero subcontracting ensures total quality control over coil selection, punching, forming, welding, and coating.
- Verified Global Credentials: SGS Audited Factory, ISO 9001:2015 Quality System Certified, CE Execution Certificate for structural steel.
- Container Loading Optimization: Customized packaging protocols maximize shipping container weight and cube utilization, reducing ocean freight costs per unit.
- Turnkey Project Support: Comprehensive installation blueprints, 3D assembly guides, and dedicated remote/on-site engineering guidance.
Planning an Overseas Racking Project?
Speak directly with Rackzzszn's senior structural engineers to request customized 2D/3D warehouse CAD layouts and structural load calculations.
Frequently Asked Questions (Industrial Buyer's Technical FAQ)
Detailed engineering answers to critical purchasing, design, and structural safety questions.
What is the fundamental difference between LIFO and FIFO pallet racking systems?
LIFO (Last-In, First-Out) systems load and retrieve pallets from the same access point (the front face of the rack), meaning the last pallet placed into a bay is the first one retrieved. LIFO is ideal for non-perishable goods, high-volume homogeneous SKUs, or cold storage where space density takes precedence. FIFO (First-In, First-Out) systems load pallets from the rear and pick from the front (such as Gravity Flow Racking), ensuring strict batch rotation for perishables, food, and pharmaceuticals.
How does Rackzzszn calculate pallet beam load capacity and safety factors?
Our structural design calculations strictly follow FEM 10.2.02 and RMI specifications. Load capacity is calculated based on uniformly distributed loads (UDL). We apply a structural safety factor of 1.5 to 1.65 on steel yield strength, ensuring that under maximum rated capacity (e.g., 2,000 kg per level), beam deflection does not exceed the structural limit of L/200. FEA stress analysis reports are provided for all custom industrial projects before fabrication.
Can Drive-In or Push-Back LIFO racking be used in sub-zero cold storage facilities?
Yes. Rackzzszn specializes in cold chain storage racking engineered for temperatures as low as -30°C. For sub-zero operations, we specify Q355B low-alloy steel to prevent cold-embrittlement structural failure, paired with cold-resistant epoxy-polyester powder coatings or Hot-Dip Galvanizing (HDG according to ISO 1461) to guarantee zero rust formation during defrost cycles.
What floor floor loading parameters are required before installing deep LIFO racking?
Due to high volumetric concentration, LIFO systems generate substantial point loads on upright baseplates. A typical heavy-duty column baseplate may transfer point loads of 80 kN to 150 kN to the concrete slab. We require buyers to provide concrete slab specs (slab thickness, reinforcement mesh, and concrete compressive strength, typically C25/30 or 4,000 PSI minimum). Rackzzszn supplies custom heavy-duty footplates and chemical anchor bolts to distribute concentrated stresses safely.
Why is on-site measurement or accurate DWG drawing essential before placing an order?
In high-density racking installations, structural tolerances are measured in millimeters. Architectural building drawings often omit field variances such as building column base expansions, overhead lighting fixtures, fire sprinkler lines, wall plumb deviations, or floor slope drops. A deviation of just 20 mm can block a continuous 30-meter Drive-In rail or prevent an upright frame from clearing a roof truss. We conduct laser site surveys or provide detailed measurement checklists to guarantee 100% fit accuracy.
What international export certifications does Rackzzszn maintain?
Rackzzszn holds ISO 9001:2015 Quality Management System Certification, ISO 14001 Environmental Management Certification, CE Certification for steel structures, and SGS Factory Audit Verification. All materials are supplied with Mill Test Certificates (MTC) detailing chemical composition and mechanical tensile testing.
How are export racking shipments packaged to prevent transit damage?
Upright frames and beams are bundled using high-strength steel strapping, wrapped in protective multi-layer poly-bubble film, and fitted with heavy-duty corner protectors. Small components (baseplates, safety pins, bolts, and spacers) are packaged in reinforced wooden cases or heavy corrugated cartons strapped to steel pallets. This guarantees zero scratching or structural deformation during ocean transport.
Turnkey Project Execution Workflow
How Rackzzszn delivers precision-engineered storage systems from concept to commissioning.
1. Requirement & Data Survey
Analysis of SKU dimensions, pallet weights, forklift mast height, and warehouse DWG drawings.
2. 2D/3D CAD & FEA Design
Engineered layout drafting, aisle optimization, and Finite Element Analysis load validation.
3. Precision Manufacturing
Coil slitting, automated roll-forming, robotic welding, and electrostatic powder coating.
4. Global Export & Installation
Container packing, shipping documentation, assembly blueprints, and remote/on-site supervision.
