Jracking Australian Standard Industrial Racks CE Certified Heavy Duty Pallet Racking System
- Compliance: AS4084-2023 & CE Certified
- Capacity: Up to 4,500 kg per beam level
- Beam Types: Box beam & Step beam profiles
Direct Factory Recommendations
Featured Industrial Long Load & Pallet Racking Systems
Rigorous mechanical testing, optimized steel profiles, and modular compliance for high-density warehouse storage worldwide.
Heavy Duty Warehouse Storage Industrial Shelf Rack Metal Shelving With Steel Deck To Storage
- Decking: Galvanized or Powder-Coated Steel
- Structure: Adjustable boltless beam slots
- Application: Heavy manual bulk loading
Wholesale Warehouse Racking Pallet Racks Industrial Selective Pallet Racking Heavy Duty Drive In Rack System
- Efficiency: High-density LIFO storage mode
- Utilization: 85% floor space volume expansion
- Finish: Durable epoxy powder coating
Heavy Duty Pallet Rack System Industrial Shelves Storage Shelves Heavy Duty Pallet Racking
- Upright Section: 80/90/100/120mm structural profile
- Access: 100% direct pallet access flexibility
- Safeties: Safety pins & column protectors included

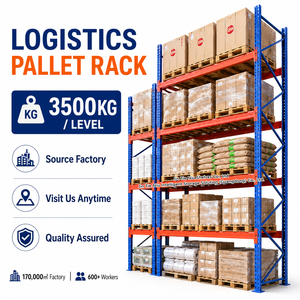

3500kg Super Heavy Duty Logistics Warehouse Pallet Beam Racking Source Factory High Load Storage Rack
- Payload: Tested for 3500kg/pair heavy beams
- Steel Grade: Q355B high-tensile cold-rolled steel
- Feature: Anti-seismic cross bracing design

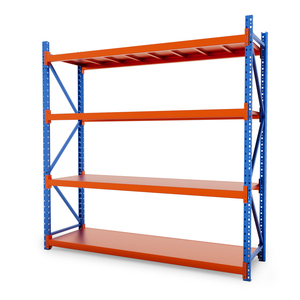

Wholesale Heavy Duty Pallet Rack 3000kg High Load 4 Layer Metal Shelves Durable Longspan Pallet Racking
- Span Range: Extended 2.7m – 3.9m clear span
- Layers: 4 adjustable tiers with steel panels
- Durability: 15+ years industrial lifespan
Heavy-Duty Industrial Cantilever Racks for Long Objects Storage
- Ideal For: Steel pipes, timber, tubes & plates
- Arm Load: 500 kg – 1500 kg per arm
- Configuration: Single & Double-sided columns
Warehouse Cantilever Racking and Shelf Stacking Rack Heavy Duty Pallet Rack Storage Steel Long Materials
- Flexibility: Modular continuous horizontal levels
- Material: Hot-rolled H-beam structural steel
- Handling: Overhead crane & side-loader optimized
Engineering Whitepaper: Structural Optimizations in Long Load Pallet Racking Manufacturing
Modern supply chain architecture demands unprecedented spatial efficiency, mechanical resilience, and structural precision. As premier China long load pallet racking manufacturers and global exporters, our engineering division focuses on overcoming structural deflection, horizontal sway, and dynamic load distribution failures inherent in storing high-density, long-span, and non-standard cargo.
Critical Information Gain: Mechanical Steel Selection & Structural Deflection Standards
Standard commercial racking often fails under sustained non-uniform long loads due to elastic instability. Our factory utilizes high-grade cold-rolled Q355B structural steel featuring a minimum yield strength of 355 MPa, engineered to maintain deflection strictness below L/200 under maximal working loads according to FEM 10.2.02 and EN 15512 specs.
1. Structural Dynamics of Long Span & High Capacity Storage Systems
When handling oversized cargo—such as extruded aluminum profiles, industrial piping, timber packs, heavy machinery molds, and extended master pallets—conventional rack frames face severe torsional strain. A engineered long load racking system incorporates specialized beam connection geometry and column profile cold-forming to convert point-load torque into axial compression along upright frames.
Cold-Formed Multi-Rib Uprights
11 to 13 distinct bending folds along the upright column profile increase moment of inertia, preventing localized bucking under extreme vertical weight up to 24,000 kg per bay.
Interlocking Connector Hooks
Precision stamp-formed 3 to 5-claw beam connectors ensure a rigid connection to upright teardrop or diamond slot patterns, eliminating connector rotational slippage.
Seismic Bracing Matrices
Triangulated horizontal and diagonal bracing profiles welded or bolted with grade 8.8 structural fasteners protect warehouse infrastructure against seismic shear forces.
2. Comparative Engineering Specifications: Steel Grade & Profile Matrix
Global procurement directors must analyze steel metallurgy, load mechanics, and coating longevity. Below is an authoritative technical comparison highlighting how our factory customizes steel profiles to client-specific storage thresholds:
| Racking Type | Optimal Load Profile | Material Grade | Max Span / Arm Length | Surface Treatment Standard |
|---|---|---|---|---|
| Heavy Duty Selective Pallet Rack | 1,000 kg – 4,500 kg / Level | Q355B / SS400 Cold-Rolled | Up to 3.9 Meters Clear Span | Electrostatic Epoxy Powder (60-80μm) |
| Structural Cantilever System | 500 kg – 1,800 kg / Arm | Hot-Rolled H-Beam (Q235B/Q355B) | Arm lengths up to 2.2 Meters | Hot-Dip Galvanized (ASTM A123, >70μm) |
| Industrial Longspan Shelving | 300 kg – 1,000 kg / Shelf | Cold-Rolled Steel + Steel Decks | Up to 2.7 Meters Clear Span | Thermosetting Polyester Coating |
| Drive-In High Density Storage | 1,200 kg – 2,000 kg / Pallet | Structural Formed Channels | Continuous Depth (10+ Pallets) | Duplex Powder/Galvanized Coating |
3. Manufacturing Excellence & Scalable Direct Export Capabilities
With over two decades of dedicated R&D and continuous equipment optimization, our manufacturing base stands as South China's leading hub for long load storage systems. We manage the entire manufacturing ecosystem internally—from raw steel coil slit-cutting and roll-forming to automated welding robotics and surface passivation.
23+
Years Manufacturing History
50,000T
Annual Steel Processing
60+
Countries Exported Worldwide
100%
AS4084 / CE Compliance Rate
Structural Innovation & Product Development Trends (2025–2030)
The global storage equipment landscape is shifting rapidly toward automated dense storage, modular reconfiguration, and extreme load resilience. Our engineering group pioneers key advancements in long load structural design:
Ultra-High Yield Micro-Alloy Steel Profiles
Migration from standard Q235 steel to micro-alloyed Q355B and Q460 steel reduces overall racking tare weight by 14% while augmenting ultimate buckling resistance by over 28% under dynamic impact loads.
IoT Strain & Deflection Monitoring Integration
Embedded digital strain sensors along critical heavy-duty beam spans provide real-time telemetry on static load stress, sending instant maintenance alerts prior to plastic deformation thresholds.
Modularity for Automated Long-Load AS/RS
Specialized pin-locking cantilever and beam configurations calibrated to tight tolerance margins (±1.5mm) for seamless pairing with automated crane systems and side-loading AGVs.
Future Procurement Trends in Industrial Storage Systems
As international supply chains optimize capital expenditure (CAPEX) and prioritize Environmental, Social, and Governance (ESG) compliance, procurement officers must consider several macro sourcing trends when buying from Chinese factories:
1. Shift Toward Total Cost of Ownership (TCO) Over Initial Unit Cost
Global enterprise buyers no longer evaluate quotes solely on metric tonnage price. Evaluation models now weigh structural lifecycle durability, maintenance frequency, and compliance assurance. Investing in high-grade powder coating (UV-resistant, anti-corrosive) and cold-rolled precision profiles drastically lowers total replacement and downtime costs across a 15-to-20-year window.
2. Zero-VOC Powder Coating & Zero-Carbon Manufacturing Directives
Environmental compliance in top destination markets (EU, Australia, North America) necessitates clean manufacturing. Our South China factory operates the region's longest continuous automated spray line utilizing zero-VOC thermosetting powder paints and fully recycled water passivation systems, ensuring seamless import documentation clearance for green-certified facilities.
Why Direct Sourcing from Our China Racking Manufacturing Base Delivers Enterprise Advantage
Overcoming supply chain fragmentation requires a manufacturing partner who manages the complete value chain—from architectural consultation and CAD layout engineering to container shipping optimization.
In-House Structural CAD/3D Simulation
Our engineering team analyzes building column grids, ceiling clearances, fire sprinkler pathways, and forklift turning radiuses before issuing final manufacturing drawings. 2D/3D layouts and load calculation certificates are supplied standard.
Rigorous Quality Assurance & Load Testing
Every production lot undergoes tensile strength testing, weld seam ultrasonic inspection, and destructive loading verification. We guarantee beam deflection metrics comply with global safety margins (Safety Factor 1.5 to 1.8).
Export Containerization Expertise
Custom heavy-duty bundling, corner protection, steel strapping, and moisture barrier wrapping ensure pristine product arrival. Our loading plans maximize 40ft High Cube container volumetric space, cutting ocean freight costs per unit.
Frequently Asked Technical & Procurement Questions (FAQ)
Clear, direct responses from our senior project engineering team for global procurement managers and warehouse operators.
What structural safety factors are applied to your long load pallet racks? +
Our pallet racking systems are engineered with structural safety factors ranging between 1.5 and 1.85, fully compliant with Australian Standard AS4084-2023, European FEM 10.2.02, and American RMI (Rack Manufacturers Institute) standards. This guarantees that ultimate structural failure strength is nearly double the rated safe working load limit under static conditions.
How do you calculate allowable beam deflection for wide span and heavy loads? +
Maximum allowable beam deflection is calculated as L/200 (where L is beam length). For example, on a 2,700 mm clear span pallet beam, total vertical deflection under maximum design capacity will not exceed 13.5 mm. For automated AS/RS applications, tighter deflection specs of L/300 or L/400 can be engineered upon request.
Can your heavy-duty cantilever racks accommodate non-uniform long loads? +
Yes. Structural cantilever racks utilize independent upright columns connected by heavy-duty brace sets. Cantilever arms can be customized with removable retaining pins, pipe stops, or continuous steel decking to safely store irregular, flexible, or non-uniform long items such as timber packs, plastic pipes, and steel bars.
What surface protection options exist for cold storage or outdoor installations? +
For indoor climate-controlled warehouses, high-durability electrostatic epoxy powder coating (60-80 microns) is standard. For cold storage (-30°C) or humid outdoor environments, we recommend Hot-Dip Galvanizing (HDG) per ASTM A123 / EN ISO 1461, delivering over 70 microns of pure zinc protection against steel oxidation and embrittlement.
What documentation and certifications are provided for custom import clearance? +
We provide full export compliance packages, including Mill Test Certificates (MTC) for raw steel batches, SGS Factory Inspection Reports, CE Conformity Declarations, ISO 9001 Quality Certificates, detailed CAD installation blueprints, and container loading certificates.
How are overseas installation and structural assembly guided? +
Every shipment includes comprehensive 3D assembly drawings, step-by-step installation manuals, and component marking lists. For major logistics projects, our factory can dispatch senior installation engineers on-site or provide video engineering guidance to direct local installation crews.
