Engineered Medium & Heavy Duty Product Recommendations
Explore our top-tier industrial pallet racks and modular shelving systems manufactured under stringent SGS and CE certifications. Precision-built to support uniform distributed loads from 200kg to over 1500kg per beam level.
Jracking Modular Design Cold Room Heavy Duty Pallet Racking
SL-AS004 Customized Automated AS/RS Alloy Steel Pallet Stacking Rack
Industrial Stack Warehouse Steel Pallet Racking System
Factory Direct Steel Selective Heavy Duty Industrial Racking
Smart Warehouse Automated AS/RS Steel Shuttle Racking System
Cold Rolled Steel 5-Layer Anti-Corrosion Bolt-Free Storage Shelving

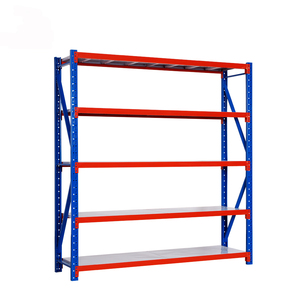

Medium Duty 500kg Loading Capacity Industrial Storage Rack
Custom Adjustable Medium-Duty Industrial Steel Shelving System
Why Partner with China’s Leading Medium Duty Racking Factory
With over 23 years of specialized R&D and manufacturing experience, Rackzzszn Storage Equipment Co., Ltd. delivers high-density steel racking solutions engineered for compliance with global standards, including EN 15512, FEM 10.2.02, and ANSI/RMI MH16.1.
Engineered Structural Integrity: The Technical Architecture
Medium duty pallet racking systems bridge the operational gap between light-duty longspan boltless shelving and heavy-duty selective pallet racks. Typically rated for load capacities spanning 200kg to 800kg per level, these systems rely on specialized cold-formed profile steel columns (75mm × 35mm or 55mm × 47mm upright sections) combined with P-type step beams or rectangular box beams.
Our manufacturing facility utilizes high-tensile Q235B and Q355 structural cold-rolled steel sourced directly from top-tier Chinese steel mills. Cold-roll forming mills punch precise 50mm or 75mm teardrop and butterfly pitch patterns into the upright frames, allowing end-users to reconfigure beam elevations rapidly without specialized tools or structural fasteners.
| Racking Parameter | Medium Duty Type A (Light-Medium) | Medium Duty Type B (Standard) | Heavy Duty Selective Comparison |
|---|---|---|---|
| Load Capacity / Level | 150 kg – 300 kg | 300 kg – 800 kg | 1,000 kg – 4,000 kg |
| Upright Column Profile | 50mm x 40mm x 1.2mm | 55mm x 47mm x 1.5mm / 1.8mm | 80mm x 60mm to 120mm x 95mm |
| Beam Construction | P-Type Step Beam / Angle Steel | Interlocking Step Beam / Tube Beam | Closed C-Profile Twin Beam |
| Pitch Adjustment | 50 mm Pitch | 50 mm / 75 mm Pitch | 75 mm / 76.2 mm Pitch |
| Decking Surface | Steel Panel / Wire Decking | Reinforced Steel Deck / Plywood | Pallet Support Bars / Wire Mesh |
| Operational Mode | Manual Picking / Hand Loaded | Manual / Light Stacker Crane | Counterbalance / Reach Forklifts |
Future Procurement Trends in Industrial Storage Racking
Global supply chain evolution is re-shaping how supply chain directors, industrial architects, and procurement officers specify racking infrastructure. Sourcing strategy is moving away from basic steel unit pricing toward lifetime yield, structural adaptability, and eco-certified manufacturing processes.
1. Hybrid Automation & AMR Integration
Modern medium-duty installations are increasingly retrofitted for Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). Procurement specifications now mandate tighter manufacturing tolerances (±0.5mm beam deflection limits under full load) to guarantee smooth robotic picking and rack-mounted sensor recognition.
2. Zero-VOC & Corrosion-Resistant Finishes
Overseas buyers now prioritize eco-friendly powder coatings. Operating South China's longest continuous automated electrocoat line, our factory applies non-toxic, lead-free epoxy polyester coatings that offer superior impact strength, scratch resistance, and 500+ hours of salt-spray anti-corrosion protection for humid and cold-chain environments.
3. Micro-Fulfillment & Rapid Reconfigurability
The rise of e-commerce quick-commerce hubs requires flexible layout adjustments. Modern medium-duty racking systems emphasize quick-connect safety locks, boltless beam connectors, and modular shelf dividers that allow warehouse managers to alter bay configurations within minutes without structural teardowns.
Next-Generation Racking Development: Material Science & Design Optimization
As structural engineering advances, medium-duty racking systems are undergoing a technological shift focused on increasing strength-to-weight ratios while reducing material consumption. Key design developments include:
High-Yield Cold-Formed Metallurgy
Transitioning from standard Q235 steel to micro-alloyed high-strength Q355 and Q460 steels allows upright frames to be manufactured with thinner walls (reducing shipping freight costs) while maintaining superior yield strength and resistance to buckling under dynamic loading conditions.
Finite Element Analysis (FEA) Modeling
Using advanced 3D FEA computational simulation, beam connectors, upright punch geometries, and diagonal bracing nodes are optimized to eliminate stress concentration points. This ensures compliance with structural safety factors (typically 1.5 to 1.65 under ANSI/RMI guidelines).
Sensor-Integrated Structural Health Monitoring
Smart racking installations are adopting wireless strain gauges and micro-seismic sensors mounted directly to critical upright bases. These sensors deliver real-time load displacement alerts and detect forklift impact force, preventing catastrophic racking collapse.
Frequently Asked Questions for Importing & Specifying Racking
Answers to common technical, structural, and international logistics questions asked by warehouse engineers and procurement professionals.
What structural differences distinguish medium-duty pallet racking from light-duty shelving? +
Medium-duty racking systems utilize heavy-gauge structural upright frames (typically 1.5mm to 2.0mm thick cold-rolled steel) with interlocked diagonal and horizontal bracing, paired with engineered step beams or box beams. Unlike light-duty shelving—which relies on thin angle iron and light clips for loads under 150kg—medium-duty systems feature high-strength beam connector claws with automated safety lock pins. This enables uniform distributed loads ranging from 300kg up to 800kg per shelf level while supporting larger clear-span width configurations up to 2500mm.
How is the maximum permissible deflection calculated for medium-duty beams? +
According to international rack design standards (such as EN 15512 and FEM 10.2.02), maximum beam deflection under full design load should not exceed L/200 (where L is the clear span beam length). For instance, on a 2,000mm length beam, the maximum allowable vertical deflection under full rated capacity is 10mm. At Rackzzszn, our engineering team performs load testing on every custom batch to verify that deflection remains safely within L/250 to ensure long-term structural integrity.
Can medium-duty racking systems be customized for cold storage and freezing facilities? +
Yes. Low-temperature operations require specific material considerations. Standard powder coatings can become brittle at sub-zero temperatures (-25°C to -40°C). For cold room environments, we utilize low-temperature resistant epoxy powders or hot-dip galvanized (HDG) steel coatings compliant with ASTM A123 standards. Additionally, the structural steel grade is selected to prevent hydrogen embrittlement and notch sensitivity in freezing conditions.
What site measurements must be verified before approving a factory racking layout drawing? +
Prior to manufacturing, buyers should provide accurate building layout dimensions detailing:
1. Clear overhead height (measuring to the lowest overhead obstruction, such as roof trusses, sprinklers, or lighting fixtures).
2. Floor slab specifications (concrete thickness, compressive strength rating, and levelness tolerance to ensure anchor bolt expansion stability).
3. Exact positioning of building columns, utility risers, and emergency fire egress doors to maintain code-compliant aisle clearances.
What export packaging and container load optimization methods does Rackzzszn employ? +
To prevent transit damage during ocean freight, upright frames are pre-assembled or knock-down bundled using high-tensile steel strapping, corner protectors, and heavy-duty corrugated wrapping. Beams are stacked in nested pairs with protective foam interlayers to prevent powder coat abrasion. Our logistics specialists utilize 3D container loading software to maximize cube utilization inside 40ft High Cube (HQ) containers, reducing ocean freight costs per unit.
How do I verify the manufacturing quality of a China racking supplier remotely? +
Work with factory-direct manufacturers holding third-party audited certifications such as ISO 9001:2015, SGS audit reports, and CE marking. Request raw material mill test certificates (MTC) verifying Q235B/Q355 steel grade compliance, weld inspection documentation, and factory video inspections. Rackzzszn provides complete quality assurance reports, paint thickness checks (standard 60–80 microns), and pre-shipment assembly trial photos for overseas clients.
Request an Engineered Layout & Custom Factory Quote
Send your warehouse floor plans, product dimensions, and load requirements. Our structural engineering team will deliver a free 2D/3D CAD layout design and detailed quotation within 24 hours.
