Engineering Grade Adjustable Pallet Racks
Explore heavy-duty, certified industrial racking configurations designed for high-density warehouse storage, structural stability, and forklift compatibility.

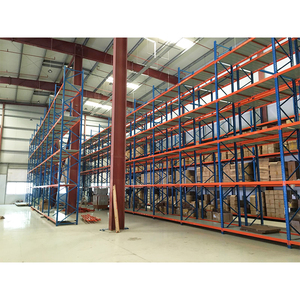

Heavy Duty Boltless Metal Shelving Unit Adjustable Steel Storage Rack
- Load Range: 500 – 1500 kg/level
- Adjustable Pitch: 50mm / 75mm
- Structure: Boltless tear-drop beam locking

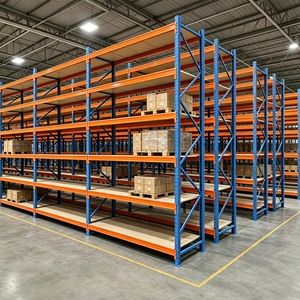

Selective Pallet Racking System 1000-3000kg Capacity Shelves
- Capacity: Up to 3000 kg per level
- Steel Grade: Q235B / Q355B Cold Rolled
- 100% SKU Selectivity Access

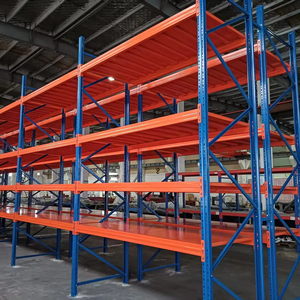

Adjustable Steel Laminated Stacking Racks with Laminate Decks
- Decking Options: Steel, Wire Mesh, MDF
- Modular expansion capability
- Scratch-resistant powder coating

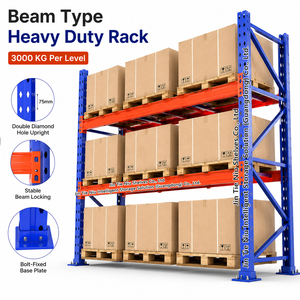

3000KG 2 Beam Levels Heavy Duty Powder Coated Storage Racking
- Beam Span: 2300mm – 3900mm
- Corrosion protection: Salt-spray tested
- Safety Pins: Automatic spring connectors
Semi-automatic Steel Rack System Radio Shuttle Pallet Racking
- High Density LIFO/FIFO storage
- Remote Control Shuttle Cart Integration
- Increases space utilization by 80%

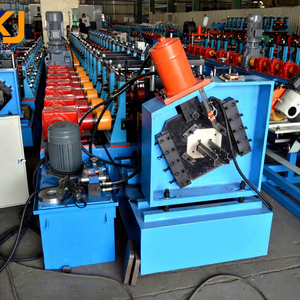

PLC Controlled Motor-Driven Rack Upright Roll Forming Machine
- High-precision automated manufacturing
- Continuous punching & cold-forming
- Strict structural tolerance engineering

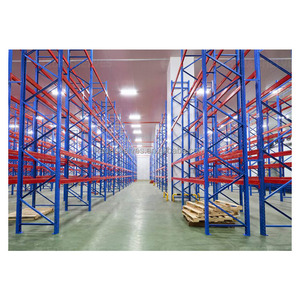

Heavy Duty Industrial Pallet Rack System Storage Shelving
- Multi-tier structural racking compatibility
- Custom column profiles (80/90/100/120mm)
- Seismic hazard rating compliant

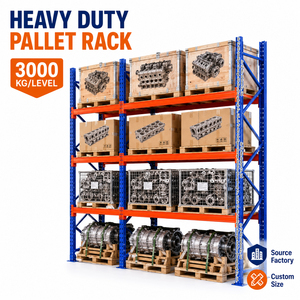

3000KG Heavy Duty Warehouse Shelf Rack 4 Levels For Pallet Storage
- 4-Tier High Bay Pallet Storage
- Heavy box beam & step beam options
- Impact protection frame guards
Technical Benchmark: Evaluating Chinese Pallet Racking Factories
Selecting an industrial racking supplier requires rigorous examination of structural steel properties, finite element stress analysis, powder-coat surface chemistry, and safety factor certifications.
Steel Metallurgy & Alloy Selection
Premier manufacturers prioritize high-tensile cold-rolled steel (Q235B and Q355B grades). Structural integrity relies on yield strength standard compliance (ISO 630 / ASTM A36 equivalents). High-yield Q355B allows reduced material gauge without compromising total load capacity, lowering freight costs per pallet space.
Beam Profile Geometry & Deflection
Beam deflection must strictly follow international standards (FEM 10.2.02 and ANSI MH16.1), capped at L/200 of total beam span under maximum safe working load. Premium manufacturers implement continuous robotically-welded step beams and box beams featuring 3 to 5-claw connectors with auto-locking safety pins.
Pre-Treatment & Surface Finish
Long-term durability against rust requires multi-stage surface preparation: acid pickling, degreasing, phosphating, and electrostatic epoxy-polyester powder coating (60–80 μm thickness). High-tier factories achieve salt-spray resistance exceeding 500 hours (ASTM B117), essential for humidity and cold storage environments.
Technical Specification Comparison: Heavy-Duty Racking Parameters
Use this technical framework when auditing vendor proposals and structural design sheets from Chinese racking suppliers:
| Engineering Attribute | Standard Grade Sourcing | Premium Tier (e.g. Rackzzszn Standard) | Structural Impact |
|---|---|---|---|
| Steel Raw Material | Commercial Q195 / Scrap Mix | Certified Baosteel Q235B / Q355B Cold Rolled | Prevents premature yield deformation under load spikes |
| Upright Profile Geometry | 8-Fold Omega Section (Simple) | 11 to 13-Fold Cold-Formed Omega Section | Higher moment of inertia & buckling resistance |
| Connector Lock Mechanism | 2-Hook Drop-in (No lock) | 4-Hook Connector with Spring Drop Lock | Eliminates beam dislodgement risks from forklift impact |
| Safety Design Factor | 1.3 (Baseline minimum) | 1.5 to 1.65 Safety Factor (FEM / RMI compliant) | Protects warehouse infrastructure against seismic shocks |
| Coating Thickness & Pass | 30-40 μm Single Pass | 60-90 μm Automated Electrostatic Pass | Prevents chipping, flaking, and structural steel oxidation |
Key Product Development Trends in Warehouse Racking
The global storage manufacturing ecosystem in China is undergoing a massive shift from passive static steel structures toward integrated, automated, and environmentally sustainable system architectures.
1. High-Density Radio Shuttle Automation Integration
Traditional selective racking is rapidly being upgraded to semi-automated and fully automated 2-Way and 4-Way Radio Shuttle Racking Systems. By utilizing self-powered shuttle vehicles traveling inside storage channels, companies achieve up to 80% storage density improvement while reducing operational forklift transit times by 40%.
2. IoT Smart Racking & Real-Time Structural Sensors
Next-generation industrial pallet racks incorporate integrated wireless strain gauges and vertical alignment sensors. These smart monitoring systems provide real-time alerts for dangerous structural deflection, localized overload, impact micro-fractures, and baseplate shifting caused by forklift collisions or seismic events.
3. Cold-Chain Resilient Sub-Zero Metallurgy
With global cold storage logistics expanding rapidly, leading Chinese manufacturers are engineering specialized cold-chain rack solutions. Utilizing micro-alloyed low-temperature steels treated with zinc-rich primer pre-coatings, these systems operate reliably in temperatures down to -30°C without embrittlement or coating peeling.
Future Procurement Trends for Overseas Buyers
Navigating cross-border warehouse logistics requires understanding shifting procurement dynamics, cost-optimization strategies, and direct-factory verification protocols.
Total Cost of Ownership (TCO) vs. Initial CAPEX
Forward-thinking supply chain directors no longer make procurement decisions based solely on initial dollar-per-ton steel costs. Low-quality racking leads to structural sagging, frequent downtime, maintenance hazards, and insurance liability spikes.
By sourcing directly from certified Chinese manufacturers with in-house design and robotic powder-coating capabilities, enterprise buyers save 35% to 45% compared to regional distributors while securing premium-grade structural warranties.
Freight-Optimized Knock-Down (KD) Engineering
Given international ocean container freight fluctuations, modern rack design prioritizes volumetric shipping optimization. Engineering modular boltless frames and nested beam profiles increases container payload density by up to 28% per 40ft High Cube container.
Factories offering specialized export packaging—such as steel wrapping, corner guards, and color-coded skid labeling—dramatically reduce port clearance delays and transit damage.
Why Enterprise Buyers Partner with Rackzzszn
Backed by over two decades of engineering expertise, Rackzzszn Storage Equipment Co., Ltd. is a premier warehouse storage racking manufacturer located in South China.
20,000 m² Advanced Facility
Equipped with over 80 automated machinery units including continuous roll-forming production lines, precision CNC punching stations, robot welding cells, and South China's longest multi-color powder coating spray line.
In-House Technical Engineering Team
Our structural design team evaluates ceiling clearance, ground slab load limits, aisle turns, forklift specs, and building column grids to produce 2D layout drawings and 3D FEA stress simulations prior to manufacturing.
SGS Audited & Certified Quality
Full compliance with ISO 9001 quality assurance standard. Every batch of raw steel coil undergo yield stress testing, weld inspection, and coating thickness verification, guaranteed by comprehensive export documentation.
Frequently Asked Questions for Sourcing Racks from China
Get immediate, technical answers to common queries regarding design customization, structural safety, export logistics, and installation assistance.
Do you design custom racking layouts based on my specific warehouse floor plans? +
Yes. Our dedicated engineering department provides turnkey customized layout design. We review your architectural drawings, ceiling clearance heights, building column matrix, floor slab loading specs, fire sprinkler pathways, and forklift turn radius data. We then deliver comprehensive 2D CAD CAD drawings and 3D FEA load calculations before production begins.
Why is verified measurement critical prior to finalizing structural rack orders? +
Second-hand structural drawings frequently miss field variations. Even a minor deviation of 2 cm can cause upright frames to conflict with overhead structural beams, lighting conduits, or emergency egress aisles. Precise site measurement prevents costly retrofitting during site assembly and ensures strict compliance with warehouse safety fire codes.
Which racking configuration is best suited for long items like timber, pipes, and extrusions? +
Cantilever Racking Systems are specifically engineered for storing long, bulky, or non-standard goods. Featuring structural columns with unobstructed horizontal load arms, cantilever racks allow uninterrupted front access. Single-sided cantilever racks fit against facility walls, while double-sided configurations maximize storage capacity in central aisles.
Can adjustable selective pallet racking be deployed safely in low-temperature cold rooms? +
Absolutely. We manufacture cold-storage-ready racking engineered specifically for sub-zero temperatures down to -30°C. We select specialized steel alloys engineered to resist low-temperature embrittlement and apply specialized zinc-rich primer undercoats beneath electrostatic powder coatings to prevent corrosion caused by humidity condensation.
What installation and technical support services do you provide for international projects? +
Every shipment includes detailed 3D assembly guide diagrams, component numbering schematics, and structural torque specifications. For large-scale distribution center installations, Rackzzszn can deploy senior project engineers on-site for direct assembly supervision, safety inspection sign-off, and operational maintenance guidance.
What steel grades and safety standards do Rackzzszn pallet racking systems comply with? +
Our heavy-duty racking systems are manufactured using high-grade Q235B and Q355B structural steel certified under international quality standards. Structural designs conform strictly to FEM 10.2.02 (European Federation of Materials Handling standard), ANSI MH16.1 (Rack Manufacturers Institute), and ISO 9001 manufacturing quality standards.
Transform Your Warehouse Storage Efficiency Today
Consult with our lead structural engineers. Receive custom layout drawings, load capacity calculations, and factory-direct pricing within 24 hours.
