Technical Whitepaper: Structural Optimization & Information Gain in Industrial Pallet Storage Systems

In modern global supply chain infrastructure, warehouse storage is no longer viewed merely as passive steel racking. It operates as an active, structural backbone designed to maximize volumetric cube utilization, minimize operational picking cycle times, and support heavy dynamic floor-load distributions. Selecting the correct manufacturer among China’s extensive industrial landscape requires a deep technical audit of material specs, structural safety factors, and dynamic load tolerances.

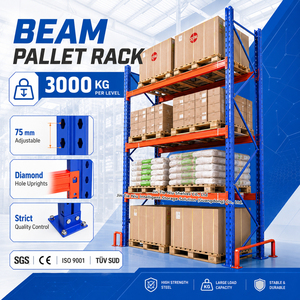

1. Prime Material Specification & Structural Physics

Top-tier Chinese suppliers utilize certified high-tensile cold-rolled steel coils, such as standard Q235B and structural Q355B (equivalent to European S235 JR and S355 JR standards). The yield strength of Q355B steel allows for thinner wall profiles with significantly enhanced load capacity, effectively reducing total structural weight while improving seismic moment resistance. Structural upright profiles feature 80mm to 140mm face widths with multi-ribbed omega-sections designed to prevent local buckling under extreme vertical loads (ranging up to 25,000 kg per rack frame).

• Beam-to-Column Connection Lock: High-grade 3 or 4-hook connector brackets welded to heavy-duty teardrop or diamond beam profiles, equipped with automatic safety locks to prevent accidental forklift dislodgement.
• Seismic Engineering & Anchor Design: Base plates engineered with chemical drop-in anchors rated for local seismic zone acceleration parameters (PGA factors up to 0.4g).
• Deflection Tolerances: Structural beams calculated strictly within L/200 deflection limits under maximum nominal load conditions in compliance with FEM 10.2.02 and RMI standards.

2. Racking System Selection Matrix for Global Logistics

Selecting an ideal racking geometry requires matching stock keeping unit (SKU) density, access requirements, and material handling equipment (MHE) characteristics. The table below outlines key technical metrics across standard configurations engineered in our Guangzhou factory:

Future Procurement & System Integration Trends in Pallet Storage

As warehousing shifts toward automated smart infrastructure, procurement parameters for global buyers are evolving rapidly. Understanding these mega-trends enables supply chain executives to future-proof their facility investments and optimize Total Cost of Ownership (TCO).

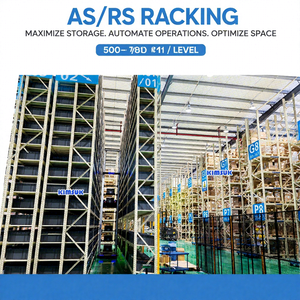

Trend 1: Hybrid Automated Four-Way Shuttle & ASRS Integration

Traditional static racking systems are increasingly being retrofitted or replaced by high-density automated shuttle architectures. Four-way radio shuttles travel both longitudinally and laterally along dedicated guide rails inside the rack matrix. This setup eliminates internal forklift aisles, maximizes storage density by up to 85%, and seamlessly integrates with Warehouse Management Software (WMS) and Autonomous Mobile Robots (AMRs).

Trend 2: Cold-Chain Material Science & Thermal Fracture Resistance

With global demand for frozen food and biopharmaceutical distribution surging, storage racking destined for cold environments (operating from -25°C to -45°C) requires specialized structural metallurgy. Standard carbon steel can experience severe cold embrittlement. Modern procurement contracts stipulate micro-alloy steel grades combined with specialized low-temperature powder coatings or heavy hot-dip galvanizing (HDG with coating thickness > 85 microns) to prevent micro-fractures and corrosion under constant condensation cycling.

Trend 3: ESG Compliance and Sustainable Powder Coatings

Environmental, Social, and Governance (ESG) criteria are driving procurement decisions among multinational buyers. Leading Chinese factories are transitioning entirely away from solvent-based paints to VOC-free electrostatic epoxy-polyester powder coatings. Furthermore, closed-loop water treatment systems during phosphating and pre-treatment stages ensure zero toxic chemical discharge into local environments.
