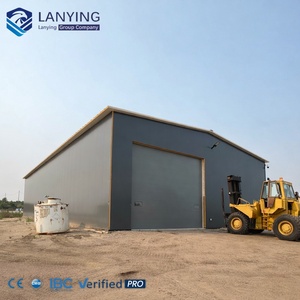

Free Design Prefabricated Steel Factory Industrial Warehouse Buildings
Large-span clear-frame structural steel buildings optimized for high-density heavy-duty pallet racking installation.
Engineered Product Portfolio
High-Capacity Industrial Storage Systems
Direct from South China's premier manufacturer. Customized heavy-duty racking, mezzanine platforms, and automated system integration compliant with FEM 10.2.02 and ANSI MH16.1 standards.

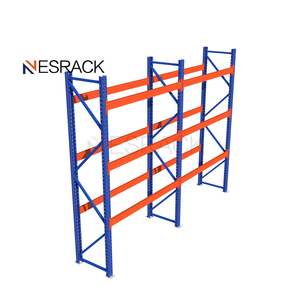

Medium/Heavy Duty Powder Coating Steel Cargo Equipment Pallet Rack Supermarket Iron Storage Racks
High-grade Q235B/Q355B steel storage frames featuring dynamic electrostatic powder coating for rustproof durability.

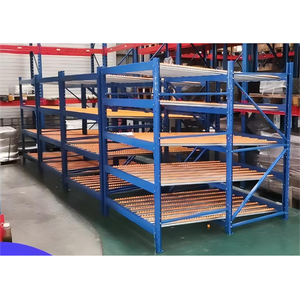

Pallet Roller Rack Forklift-Accessible 5-Layer Corrosion Protection Steel with Adjustable Height
Gravity-flow roller racking engineered for FIFO inventory management with custom height configuration.

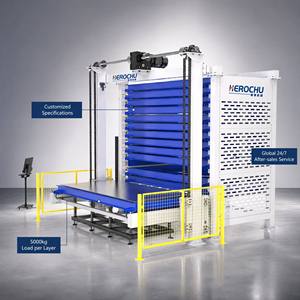

Customizable 5000kg Capacity Multi Tower Smart ASRS Vertical Steel Plate Material Automatic Storage System
Automated Storage and Retrieval System (ASRS) designed for extra-heavy steel plates, sheet metals, and oversized dies.

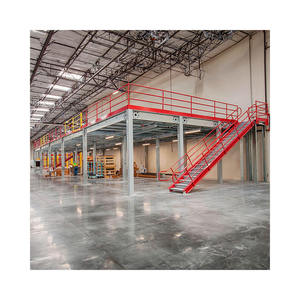

ISO CE Certified Heavy Duty Steel Mezzanine Floor Racking System Multi-level Warehouse Platform
Multi-tier heavy-duty mezzanine structures doubling vertical square footage for picking and bulk industrial goods.

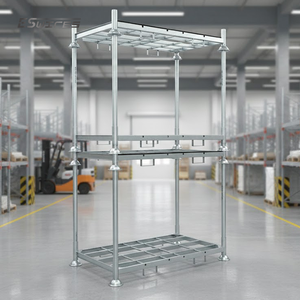

Customized Premium Material Heavy Duty Post Pallet Rack for Cold Warehouse
Low-temperature resistant cold storage stacking racks engineered to withstand sub-zero conditions down to -30°C.
Custom Steel Structure Prefabricated Metal Building Large Span Workshop Industrial Warehouse Factory
Heavy structural steel framework engineered for high seismic load protection and custom rack integration.

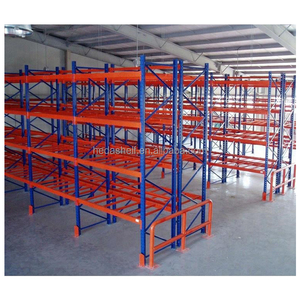

Wide Aisle Pallet Racking Heavy Duty Metal Rack Double Deep Clothes Racking System for Warehouse
Double-deep high density racking system maximizing pallet positions while maintaining high throughput capability.
Engineering White Paper
Technical Benchmark & Sourcing Guide for Oversized Pallet Racking
Comprehensive engineering insights into structural load dynamics, safety factors, material science, and manufacturing standards for non-standard heavy payload warehouse infrastructure.
1. Defining Oversized Pallet Racking: Engineering Parameters & Structural Load Physics
In modern industrial logistics, standard pallet dimensions (such as the Euro-pallet 800×1200mm or ISO 1000×1200mm) frequently fail to accommodate non-standard, bulky, or ultra-heavy unit loads. Oversized pallet racking refers to structural storage systems engineered to handle clear bay spans exceeding 2700mm (reaching up to 4500mm or more) and frame depths greater than 1200mm, carrying point or uniform distributed loads from 2,000kg to over 6,000kg per beam level.
When designing racks for oversized loads, standard cold-formed light-gauge profiles become prone to torsional buckling and excessive vertical deflection. Structural integrity requires precise compliance with international engineering codes including FEM 10.2.02 (European Racking Federation), ANSI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks), and AS 4084-2012. Key design considerations include:
- Deflection Limits ($L/200$): Under full design load, maximum allowable beam deflection must not exceed $1/200th$ of the clear span length to prevent permanent plastic deformation and maintain automated handling interface tolerances.
- Structural Steel Selection: High-tensile cold-rolled steel grades such as Q235B and Q355B (Yield Strength up to $355\text{ MPa}$) are continuous roll-formed into complex upright profiles with 9 to 13 rib-bend cross-sections to maximize section modulus ($Z_x$) and moment of inertia ($I_x$).
- Moment Connection Rigidity: Beam-to-upright connector hooks are laser-cut with 4-to-5 tooth engagement lugs, secured via safety locking pins capable of resisting upward vertical dislodging forces in excess of 5.0 kN.
Structural Load Analysis
Advanced Finite Element Analysis (FEA) models stress concentration across upright column slots, beam connectors, and floor anchor plates under full dynamic impact loads.
Seismic Resistance Engineering
Configured for Zone 4 seismic regions using heavy-duty diagonal back bracing, oversized base plates ($200\times 200\times 10\text{mm}$), and chemical expansion anchor bolts.
5-Layer Surface Treatment
Automated degreasing, zinc-phosphate pre-treatment, and high-temperature thermosetting epoxy-polyester powder coating for maximum corrosion protection.
2. Comparative Engineering Matrix: Standard vs. Oversized Racking Architecture
Procurement directors must evaluate physical properties and structural tolerances when specifying warehouse storage platforms. Below is an engineering comparison matrix developed by our senior technical staff:
| Specification Parameter | Standard Selective Pallet Rack | Heavy-Duty Oversized Pallet Rack | Structural Steel Heavy Rack |
|---|---|---|---|
| Typical Bay Length (Clear Span) | 2300mm – 2700mm | 3300mm – 4500mm | Custom up to 6000mm |
| Frame Depth Range | 800mm – 1100mm | 1200mm – 1800mm | Up to 2400mm |
| Payload Capacity per Level | 1,000kg – 2,500kg | 3,000kg – 5,500kg | 6,000kg – 10,000kg+ |
| Upright Profile Gauge | 1.8mm – 2.0mm Cold-rolled | 2.3mm – 3.0mm Formed Steel | Hot-rolled Structural Channels (H-Beam) |
| Decking Support Options | Standard Wire Mesh / Particle Board | Heavy-Duty Flanged Steel Bars / Ribbed Decks | Structural Steel Beams & Grating |
| Forklift Aisle Interface | Counterbalance / Reach Truck (3.0m - 3.5m) | Specialized Heavy Forklift / VNA (3.5m - 4.2m) | Heavy Industrial Overhead Crane / Custom Stacker |
3. Why Sourcing from Top China Factories Yields Unmatched Competitive Advantage
China has evolved into the global epicenter for industrial racking production, combining complete upstream metallurgical supply chains with highly automated roll-forming and powder-coating technologies. Sourcing directly from verified OEM/ODM manufacturers like Rackzzszn Storage Equipment Co., Ltd. provides critical procurement advantages:
- Upstream Raw Material Scale: Located in South China's manufacturing heartland, direct procurement of prime coils from top-tier steel mills ensures traceable material test certificates (MTC) according to EN 10204 3.1.
- Advanced Manufacturing Automation: Utilizing South China's longest continuous automated powder-coating spray line (over 500 meters in length), processing up to 3 colors in a single continuous pass without cross-contamination.
- Custom Structural Customization: In-house R&D teams deliver complete 2D layout drawings, 3D structural renders, and FEA stress calculation reports within 48 hours of site survey submission.
- Export Container Optimization: Dedicated packing lines employ specialized steel cradles, protective cardboard corners, and heavy plastic wrapping to ensure zero transport damage during trans-oceanic shipping.
Industry Horizon
Future Procurement Trends in Oversized Pallet Storage
Navigating the transition toward smart automation, carbon-neutral supply chains, and dynamic modular warehousing.
1. Convergence with Smart Heavy ASRS
Traditional manual forklifts are rapidly giving way to high-load Automated Storage and Retrieval Systems (ASRS) and heavy-payload AGVs/AMRs. Future oversized racks are built with millimeter-level beam deflection tolerances, integrated laser positioning targets, and rack-mounted sensor networks to allow seamless robotic stacker crane operation.
2. Sustainable & Green Powder Coatings
Global environmental mandates are driving buyers toward lead-free, non-toxic, and zero-VOC electrostatic powder finishes. Next-generation factories utilize closed-loop water recovery systems during chemical washing and low-bake curing resins that reduce manufacturing carbon footprints by up to 25%.
3. Modular & Scalable Structural Layouts
Volatile demand cycles require warehouse racking that can adapt on-demand. Modern oversized systems feature boltless, fully adjustable beam pitch designs (50mm or 75mm pattern adjustments) paired with modular catwalk platform extensions, allowing warehouses to transform pallet bays into multi-tier picking floors without structural reconstruction.
Manufacturing Powerhouse
Why Enterprise Buyers Choose Rackzzszn
Combining 23+ years of engineering mastery with South China's leading production plant.
State-of-the-Art 20,000m² Plant
Equipped with over 80 automated machinery lines including CNC punching presses, high-precision continuous cold roll-forming machines, automatic robotic welding arms, and precision laser metal cutters. Our facility processes over 50,000 tons of high-strength structural steel annually.
Full Lifecycle Service & Global Export
From initial site survey and 3D space optimization to overseas shipping, installation guides, and certified annual safety inspections. Having exported over 1,000 containers annually to 60+ countries, our technical team ensures frictionless clearance and installation worldwide.
Technical Support & Guidance
Frequently Asked Procurement Questions (FAQ)
Direct answers from our senior warehouse engineering team regarding design, safety, freight, and installation.
What critical data is required to design a custom oversized pallet racking system? ↓
To deliver an accurate 2D/3D layout design and structural load calculation, our engineering team requires:
- Exact pallet dimensions including load overhang (Length × Width × Height).
- Maximum unit load weight (Gross weight per pallet position).
- Warehouse floor plan drawing detailing clear height, column spacing, building expansion joints, and fire shutter routes.
- Forklift specifications (Minimum aisle clearance, max lift height, and mast height).
- Operating environment conditions (Ambient, Cold Store down to -30°C, or Outdoor anti-corrosion requirements).
How do you calculate safety factors for heavy-duty oversized racking bays? ↓
Our engineering designs apply a minimum structural safety factor of 1.5 to 1.65 in compliance with FEM 10.2.02 and ANSI MH16.1 guidelines. This means a racking beam level rated for 4,000kg uniform load is physically tested to resist yield stress up to 6,000kg–6,600kg without permanent structural collapse. FEA software simulates dynamic impact during rapid forklift placing and seismic base acceleration.
What is the difference between Roll-Formed Steel and Hot-Rolled Structural Steel for oversized racks? ↓
Roll-Formed Steel is manufactured by passing cold coil steel through multiple rollers to form high-strength ribbed profiles (Q235B/Q355B). It offers an excellent strength-to-weight ratio, easy level adjustability, and lower cost.
Hot-Rolled Structural Steel (H-Beam / Structural Channel) is cast hot, providing thick, solid steel members. It is selected for extreme abuse environments, heavy equipment manufacturing plants, outdoor cantilever systems, and structural applications vulnerable to constant forklift impact.
Hot-Rolled Structural Steel (H-Beam / Structural Channel) is cast hot, providing thick, solid steel members. It is selected for extreme abuse environments, heavy equipment manufacturing plants, outdoor cantilever systems, and structural applications vulnerable to constant forklift impact.
Can oversized pallet racks be installed in low-temperature cold storage facilities? ↓
Yes. Low-temperature environments cause standard low-grade carbon steel to become brittle. We specify low-temperature ductile steel grades (such as Q355D/E) combined with specialized cold-resistant epoxy powder coatings or hot-dip galvanizing (HDG according to ISO 1461) to prevent embrittlement, rusting, and flaking in sub-zero freezers operating at -25°C to -30°C.
How are oversized heavy racking components protected during sea freight container transport? ↓
Export protection is critical. Upright frames and beams are bundled using high-tensile steel strapping over heavy wooden skids. Critical connector lugs and painted surfaces are wrapped with multi-layer bubble film and corrugated corner guards. Small hardware (bolts, safety pins, footplates) are sealed in reinforced wooden cases to guarantee zero loss or ocean moisture corrosion during transit.
Do you provide overseas installation support and structural engineering certification? ↓
Yes. Every project includes comprehensive 3D assembly blueprints, step-by-step CAD elevation guides, and video instructions. For large-scale distribution centers or multi-tier mezzanine installations, Rackzzszn can dispatch senior installation engineers or certified project managers on-site to direct local assembly teams and perform final safety load sign-offs.
Optimize Your High-Bay Warehouse Infrastructure Today
Consult with our lead engineering experts for a complimentary site layout design, FEA structural calculation, and factory-direct quotation within 24 hours.
