Featured Space-Efficient Storage Equipment
Explore engineered pallet racking systems designed for maximized volumetric density, operational safety, and rapid inventory throughput.
FIFO High Efficient Warehouse Storage Gravity Pallet Flow Racks Roller Rack
Automatic stock rotation using gravity-driven roller beds. Reduces aisle footprint by up to 60% compared to standard selective racking.
Pallet Racking Heavy Duty Metallic Customizable Rack Teardrop Style Upright Frames
North American standard teardrop connection design. Height customizable from 2m to 3.6m+ with high-strength wire mesh decking.
Seismic Resistant Industrial Warehouse Bulk Stock Beam Racking Selective Racking 5-12 Levels
Engineered for high seismic zones with structural bracing. Accommodates 5 to 12 vertical storage levels with 100% SKU accessibility.

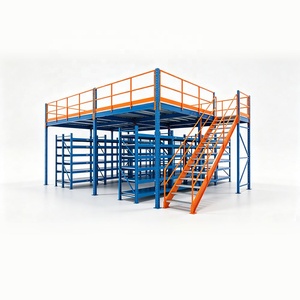

Heavy Duty Multi-Layer Powder Coated Modular Battery Racks & Stackable Mezzanines
Corrosion-resistant epoxy electrostatic finish. Heavy load bearing structural design tailored for chemical, battery, and dense manufacturing storage.
2024 Competitive Advantage Pallet Racking Storage Heavy Duty Industrial Shelf System
Precision cold-rolled steel profile construction optimized for high cost-performance ratio and long cycle durability in heavy logistics centers.

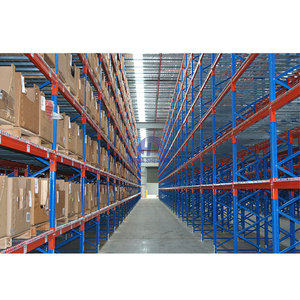

High Performance Heavy Duty Logistics Shelves Stocking Warehouse Reticulated Pallet Rack
Heavy-duty reticulated structural frame capable of supporting intense point loads up to 4,500 kg per beam level under continuous forklift operation.
Galvanized Metal Steel Adjustable Industrial Pallet Rack Wire Deck Divider Systems
Hot-dip galvanized anti-corrosion mesh decking and step beam dividers. Complies with ANSI/RMI MH16.1 fire safety standards for overhead sprinklers.
Pteris ASRS Shuttles Pallet Racking System Smart Warehouse Forklift Automation
Automated Radio Shuttle storage equipment designed for high-bay warehousing, maximizing cube storage density via smart radio control automation.
Architectural Space Efficiency in Modern Industrial Storage
An in-depth analysis of structural load dynamics, footprint minimization, and volumetric footprint optimization for global logistics managers.
As global industrial real estate costs escalate, modern logistics managers and supply chain directors can no longer afford unutilized vertical airspace. Traditional static storage models often waste up to 45% of available cubic volume due to wide aisle configurations and inefficient floor-to-ceiling ratios. Achieving true space efficiency requires an integrated engineering approach that balances structural deflection limits, forklift aisle geometry, and inventory rotation velocity.
1. Mathematical Volumetric Density Optimization
The core objective of space-efficient pallet racking is maximizing the Storage Density Index (SDI), defined as the ratio of usable pallet positions to total gross building footprint. Standard Selective Pallet Racks typically yield an SDI of 35% to 40% due to required 3.5m to 4.2m counterbalanced forklift aisles. By transitioning to high-density systems—such as Drive-In, Push-Back, Gravity Flow, or Automated Storage and Retrieval Systems (ASRS) Radio Shuttles—engineers can increase SDI to upwards of 75% to 85%.
| Racking System Type | Floor Space Utilization | SKU Accessibility | Optimal Handling Equipment | Typical Load Capacity |
|---|---|---|---|---|
| Standard Selective Rack | 35% - 40% | 100% Direct | Standard Reach / Counterbalance | 1,000 - 4,000 kg / level |
| Drive-In / Drive-Through | 65% - 75% | 20% (LIFO / FIFO) | Reach Truck / Specialized Forklift | 1,000 - 2,000 kg / pallet |
| Gravity Pallet Flow | 70% - 80% | Strict FIFO | Standard Reach Truck | 500 - 1,500 kg / roller bay |
| ASRS Radio Shuttle | up to 85% | Automated Batch FIFO/LIFO | Automated Shuttle + Forklift | 1,500 kg / shuttle unit |
| Mezzanine Shelving Platform | 200% - 300% (Multi-Tier) | 100% Hand-Loaded | Manual / Goods Lift / Conveyor | 300 - 1,000 kg / sq.m floor |
2. Metallurgical Integrity & Structural Engineering Standards
Space efficiency must never compromise structural safety. High-density storage racks undergo severe dynamic load distributions, especially during fast-paced forklift placement and seismic stress events. Premium pallet racking components utilize high-tensile cold-rolled steel (grades Q235B and Q355B) precision-formed into multi-flanged upright profiles.
Key structural engineering considerations engineered into our manufacturing lines include:
- Structural Deflection Coefficient: Beams engineered to maintain deflection below
L/200under full maximum rated capacity, compliant with ANSI/RMI MH16.1 and FEM 10.2.02 codes. - Safety Lock Connectors: Automatic spring-loaded safety locks preventing accidental beam dislodgement caused by upward forklift boom impact.
- Seismic Ductility Bracing: Custom-designed baseplates and diagonal bracing matrices optimized for regional seismic zone accelerations (Zone 1 through Zone 4).
- Electrostatic Powder Deposition: Industrial epoxy powder coatings cured at 200°C for exceptional impact, scratch, and corrosion resistance—vital for humid or cold-storage environments.
High-Density Storage
Maximizes cubic storage per square meter by narrowing aisles and expanding vertical beam elevations up to 12+ meters safely.
Certificated Safety
Strict structural adherence to RMI, FEM, and ISO international parameters, featuring integrated safety pins and heavy column protectors.
Custom Modular Layouts
Tailor-engineered beam spans, pitch height adjustments (50mm / 75mm), and wire mesh accessories to match exact forklift turning radiuses.
Future Procurement Trends in Industrial Storage Systems
Key technological shifts reshaping warehouse equipment selection, automation integration, and sustainable supply chain infrastructure.
1. Convergence of Pallet Racking with Autonomous Mobile Robots (AMRs)
The traditional boundary between static racking and material handling equipment is rapidly dissolving. Future procurement strategy heavily prioritizes rack frames engineered for seamless AMR, AGV, and Radio Shuttle interaction. Automated Pallet Shuttles inside high-density channels significantly boost picking speed while virtually eliminating forklift impact damage to structural uprights.
2. Sustainability & Low-Carbon Steel Manufacturing
Global procurement teams now evaluate the carbon footprint of structural storage products. Modern China-based top manufacturers are adopting eco-friendly raw material sourcing, closed-loop water recovery during pre-treatment, and zero-VOC electrostatic powder coating technologies to meet carbon-neutral supply chain targets demanded by European and North American buyers.
3. Cold Chain Storage Expansion & Metallurgy Optimization
With global pharmaceutical and frozen food logistics surging, cold-storage racking demand is outstripping ambient storage. Future rack procurement requires specialized metallurgy—such as low-temperature tough steel alloys and heavy-duty galvanized coatings—capable of resisting structural embrittlement at operating temperatures as low as -30°C.
4. Modular Multi-Tier Mezzanine Platforms for E-Commerce Fulfillment
E-commerce order fulfillment requires high-density piece picking rather than full-pallet movements. The industry trend heavily favors integrated multi-tier catwalk shelving and mezzanine rack platforms that convert overhead vertical volume into multiple manual picking levels, drastically reducing walking distances for warehouse personnel.
Why Partner with Our Manufacturing Facility in China
Over two decades of precision steel fabrication, comprehensive engineering services, and verified export capability.
Rackzzszn Storage Equipment Co., Ltd. operates as one of South China’s primary industrial racking manufacturers. Spanning a 20,000 m² state-of-the-art production facility, our factory processes in excess of 50,000 tons of high-grade steel annually. We provide end-to-end storage solutions—from initial site survey and CAD layout design to export loading, custom fabrication, and international installation guidance.
23+ Years Industrial Experience
Established manufacturing history with a deep understanding of international building standards, warehouse logistics flows, and high-load structural design.
South China's Longest Coating Line
Equipped with an advanced automated continuous powder coating line, allowing multi-color application in a single pass with exceptional paint adhesion and longevity.
Strict 5-Step Quality Control
Raw coil testing, high-precision roll forming, robotic welding inspection, coating micron thickness checks, and final pre-shipment assembly verification.
End-to-End International Project Lifecycle Support
Ordering pallet racking internationally requires more than just purchasing steel. Our engineering team acts as your full-service logistics infrastructure partner:
- On-Site Measurement & CAD Layout: Preventing catastrophic installation failures caused by ceiling truss clearances, building column offsets, or fire suppression pipe obstructions.
- SGS Verified Factory Audits: Full transparency with international compliance certifications, raw material heat certificates, and structural calculation reports.
- Container Loading Optimization: Custom export packaging designed to maximize shipping container volume without scratching powder-coated surfaces or damaging beam connectors during ocean transit.
- Remote & On-Site Installation Guidance: Detailed 3D assembly diagrams, video guides, and on-site engineering supervision available for large-scale overseas projects.
Procurement FAQ: Pallet Racks & Storage Systems
Clear engineering and commercial answers to frequent queries from global buyers, facility managers, and logistics contractors.
Do you design custom racking layouts for my specific warehouse dimensions?
Why is on-site measurement crucial before finalizing a pallet rack order?
Which racking configuration is recommended for long goods like pipes, timber, or aluminum extrusions?
Can your industrial racking systems be deployed in cold storage and freezer facilities?
What installation support services do you provide for overseas container orders?
What steel standards and safety codes do your pallet racks comply with?
Maximize Your Warehouse Storage Density Today
Send us your warehouse dimensions, required load capacities, or pallet specifications. Our senior project engineers will deliver a free layout design and factory-direct quote within 24 hours.
