Heavy Duty Selective Pallet Racking System Adjustable Beam Rack
100% pallet selectivity with heavy load capacity up to 4,500kg per level. Fully adjustable beam heights for industrial factory storage.
Inquire Now
Enterprise Product Line
Automated & Heavy-Duty Storage Solutions
Engineered to exact international structural standards (FEM, CE, ISO). Browse our flagship pallet rack systems, stackers, and automated AS/RS hardware manufactured in Guangzhou, China.
Runtx Brand Self Loading Electric Hand Pallet Stacker
Autonomous self-lifting electric pallet stacker designed for seamless vehicle loading, warehouse material handling, and tight aisles.
Inquire Now
Industrial Pallet Racking Freestanding Metal Shelving 1000KG
Corrosion-protected freestanding structural stacking racks with modular 1000kg load capacity, designed for harsh manufacturing zones.
Inquire Now
Pallet Multilevel Racking Heavy Duty Warehouse Storage Shelf
High-bay multi-level rack storage architecture. Maximizes vertical height utilization for distribution hubs and 3PL warehouses.
Inquire Now
SHUNLI SL-AS004 Customized Heavy Duty Automated AS&RS Rack
High-precision AS/RS alloy steel racking framework. Supports automated stacker cranes with 500kg-1500kg payload capacity per cell.
Inquire Now
Factory Price Steel Selective Heavy Duty Storage Racking
Direct OEM wholesale selective pallet rack manufactured with premium Q355B cold-rolled steel and epoxy powder-coat finishing.
Inquire Now

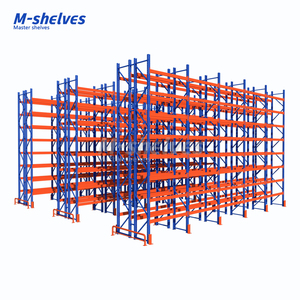

Customized Heavy Duty Pallet Rack Multi-Layers 500-3000kg
Versatile anti-corrosion multi-tier warehouse shelves engineered for heavy industrial equipment, automotive parts, and bulk goods.
Inquire Now
ISO CE Certified Heavy Duty Steel Mezzanine Floor Racking System
Multi-level structural storage platform doubling or tripling floor area. Integrated catwalks, staircases, and safety handrails included.
Inquire Now
Manufacturing Excellence
Why Global Enterprises Partner With Our Factory
Rackzzszn Storage Equipment Co., Ltd. brings 23+ years of structural engineering expertise, operating one of South China's most advanced warehouse storage manufacturing hubs.
20,000m² Dedicated Production Facility
Equipped with over 80 automated punching machines, cold-roll forming lines, laser cutters, and robotic welding stations. Over 80% of our workforce holds senior steel fabrication certifications.
South China's Longest Powder Coating Line
Our state-of-the-art continuous electrostatic powder coating line allows 3-color simultaneous spraying. Delivers superior corrosion protection, scratch resistance, and uniform finish compliant with ISO 9001 & SGS standards.
End-to-End Turnkey Engineering
From initial site survey, floor slab analysis, and 3D CAD/BIM layout design to custom structural fabrication, container loading optimization, and international installation guidance.
Trusted By Global Fortune 500 & Logistics Giants
Technical Whitepaper
Engineering Architecture of Modern Automated Pallet Storage Systems
A comprehensive analysis on structural integrity, AS/RS integration, radio shuttle automation, and thermal cold-chain storage optimization.
As modern supply chains demand higher throughput, zero-error order fulfillment, and maximum volumetric efficiency, traditional static pallet racking systems are rapidly evolving into intelligent, high-density Automated Pallet Storage Systems (APSS). As a premier Chinese manufacturer, Rackzzszn engineers automated infrastructure that bridges high-strength cold-formed steel manufacturing with sophisticated robotics, WMS (Warehouse Management System), and WCS (Warehouse Control System) software interfaces.
1. AS/RS Crane vs. 4-Way Radio Shuttle Storage Architecture
When selecting an automated storage framework, enterprise buyers must balance structural capital expenditure (CapEx) against operational throughput dynamics (OpEx). The table below highlights key architectural differences engineered in our factory:
| Engineering Attribute | AS/RS Stacker Crane System | 4-Way Radio Shuttle Matrix | Heavy-Duty Selective Racking |
|---|---|---|---|
| Height Capability | Up to 45 Meters (High-Bay) | Up to 25 Meters | Up to 12 Meters (Forklift limit) |
| Volumetric Efficiency | 85% - 92% (Narrow aisle) | 90% - 95% (Ultra-high density) | 40% - 50% (Aisle heavy) |
| Throughput Speed | Very High (Dual-cycle crane) | High (Distributed shuttles) | Moderate (Manual forklift) |
| Steel Grade Standard | Q355B / High-Tensile Structural Alloy | Q235B / Q355B Cold Rolled Steel | Q235B Cold Rolled Steel |
| SKU Management | High Selectivity (Direct retrieval) | FIFO / LIFO Batch Management | 100% Direct Selectivity |
| Cold Storage Performance | Excellent (-30°C certified) | Outstanding (-25°C Lithium battery) | Standard ambient to cold |
Engineering Deflection Tolerance Insight (FEM 10.2.02 Standard)
Unlike standard pallet racking where beam deflection limits are set at L/200, automated AS/RS systems manufactured by Rackzzszn are engineered to strict L/400 structural deflection tolerances. This prevents optical sensor misalignments for stacker crane forks and autonomous AGVs during high-speed pallet retrieval.
2. Structural Steel Material Integrity & Anti-Corrosion Finishing
The structural longevity of automated racking relies heavily on steel alloy selection and chemical surface preparation. In our 20,000m² factory, structural uprights undergo a 9-stage automated pre-treatment cleaning cycle (degreasing, phosphating, ambient rinsing) before receiving electrostatic epoxy-polyester powder coating:
- Cold-Formed High-Yield Upright Profiles: Engineered with 10–13 folding points to enhance torsional rigidity under vertical loads reaching 30,000kg per frame bay.
- Adjustable Interlocking Beams: Fabricated with welded 3 or 4-hook heavy-duty connectors, complete with automatic safety locks to prevent accidental forklift dislodgement.
- Galvanized Finish Options: Hot-dipped galvanization (HDG) exceeding 60–80 microns coating thickness, ideal for high-humidity, chemical processing, or cold storage facilities.
Industry Foresight
Future Procurement Trends in Automated Pallet Storage
Key technological shifts global procurement directors, warehouse operational heads, and supply chain architects must evaluate for 2025–2030 facility planning.
1. Modular "Plug-and-Play" Radio Shuttle Arrays
Global buyers are shifting away from monolithic single-purpose automated systems towards modular 4-way radio shuttle systems. These allow scaling capacity by adding individual shuttle units without altering fixed steel racking infrastructure.
2. AGV/AMR Co-Working Rack Grid Interfaces
Future racking designs feature integrated lower-tier guide channels, laser-reflective positioning targets, and floor-level docking stations specifically engineered for Autonomous Mobile Robots (AMRs) and automated forklifts.
3. Extreme Cold Chain Automated Optimization
With expanding global pharmaceutical and frozen food logistics, automated pallet racks utilize low-temperature structural steel alloys (impact tested down to -30°C) and moisture-resistant lithium battery shuttle drive systems.
4. Structural IoT Health & Deflection Sensors
Next-generation automated racks incorporate wireless IoT vibration and tilt sensors embedded directly inside critical beam nodes to detect forklift impact damage or structural overload in real-time before failure occurs.
5. Carbon-Neutral Steel Manufacturing
Overseas buyers (especially across Europe & North America) prioritize supply partners implementing recycled steel scrap content, eco-friendly solvent-free powder coatings, and solar-powered factory production lines.
6. Total Cost of Ownership (TCO) Procurement
Purchasing decisions are rapidly evolving from initial price-per-ton metrics toward 20-year TCO evaluations—factoring in structural steel fatigue, powder coat warranty, component interchangeability, and maintenance downtime.
Procurement Guidance
Automated Pallet Storage B2B FAQ
Detailed technical and commercial answers to common questions asked by global warehouse engineering teams and wholesale buyers.
Q1: What floor concrete slab specifications are required before installing an Automated AS/RS Pallet System?
High-bay AS/RS systems require strict floor flatness and levelness standards (typically DIN 15185 or ACI F-min 100 specifications). The concrete slab must generally provide a minimum compressive strength of 30 MPa to 35 MPa, with slab thickness ranging from 200mm to 350mm depending on single-point column loads. Our engineering team provides detailed foundation anchor load diagrams prior to production.
Q2: Can your automated pallet storage systems be integrated with third-party WMS software?
Yes. Rackzzszn automated racking infrastructure and shuttle control systems (WCS) are built on open API protocols (REST, Modbus, TCP/IP). They connect seamlessly with leading enterprise WMS platforms including SAP, Oracle, Manhattan Associates, or proprietary customer warehouse management software.
Q3: What safety compliance and quality certifications do your racking products carry?
All structural pallet racks manufactured in our Guangzhou factory comply strictly with European FEM 10.2.02 standards, American RMI (Rack Manufacturers Institute) specs, and ISO 9001:2015 quality management systems. Furthermore, our manufacturing facility undergoes annual auditing by SGS. CE certificates are provided for all electrical stacker and shuttle components.
Q4: Why is an accurate site investigation critical before finalizing automated rack layout designs?
Architectural site drawings frequently contain minor dimensional discrepancies regarding building column positions, overhead lighting conduits, roof truss clearance, or fire sprinkler mainlines. In high-density automated racking, a deviation of just 20mm can cause mechanical collision with automated stacker cranes or block emergency egress routes. We mandate laser-verified site surveys or 3D point-cloud scans before structural manufacturing begins.
Q5: What is the typical lead time for custom wholesale racking production and export delivery?
Standard selective pallet rack orders ship within 14 to 21 days following CAD drawing approval. Complex automated AS/RS or radio shuttle systems require 30 to 45 days, encompassing structural fabrication, multi-stage powder coating, electrical shuttle debugging, and export bundle packaging designed for containerized ocean freight.
Q6: How does Rackzzszn handle overseas installation and engineering commissioning?
We provide a complete installation package including 3D assembly models, detailed CAD erection drawings, bolt torque specifications, and step-by-step video guides. For major enterprise projects, we dispatch certified installation supervisors directly to your project site to direct local assembly teams and perform load testing.
Request Your Custom Automated Racking Engineering & Quote
Send us your warehouse floor plan, ceiling clear height, pallet dimensions, and max load weight per pallet. Our senior structural engineers will generate a complimentary 2D/3D storage layout within 24 hours.
