High-Capacity Wholesale Pallet Racking Systems
Precision-engineered using high-tensile cold-rolled Q235B/Q355B structural steel. Custom pitch, column profiles, and load configurations tested to FEM and RMI standards.
100% Selective

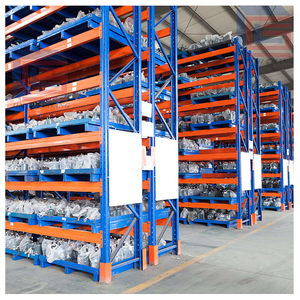

Adjustable Heavy-Duty Selective Pallet Rack System
- Up to 4,500 KG per beam level
- 75mm / 50mm beam height adjustability
- Direct 100% SKU access for forklifts
Heavy Payload
4000KG Load Capacity Adjustable Beam Storage Racking
- Heavy box/C-beam structural profiles
- Safety lock pins prevent accidental beam dislodgement
- Epoxy powder-coated anti-scratch finish
Industrial Grade

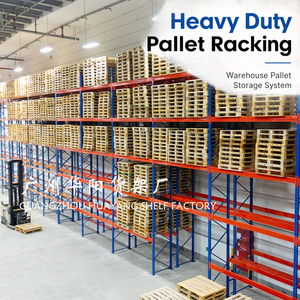

3000KG/Level Industrial Steel Storage Racking Solution
- Optimized vertical column frame sectioning
- Custom frame depths (800mm to 1200mm)
- Anchor bolts and leveling plates included
Automated High-Density

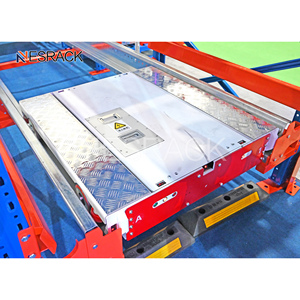

Automated Radio Pallet Shuttle Racking System
- Deep-lane automated cart storage
- Maximizes cube space up to 85%
- Seamless FIFO and LIFO operational modes
Modular Stacking

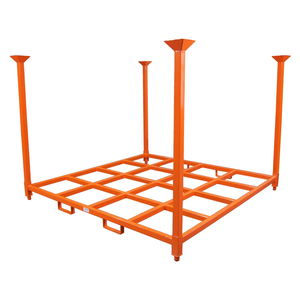

Custom Industrial Metal Pallet & Nestable Stacking Rack
- Portable & stackable up to 4-5 units high
- Collapsible design saves empty return freight
- Galvanized or painted steel structures
Q235B Certified

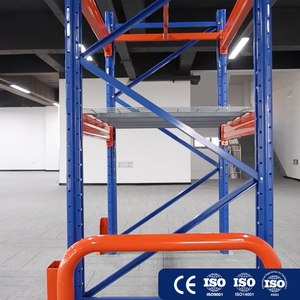

Custom Q235B Structural Steel Pallet Storage Matrix
- Rigid seismic bracing engineering
- Customized row spacers & frame protectors
- Tailored for heavy industrial logistics
Export Bundled

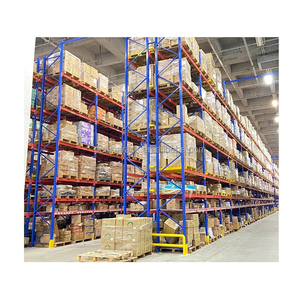

Export-Standard Heavy Duty Steel Pallet Racking
- Flat-pack container-optimized bundling
- Rust-inhibiting protective film wrap
- Complete export compliance documentation
Multi-Tier Ready

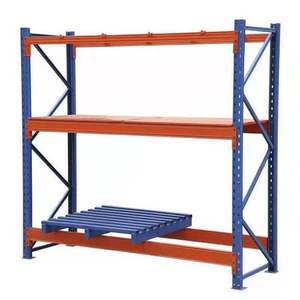

Custom Adjustable Factory & Warehouse Pallet Shelving
- Supports steel wire decking or timber panels
- Versatile picking & palletized dual-use
- Modular expandable frame design
Why Supply Chain Leaders Source From Our China Factory
As a direct manufacturer with 23+ years of OEM/ODM industrial racking experience, we bridge high-grade steel metallurgy with certified structural engineering to lower total cost of ownership (TCO).
Precision Steel Engineering
We source prime cold-rolled steel coils from top-tier mills (Baosteel/Shougang). Profile rolling tolerances are strictly kept within ±0.5mm, ensuring exact beam-to-column locking connection.
South China's Longest Spray Line
Equipped with a state-of-the-art automatic 3-color powder coating line. Our 8-stage chemical pre-treatment ensures salt-spray resistance up to 500 hours without blistering or peeling.
Full Building & Load Verification
Our structural engineers perform FEA (Finite Element Analysis) for seismic zones and extreme payloads, matching local building codes including ANSI MH16.1, FEM 10.2.02, and AS4084.
Selecting the Right Wholesale Pallet Racking System
Compare high-density storage configurations based on floor area utilization, access speed, initial investment, and material handling equipment (MHE) compatibility.
| Racking Architecture | Storage Density | SKU Access Mode | Forklift Aisle Width | Optimal Application | Structural Steel Grade |
|---|---|---|---|---|---|
| Selective Pallet Rack | Medium (40-50%) | 100% Immediate Access | 3.0m – 3.8m (Standard) | High SKU variety, fast turnover FMCG | Cold-Rolled Q235B / Q355B |
| Drive-In / Drive-Thru | High (75-85%) | LIFO / FIFO Batched | Drive-in Lanes (1.6m-3.2m) | Cold storage, bulk homogenous goods | High-Tensile Structural Q235B |
| Radio Shuttle System | Ultra-High (85-90%) | Automated FIFO / LIFO | Main Transfer Aisle Only | Automated warehouses, beverage logistics | Precision Roll-Formed Q355B |
| Gravity Flow Rack | High (70-80%) | Strict FIFO (Gravity Roller) | Loading & Unloading Aisles | Perishable items, pharmaceutical hubs | Heavy Duty Profile Steel |
| Cantilever Racking | Variable (Long items) | 100% Frontal Access | Side/Front Loader Aisle | Timber, steel pipes, aluminum profiles | Hot-Rolled H-Beam / Q235B |
| Mezzanine Platform Rack | Maximum Vertical | Manual / Conveyor / Lift | Floor-dependent Layout | E-commerce picking, spare parts assembly | Structural Steel Beam & Deck |
Custom Engineering Design & 3D Layout Simulation
Every warehouse facility presents unique challenges regarding ceiling clear heights, floor slab load capacities, column grids, fire sprinkler clearance, and forklift turning radii. Our engineering department delivers full CAD layouts and 3D stress-point simulations prior to manufacturing.
- Site-Specific Measurement Verification: Preventing installation delays caused by minor building deviations (e.g., 2cm column displacement).
- Seismic & Deflection Calculation: Ensuring frame deflections stay safely within L/200 limits under max capacity.
- MHE Compatibility Matching: Aligning aisle dimensions with Counterbalance, Reach Trucks, VNA, or AGVs.
Cold Chain & Low-Temperature Structural Racking
Cold storage facilities demand specialized structural steel handling. Standard steel exhibits brittle fracture risks when operated in sub-zero environments (-25°C to -30°C). We supply specialized cold-room pallet racking using targeted steel alloys and powder formulas.
- Charpy V-Notch Tested Steel: Guarantees impact toughness without structural embrittlement.
- High-Condensation Corrosion Coatings: Special zinc-rich epoxy primers prevent rust around anchor points.
- Space Optimization for Energy Savings: High-density drive-in and shuttle systems reduce refrigerated air volume per pallet slot.
Future Procurement & Technological Shifts in Pallet Racking
Analyzing global supply chain evolution, automation integration, and sustainable manufacturing standards for strategic B2B equipment sourcing.
1. Convergence with AGV & Autonomous Mobile Robots (AMR)
Traditional static storage is rapidly adapting to robotic automation. Future-ready custom pallet racking systems are now designed with precise guide rails, floor reflectors, and enlarged vertical tolerances to facilitate AMR picking. Factory buyers are increasingly prioritizing racking with automated shuttle channels that connect directly to WMS (Warehouse Management Systems).
2. Green Steel & Zero-VOC Eco-Manufacturing
ESG compliance is shifting procurement criteria across Europe and North America. As a responsible China exporter, our factory utilizes low-carbon recycled steel content alongside energy-efficient electrostatic powder coating loops. Zero VOC emissions, solvent-free coating, and fully recyclable steel profiles help global clients meet corporate decarbonization benchmarks.
3. Modular Micro-Fulfillment & High-Bay Mezzanines
With urban industrial land costs escalating globally, logistics operators are converting standard warehouses into multi-tier high-bay picking environments. Sourcing modular upright frames allows logistics centers to expand vertically from 6 meters to 14+ meters without complete system replacement, driving down long-term expansion CAPEX.
4. IoT Structural Health Monitoring & Safety Sensors
Accidental forklift impacts remain the single biggest threat to warehouse safety. Progressive supply chain buyers are adopting smart rack protector columns fitted with wireless impact sensors. These micro-sensors alert warehouse managers immediately when structural uprights experience G-force impacts exceeding structural design limits.
6-Step Factory Quality Control & Export Protocol
From steel coil inspection to overseas container packing, every production phase is monitored by certified quality engineers.
Spectrometer Raw Material Audit
Every batch of steel coil undergoes chemical composition analysis and tensile strength testing to guarantee compliance with Q235B / Q355B yield standards.
Automatic Continuous Cold Roll-Forming
Multi-station automated rolling mills shape column uprights and beams with zero stress fractures, ensuring structural pitch accuracy within ±0.3mm.
Robotic MIG Welding
Beam connectors and baseplates are joined using automated robotic welding arms, guaranteeing 100% full weld penetration without human inconsistency.
Automated Pre-Treatment & Powder Spray
An 8-tank acid washing, phosphating, and deionized water rinsing sequence precedes automatic electrostatic powder spraying for superior adhesion.
Full-Scale Load & Deflection Test
Randomly selected beam levels and frame assemblies undergo load cell weight testing to verify safety factors (typically 1.55:1 structural safety ratio).
Export-Optimized Bundle Packing
Frames and beams are bound with plastic steel strapping, protected by corrugated corner guards and film wrapping to prevent ocean transit damage.
Frequently Asked Questions by Global Buyers
Engineering, customization, logistics, and compliance answers from our technical export engineering team.
How do I determine the correct load capacity and beam profile for my warehouse?
+
Can your factory engineer custom racking dimensions to fit existing building columns?
+
What international safety and manufacturing standards do your racks comply with?
+
What is the typical lead time for a wholesale container order from China?
+
How are installation and assembly handled for overseas buyers?
+
How do you protect racking components against corrosion during ocean transport?
+
Ready to Optimize Your Warehouse Storage Capacity?
Send us your building layout, ceiling height, and pallet load requirements. Our senior engineering team will provide a complimentary 2D/3D racking design layout and competitive direct-factory quote within 24 hours.
