Technical Whitepaper & Sourcing Guide
Next-Generation Warehouse Automation & High-Density Storage Solutions
In modern global logistics and smart manufacturing, optimizing volumetric storage capacity while accelerating throughput velocity has become a critical operational metric. As a pioneer in heavy-duty logistics infrastructure, Rackzzszn Storage Equipment Co., Ltd. (Maobang) operates a state-of-the-art 20,000 m² manufacturing ecosystem in South China. Backed by 23+ years of structural engineering expertise, an annual processing capacity exceeding 50,000 tons of structural steel, and automated roll-forming production lines, we engineer turnkey industrial pallet storage systems tailored to the rigorous demands of global supply chains.
From fully automated high-bay Automated Storage and Retrieval Systems (ASRS) featuring OPC UA integration to four-way radio shuttle racking and robotic palletizing systems, our engineered solutions optimize spatial utilization by up to 85% while reducing manual labor overhead. Serving enterprise clients across 60+ countries, our manufacturing processes undergo rigorous SGS-verified quality control, adhering strictly to FEM 10.2.02, EN 15635, and RMI structural standards.

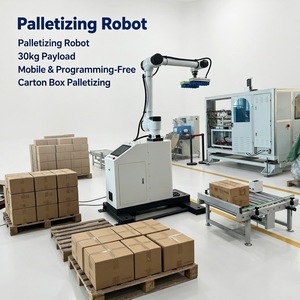

Featured Intelligent Pallet Storage & Robotic Equipment
Explore our certified fleet of intelligent warehouse automation equipment, radio shuttle systems, and robotic handling solutions engineered for enterprise distribution centers.
Architectural Engineering: ASRS, Four-Way Shuttles & Industry 4.0 Integration
Selecting a wholesale intelligent pallet storage system from China manufacturing hubs requires a granular understanding of structural engineering, mechanical tolerances, and software interoperability. Modern automated warehouses rely on three core technological pillars:
1. Four-Way Radio Shuttle Mechanics
Unlike legacy 2-way shuttle buggies restricted to a single lane, advanced 4-way intelligent shuttles transition seamlessly across cross-aisle tracks. Equipped with laser displacement sensors, optical encoders, and lithium-iron-phosphate (LiFePO4) power cells, these shuttles execute longitudinal and lateral travel under heavy payloads (up to 1,500 kg per pallet) at speeds up to 1.5 m/s.
2. High-Bay ASRS Crane & Upright Deflection
High-bay ASRS installations reaching heights up to 40 meters mandate extreme structural stiffness. Utilizing continuous-roll-formed Q355B high-tensile steel uprights with proprietary omega profiles, Rackzzszn engineers limit rack frame deflection under full static and dynamic loads to within 1/200th of the bay height, meeting FEM 10.2.02 tolerances.
3. OPC UA & WCS/WMS Protocol Middleware
Hardware without intelligent communication creates operational bottlenecks. Our robotic palletizers and shuttle networks utilize OPC UA industrial communication protocols, bridging field-level Programmable Logic Controllers (PLCs) directly with enterprise Warehouse Management Systems (WMS) and Manufacturing Execution Systems (MES) without proprietary lock-in.
Technical Selection Matrix: Comparing High-Density Storage Technologies
To guide enterprise procurement directors in evaluating capital expenditure (CAPEX) versus operational efficiency (OPEX), the matrix below outlines structural and performance parameters across primary automated storage configurations:
| Storage System Type | Volumetric Space Utilization | Throughput Capacity (Pallets/Hr) | WMS / MES Integration Level | Operating Temperature Range | Ideal Industrial Application |
|---|---|---|---|---|---|
| Four-Way Radio Shuttle ASRS | 85% - 90% | High (40 - 60 per lift) | Full (OPC UA / TCP-IP) | -30°C to +45°C | Cold Chain, Food & Beverage, Bulk FMCG |
| ASRS Stacker Crane System | 80% - 85% | Ultra-High (60 - 100+ per mast) | Full Native API Integration | -25°C to +40°C | High-Bay Logistics Hubs, Pharmaceuticals |
| Gravity Pallet Flow Rack | 70% - 75% | Moderate (FIFO Passive Flow) | Barcode / RFID Tracking | -10°C to +40°C | Perishable Goods, Date-Sensitive Stock |
| Selective Pallet Racking | 40% - 50% | Dependent on Forklift Operator | Manual WMS Scan | Standard Ambient | High-SKU Diversity, Low-Volume Warehouses |
Future Procurement Trends in Intelligent Warehouse Storage (2025–2030)
Global supply chain volatility and escalating labor costs are driving a paradigm shift in how enterprise procurement leaders evaluate storage infrastructure. Sourcing intelligent pallet systems from top-tier Chinese manufacturers is no longer merely a cost-saving tactic—it is a strategic capability upgrade. Key procurement trends shaping the next decade include:
Trend 01: Decoupled Hardware & Software Procurement
Global buyers are increasingly abandoning single-vendor lock-in models. Modern procurement mandates open-architecture hardware (racks, shuttles, mechanical conveyors) that can seamlessly interface with third-party software platforms. By specifying open OPC UA standard communication protocols, enterprise buyers retain total operational flexibility to update software without replacing structural rack assets.
Trend 02: Hybrid Cold-Chain Automation Acceleration
With expanding global consumer demand for fresh food and biopharmaceuticals, energy costs inside refrigerated storage warehouses (-20°C to -30°C) represent a massive operational expense. Automated 4-way shuttles minimize the internal cubic volume requiring refrigeration by eliminating forklift aisles, yielding energy consumption savings of up to 40% compared to traditional reach-truck layouts.
Trend 03: Sustainable Structural Steel & Low-Carbon Coating
ESG compliance has entered the warehouse procurement matrix. European and North American buyers now require structural suppliers to document raw material provenance and coating safety. Utilizing eco-friendly electrostatic powder coating on South China’s longest automated spray line, Rackzzszn delivers zero-VOC corrosion resistance verified under 500-hour salt-spray testing regimes.
Trend 04: Modular Scalability ("Pay-as-You-Grow")
Rather than committing to heavy upfront CAPEX for monolithic ASRS installations, modern enterprise buyers prefer modular intelligent systems. Procurement teams deploy baseline radio shuttle racking channels initially, expanding shuttle vehicle counts and integrating robotic palletizers as SKU throughput increases.
Technological Innovations Driving China’s Smart Racking Industry
The convergence of Artificial Intelligence, IoT sensor telemetry, and advanced robotics has elevated Chinese manufacturing from basic structural steel fabrication to intelligent logistics systems engineering. Key technological developments include:
- AI Vision-Guided Palletizing & Slotting: Integration of 3D depth-sensing cameras and neural-network algorithms allows robotic arms to automatically detect deformed cartons, calculate dynamic center-of-gravity offsets, and build interlocking pallet layers with perfect structural integrity.
- Real-Time Structural Health Monitoring (SHM): Smart racking systems now embed wireless strain-gauge sensors and vibration monitors into load-bearing beam connectors. These IoT sensors alert warehouse managers to structural overload or accidental forklift impacts before catastrophic frame failure occurs.
- Supercapacitor & Wireless Charging Vehicles: Traditional shuttle buggies required extended battery swap cycles. Next-generation 4-way shuttles feature fast-charging supercapacitor cells that recharge in under 15 seconds during lift transfers, enabling 24/7 continuous warehouse operations.
Strategic Purchasing Guidelines & Quality Control Criteria
Sourcing structural steel racking and automated equipment directly from Chinese manufacturers requires rigorous technical oversight. A single dimensional deviation of 2 cm can cause automated shuttle jam-ups or block critical emergency egress corridors. Follow this enterprise verification checklist prior to issuing purchase orders:
1. Steel Grade Verification
Ensure structural uprights utilize high-tensile Q355B (equivalent to S355JR or ASTM A572 Grade 50) steel coil rather than inferior Q195 grades. Request mill test certificates (MTC) verifying yield and tensile strengths.
2. Punching & Beam Pitch Tolerances
Continuous automated CNC punching lines ensure beam adjustment pitches (typically 50mm or 75mm) maintain accumulated tolerances under ±0.5mm across the entire length of 12-meter upright frames.
3. Overseas Shipping Container Optimization
Work with manufacturers experienced in export bundling. Custom heavy-duty steel cradles and protective plastic wrap prevent beam scratches, paint chipping, and frame distortion during ocean transit.
Frequently Asked Questions: Global Procurement & Engineering
Do you engineer custom intelligent racking layouts based on warehouse architectural drawings?
Why is precise on-site verification critical prior to manufacturing automated shuttle racking?
How do intelligent shuttle storage systems handle extreme sub-zero temperatures in cold storage?
What steel standards and safety compliance certifications do Rackzzszn products hold?
What is the typical deployment timeline for a complete factory automation & ASRS project?
What post-installation support and technical maintenance services are provided for overseas buyers?
Why Partner with Rackzzszn Storage Equipment Co., Ltd.?
Located in Guangzhou, China, Rackzzszn (Maobang) stands as South China’s premier industrial rack manufacturer. With over 200 skilled fabrication workers, 80+ automated processing machines (including automatic punching, roll-forming, robotic welding, and edge-bonding units), and South China’s longest automated powder coating spray line, we ensure consistent coating thickness, superior surface adhesion, and rapid turnaround times for enterprise orders worldwide.
Accelerate Your Warehouse Performance Today
Submit your facility floor plan and load specifications. Our structural engineers will design an optimized 2D/3D storage layout and technical quote within 24 hours.
