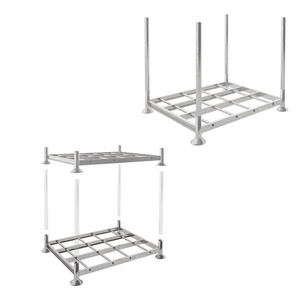

Industrial Detachable Commercial Adjustable Pallet Vertical High Quality Stillage Pallet Storage Rack
Victory Warehouse Storage Shelving Rack Cantilever Racking Heavy Duty System For Lumber
Wholesale Price High Density Drive-In Pallet Rack Warehouse Storage System Pallet Racking
Custom 5 Layer Steel Push Back Racking System Heavy Duty Powder Coated Industrial Pallet Racks for Factory Storage
China AGV Manufacturer SLAM Automated Guided Vehicle AMR Pallet Handling Robot Warehouse Logistics
40x60 Steel Building Metal Building Kits Steel Structure Warehouse Warehouse Prefabricated
Stacker Crane Racking System Single Double Multi Deep Pallet Rack Flexible Configurations
23+
Years Manufacturing Experience
50,000T
Annual Steel Processing Capacity
60+
Countries Exported Worldwide
1,000+
Containers Shipped Annually
1. Technical Engineering Architecture of Push Back Pallet Racking Systems
In modern industrial logistics and high-density material handling, Push Back Pallet Racking Systems represent one of the most efficient Last-In, First-Out (LIFO) accumulation storage mechanisms available. Designed to maximize floor footprint while eliminating multiple forklift access aisles, push back racking allows warehouse operators to store pallets from 2 to 6 deep on inclined structural steel rails.
The operational mechanics rely on a nested cart carrier system resting on inclined tracks—typically set at a precise 1.5° to 3° pitch gradient. When a standard counterbalanced or reach forklift loads the first pallet, it sets it onto the top nested cart. When loading the second pallet, the forklift driver gently pushes the first pallet backward, exposing the secondary cart beneath it. This dynamic motion is repeated up to 6 deep. Upon unloading, gravity smoothly moves the remaining nested carts forward to the aisle face for single-aisle loading and retrieval.
Structural Engineering Insight: Precision Kinematics & Gravity Control
Unlike drive-in racking systems where forklifts enter the structural bay—increasing risk of column impact—push back systems maintain total structural isolation. Chinese manufacturing exporters utilize high-tensile hot-rolled Q235B and Q355B structural steel profiles to mitigate elastic deflection under dynamic load transfers. Cart wheels equipped with sealed precision bearings ensure low friction coefficients (μ ≤ 0.03), providing reliable gravity advance without excessive acceleration forces.
Key Structural Components & Mechanical Subsystems
- Structural Upright Frames: Form-rolled open-C profiles engineered under FEM 10.2.02 and RMI ANSI MH16.1 standards, featuring heavy-duty horizontal and diagonal bracing designed to withstand dynamic shear and lateral sway.
- Inclined Guide Rails: Precision-formed structural steel channels mounted with a calculated slope. Serves as both the guidance track for nested carts and the vertical load support beam.
- Nested Rolling Carts: Heavy-gauge welded steel cart assemblies designed to interlock neatly. Each cart incorporates multi-directional alignment rollers and anti-lift safety catches to prevent track dislodgement.
- Impact Dampers & Mechanical Stops: Polyurethane or heavy-duty rubber end-stops installed at the front loading face to absorb kinetic energy when carts advance forward during picking operations.
2. High-Density Racking Systems Comparison Matrix
Selecting the optimal pallet storage technology requires evaluating SKU diversity, operational throughput, initial capital expenditure (CAPEX), and labor efficiency. The comparison table below highlights technical metrics evaluated by global procurement directors when choosing China wholesale racking exporters:
| Racking Technology | Storage Density | Access Logic | Forklift Aisle Requirement | Risk of Frame Impact | Relative CAPEX / Pallet |
|---|---|---|---|---|---|
| Push Back Racking | Very High (75%–85%) | LIFO (Last-In, First-Out) | Single Front Aisle Only | Extremely Low | Moderate (High ROI) |
| Selective Pallet Rack | Standard (40%–50%) | FIFO (100% Direct Access) | Aisle for Every Row | Moderate | Low Initial CAPEX |
| Drive-In Racking | High (70%–80%) | LIFO (Batch Storage) | Forklift Drives Inside Bay | High (Frequent Impact) | Low to Moderate |

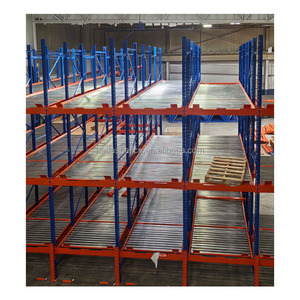

| Gravity Flow Racking | Maximum (85%–90%) | FIFO (First-In, First-Out) | Dual Aisles (Loading/Picking) | Low | High (Complex Rollers) |
| Automated Radio Shuttle | Maximum (85%–95%) | Flexible FIFO / LIFO | Single or Dual Aisle | Very Low | Very High (Automated) |
3. OEM / ODM Exporter Advantages: Why Source Push Back Systems from China
As global supply chains demand higher space efficiency, China has emerged as the global leader in industrial rack manufacturing and export. Sourcing high-density push back systems directly from audited Chinese manufacturers offers significant technical and commercial advantages for international buyers, engineering contractors, and logistics integrators.
Advanced Metallurgy & Steel Standards
Direct integration with Tier-1 steel mills ensures high-tensile cold-rolled steel (SS400, Q235B, Q355B) compliant with CE, ISO9001, and SGS standards. Material test certificates (MTC) are issued per coil batch to guarantee load performance.
Integrated Structural Engineering Design
In-house R&D teams utilize finite element analysis (FEA) software to simulate 3D stress distribution, seismic displacement, and structural buckling under dynamic loading before steel cutting begins.
Longest Electrostatic Powder Spray Line
Featuring automated 3-stage pre-treatment and South China's longest powder coating spray line (over 500m process loop), ensuring uniform coating thickness (≥ 70-90 μm) resistant to impact, abrasion, and industrial corrosion.
Export Container Loading Optimization
Custom packaging engineered for ocean logistics. Steel bundling, protective wooden pallets, and inter-nesting cart designs optimize CBM volume within 40ft High Cube containers, significantly cutting freight charges.
4. Strategic Future Procurement & Development Trends in Push Back Racking (2025–2030)
The global material handling industry is undergoing rapid technological evolution. Global warehouse operations demand smarter, greener, and more resilient high-density storage infrastructures. Key trends reshaping the wholesale push back racking export market include:
A. Hybrid AGV / AMR Integration with Gravity Push Back Systems
Traditional push back racks rely on human-operated forklifts to generate the pushing force necessary to load secondary carts. Next-generation systems are being optimized for autonomous reach trucks and Autonomous Mobile Robots (AMRs). Chinese exporters are developing precision cart entry ramps and laser-reflective targeting plates to allow AGV optical sensors to align pallets with sub-millimeter accuracy.
B. Cold Chain (-30°C) Deep Freeze Optimization
Cold storage facilities incur high energy costs per cubic meter of refrigerated space, making high-density storage critical. Push back systems designed for cold rooms are adopting specialized low-temperature alloy steels and synthetic synthetic grease lubricants that remain ductile and fluid down to -30°C without freezing or seizing rolling bearings.
C. Low-VOC Eco-Coating & Sustainable Manufacturing
In response to international carbon-neutral mandates and European ESG standards, China's leading wholesale manufacturers are transitioning entirely to solvent-free TGIC-free epoxy powder coatings and closed-loop water recovery systems during chemical washing, drastically reducing volatile organic compounds (VOCs).
D. Modular Cart Engineering for Multi-Standard Pallets
Global cross-border e-commerce demands flexibility. Modern push back cart designs are shifting from fixed single-size nests to modular adjustable cart platforms capable of supporting mixed pallet footprints—including Euro pallets (800x1200mm), Industrial pallets (1000x1200mm), and North American GMA pallets (48x40 inch).
5. Enterprise Manufacturing Quality Control & Export Workflow
Quality reliability is the foundation of structural warehouse safety. As a leading manufacturer with over 23 years of specialized engineering experience, production follows a rigorous six-stage Quality Assurance framework:
- Raw Coil Inspection: Ultrasonic thickness verification, carbon-content spectro-analysis, and tensile yield strength testing for every batch of hot/cold rolled steel coil.
- Precision CNC Punching & Forming: Continuous multi-station roll-forming mills guarantee profile pitch accuracy within ±0.5mm, ensuring beam connector teeth lock seamlessly into upright frame teardrops or diamond holes.
- Robotic Welding Subassembly: Heavy-duty cart frames and track bracket plates are joined via multi-axis robotic MIG welding stations to achieve deep weld penetration without thermal distortion.
- Surface Pre-Treatment & Powder Coating: 7-stage chemical wash, iron-phosphate degreasing, clean water rinse, and thermal curing at 200°C for maximum paint adhesion.
- Full-Scale Dynamic Load Testing: Assembled nested cart bays undergo 125% rated load static testing and 10,000-cycle kinetic push-back roll testing before bulk production sign-off.
- Export Shipping QA: Comprehensive packing audit featuring corner protectors, heavy plastic wrap, steel strapping, and custom container loading diagrams for smooth site offloading.
6. Frequently Asked Questions (FAQ) for Global Buyers
Below are technical solutions to common engineering and procurement queries faced by warehouse managers and international buyers when specifying push back racking systems:
What is the maximum recommended pallet depth for a Push Back Racking system? +
Push Back racking systems are standardly engineered from 2 to 5 pallets deep. While 6-deep configurations are technically achievable, 2-to-4 deep systems offer the optimal balance between forklift pushing effort, structural stability, and picking cycle speed. Systems beyond 5 deep often require specialized high-capacity forklift carriages to maintain constant forward pushing pressure.
How much clear height is lost due to the inclined rail system slope? +
Because push back rails pitch upward from the front aisle to the rear of the bay (typically at a 1.5° to 3° slope), vertical space consumption increases with bay depth. As a rule of thumb, each nested cart level adds approximately 50mm to 80mm of vertical height buildup. Our engineering team calculates exact beam level spacing during the initial 2D/3D CAD design phase to ensure total overhead mast clearance beneath building trusses.
Can Push Back Racks accommodate damaged or non-standard wooden pallets? +
Yes, this is a major engineering advantage of push back carts over gravity roller flow racks. Because the pallet rests fully supported inside a rigid welded steel cart frame rather than directly on rollers, broken bottom boards or slight wood splinters do not jam the system. However, for maximum safety, pallets must conform to designed weight ratings and footprint dimensions.
What specialized forklift driver training or truck capabilities are required? +
Standard counterbalanced, reach, or deep-reach forklifts can operate push back racks without dynamic modifications. Drivers simply require basic training on smooth pushing mechanics—maintaining a steady forward momentum when placing pallets and controlling the reverse tilt angle when retrieving pallets to allow gravity to bring the rear carts forward controlledly.
How does China wholesale factory pricing compare to domestic North American or European suppliers? +
Direct procurement from audited Chinese manufacturer-exporters typically delivers total landed cost savings between 25% to 40%, even after ocean freight, import tariffs, and harbor handling fees are factored in. Massive raw material purchasing power, automated roll-forming efficiency, and integrated powder coating lines enable highly competitive wholesale pricing without compromising structural steel thickness or engineering safety factors.
Do you provide full site engineering drawings and installation supervision abroad? +
Yes. Every order includes complete structural engineering layout packages: 2D CAD floorplan anchor drawings, 3D isometric structural renders, component mark sheets, and step-by-step installation manuals. For large distribution center projects, we dispatch experienced installation supervisors on-site or offer live remote technical assembly guidance via video consultation.
