3500kg Super Heavy Duty Logistics Warehouse Pallet Beam Racking Source Factory
Ultra-high load beam rack designed for high-density logistics hubs. Supports up to 3500kg per level with interlocking beam connectors.
Factory Direct Products
Featured Industrial Pallet Racking & Systems
Explore our core wholesale product range manufactured from premium cold-rolled Q235B & Q355B structural steel, precision-engineered for maximum load capacity and structural longevity.
High Performance Heavy Duty Logistics Shelves Stocking Storage Rack
Versatile selective pallet racking system with customizable beam pitch, providing 100% SKU accessibility for fast-moving inventory.
Heavy Duty Warehouse Mezzanine Platform Shelving Steel Structure System
Multi-tier vertical space expansion solution utilizing rack-supported structures to double or triple usable floor space without building expansion.

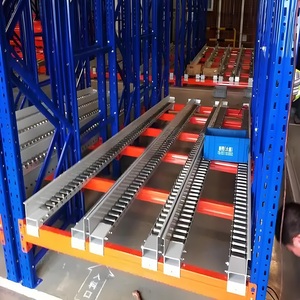

Heavy Duty Gravity Flow Racking System Customizable Industrial Storage Rack
Automatic FIFO (First-In, First-Out) material movement system using roller beds and brake wheels, ideal for perishable and batch goods.
Galvanized Metal Steel Adjustable Industrial Pallet Rack Wire Deck Divider
ANSI-compliant safety wire mesh decking and drop-in channel dividers providing enhanced fire sprinkler penetration and beam safety support.
Warehouse Racking Heavy Duty System Stack Storage Steel Pallet Racks
Modular stackable steel racking frames offering flexible temporary bulk storage for manufacturing materials and freight handling hubs.
Pallet Shuttle Rack Deep Lane Storage & Automated Retrieval System
Semi-automated radio shuttle pallet runner system optimizing floor area utilization up to 85% in cold storage and high-volume fulfillment centers.
Heavy Goods Industrial Pallet Gravity Flow Storage Rack Shelving System
Custom engineered high-capacity flow shelving with integrated safety speed controllers and heavy-duty frame impact protectors.
Engineering White Paper
Industrial Standard Pallet Racking Structural Standards & Metallurgy
A rigorous technical analysis of steel grades, load mechanics, structural deflection tolerances, and global safety standards compliance for enterprise procurement officers.
Q235B vs. Q355B Steel Selection
Standard pallet racks manufactured in China utilize prime cold-rolled Q235B carbon steel (yield strength ≥ 235 MPa) or structural Q355B steel (yield strength ≥ 355 MPa). High-bay vertical upright frames leverage cold-formed Q355B profiles to achieve thin-walled structural rigidity while reducing overall dead weight by 14% without compromising seismic shear resistance.
Beam Deflection Dynamics (L/200)
According to FEM 10.2.02 and RMI specifications, horizontal load beams must satisfy maximum vertical deflection limits under full rated load. Standard industrial design caps deflection at L/200 (where L is clear beam length). For a 2700mm beam carrying 3000kg, maximum downward deflection must not exceed 13.5mm under static maximum weight tests.
International Compliance Matrix
Export-ready pallet racking must adhere to strict international load-bearing benchmarks: European FEM 10.2.02 / EN 15512 standards, US ANSI/RMI MH16.1 structural steel rules, and Australian AS4084-2012 code. Rackzzszn components undergo physical destructive testing to verify structural safety factors of 1.65 to 1.95.
| Racking Component | Standard Profile Specs | Material Grade | Surface Treatment | Safety Factor |
|---|---|---|---|---|
| Upright Columns | 80×60, 90×70, 100×70, 120×95 (Thickness: 1.8 - 2.5mm) | Q235B / Q355B Steel | Electrostatic Epoxy Powder (60-80μm) | 1.95 : 1 |
| Box Load Beams | 80×50, 100×50, 120×50, 140×50 (Thickness: 1.5 - 2.0mm) | Q235B High-Tensile Steel | Thermo-cured Polyester Finish | 1.65 : 1 (L/200) |
| Beam Connectors | 3-Hook & 4-Hook Heavy Claws with Spring Safety Pin Locks | Stamped Steel Plate (3.0 - 4.0mm) | Zinc Galvanized / Powder Coated | 2.10 : 1 |
| Bracing (Horizontal/Diagonal) | C-Channel Profile 40×24mm (Thickness: 1.5mm) | Q235B Steel | Polyester Powder Coating | 1.80 : 1 |
| Base Plates & Footing | Heavy-Duty Anchor Plates (140×110×5mm) | Hot-Rolled Structural Steel | Galvanized / Epoxy Coated | 2.50 : 1 |
Strategic Sourcing
Wholesale Sourcing Trends in Standard Pallet Racking (2025–2030)
Key technological shifts, supply chain optimization strategies, and engineering innovations driving global procurement from Chinese manufacturing centers.
1. Automation Readiness & AGV Integration
Future-proof wholesale racking purchases focus heavily on compatibility with Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and Automated Storage and Retrieval Systems (AS/RS). Modern pallet racking frames are designed with tighter manufacturing tolerances (±0.5mm) to support laser-guided robotic picking forks and radio shuttle runners.
2. Eco-Friendly Zero-VOC Powder Coating
Environmental governance and corporate sustainability mandates are reshaping surface finish protocols. Top Chinese racking suppliers have transitioned to 100% heavy-metal-free, zero-VOC electrostatic powder coating lines. Pre-treatment processes now feature multi-stage zirc-phosphated wash systems that increase salt spray corrosion resistance to over 500 hours while reducing water waste.
3. Direct Factory Sourcing & Steel Price Hedging
Global logistics managers are bypassing local distributors to work directly with audited OEM racking factories in China. By taking advantage of raw steel index monitoring (SHFE steel coils) and container loading optimization, enterprise buyers achieve 25% to 40% capital expenditure reductions on large-scale warehouse construction projects.
4. Modular Expansion & Universal Beam Pitch
Inventory volatility requires adaptable storage layouts. Sourcing standard teardrop or 75mm diamond pitch frame uprights allows logistics operators to reconfigure beam levels dynamically as unit loads change, avoiding expensive structural retrofits when introducing new product lines.
Selection Matrix
Racking System Engineering Comparison Guide
Select the ideal pallet rack topology based on warehouse layout, forklift aisle widths, SKU diversity, and storage density goals.
| Racking System Type | Floor Utilization % | SKU Accessibility | Typical Aisle Width | Optimal Business Application |
|---|---|---|---|---|
| Selective Pallet Rack | 40% - 50% Floor Area | 100% Direct Access | 3.0m - 3.5m (Standard Reach Truck) | High SKU variety, fast-turnover FMCG, 3PL logistics hubs |
| Drive-In / Drive-Thru Rack | 65% - 75% Floor Area | LIFO / FIFO Bulk Access | Dedicated Entry Lanes | Cold storage, homogenous seasonal goods, beverage manufacturing |
| VNA (Very Narrow Aisle) Rack | 60% - 70% Floor Area | 100% Direct Access | 1.5m - 1.8m (VNA Turret Truck) | High-density vertical warehouses with high land costs |
| Radio Shuttle Rack | 75% - 85% Floor Area | Automated Batch Access | Main Transfer Aisle Only | Deep lane cold storage, automated distribution centers |
| Gravity Flow Rack | 60% - 70% Floor Area | Strict FIFO Rotation | Dedicated Load & Pick Aisles | Food & beverage, pharmaceuticals, date-sensitive stock |
| Cantilever Rack | 50% - 60% Space Util. | Column-Free Front Access | 3.2m - 4.0m Side-Loading | Pipes, lumber, steel profiles, plastic tubing, long sheet goods |
Enterprise Advantage
Why Direct Sourcing from Rackzzszn Delivers ROI
With 23+ years of manufacturing leadership in South China, Rackzzszn Storage Equipment Co., Ltd. provides end-to-end racking solutions engineered for global compliance.
Integrated 20,000m² Manufacturing Facility
Our Guangzhou factory features 80+ automatic continuous cold roll-forming lines, CNC punching machines, robotic welding cells, and South China's longest three-color continuous powder coating spray line. Every stage from raw coil slitting to automated bundle wrapping is kept under strict ISO 9001 internal quality control.
Full-Service Engineering & Site Layout
Our in-house structural engineering team provides 2D/3D CAD layout planning, building column integration, floor load stress distribution analysis, and custom seismic calculations before production starts. We prevent costly on-site assembly failures by pre-verifying aisle dimensions against your exact forklift fleet specs.
SGS Verified Export Packaging & Logistics
Overseas sea transit requires rigid packing protection. All steel uprights and beams are wrapped with corrugated cardboard, heavy-duty protective corner caps, and steel banding on custom steel skids. This ensures zero coating scratches or structural deformation upon arrival at destination ports worldwide.
Buyer Knowledge Base
Standard Pallet Racking Wholesale Procurement FAQ
In-depth answers to critical technical, structural, regulatory, and shipping questions asked by global procurement teams.
What is the standard weight capacity per beam level for standard selective pallet racking? +
Standard selective pallet racking beam levels are typically designed to support loads ranging from 1,000kg to 4,000kg per pair of beams (500kg to 2,000kg per pallet position based on 2 pallets per beam level). Custom heavy-duty box beams engineered with internal reinforcement ribs can be manufactured to support up to 5,000kg per level for specialized industrial machinery and metal coil storage.
How do I determine whether my warehouse requires Q235B or Q355B structural steel uprights? +
Q235B steel is ideal for standard warehouse heights (under 6 meters) with static frame loads under 10,000kg. For high-bay distribution centers (over 8 to 15 meters tall), heavy total frame loads, or high-seismic zone installations, Q355B steel is recommended. Q355B offers higher yield strength (355 MPa vs 235 MPa), allowing thinner gauge steel profiles to safely support heavy vertical axial forces.
What surface treatment should be specified for cold storage sub-zero environments? +
For cold room installations operating between 0°C and -30°C, hot-dip galvanizing (HDG) conforming to ISO 1461 is highly recommended. HDG provides a zinc coating thickness of 60-80μm that creates a metallurgical bond with the steel, preventing rust and flaking caused by condensation and thermal expansion. Alternatively, specialized cold-resistant outdoor epoxy powder coatings can be applied for medium-cold zones down to -10°C.
Why is the safety lock pin design critical for pallet rack beam connectors? +
Safety lock pins prevent accidental dislodgement of horizontal load beams when forklifts lift pallets upward. According to ANSI/RMI MH16.1 standards, each beam-to-column connection must feature an automatic spring lock or pin capable of withstanding an upward force of at least 4.4 kN (1,000 lbs) without disengaging.
How many standard pallet racking components can fit into a 40ft High Cube (40HQ) container? +
A standard 40HQ container typically accommodates approximately 20 to 24 tons of steel racking, depending on port weight limits and component geometry. Because pallet racking components are long (uprights up to 11.8m and beams up to 3.9m), our production team uses custom bundle nesting and computer-assisted container loading software to maximize both volume (CBM) and weight utilization, reducing per-unit ocean freight costs.
What documentation and quality certificates does Rackzzszn supply for import customs clearance? +
Rackzzszn supplies full compliance documentation packages for international shipments, including ISO 9001 and ISO 14001 factory certificates, SGS audited factory reports, Mill Test Certificates (MTC) for raw steel coils, chemical composition analysis, loading test reports, certificate of origin (Form E, Form F, or CO), stamped structural engineering assembly drawings, and commercial shipping documents.
Optimize Your Warehouse Storage Capacity Today
Get direct wholesale pricing, custom CAD layout designs, and complete technical specifications from our expert warehouse structural engineering team.
