High-Density Industrial Warehouse Racking Systems
Directly manufactured in our 20,000m² facility. Designed for heavy loading, cold-chain longevity, and maximum volumetric footprint utilization.
Vertical Expansion

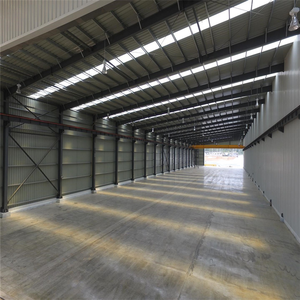

Prefab Structure
Custom OEM/ODM
High Density LIFO
Cold Store Grade
Logistics Hub
ASRS Automated
Engineering Whitepaper
Architectural Engineering & Volumetric Efficiency in Modern Storage Systems
How high-density OEM/ODM storage engineering solves industrial land scarcity, reduces per-pallet operational expenditure, and optimizes warehouse throughput performance.
In modern industrial logistics, static floor area is the most expensive variable cost. Standard selective racking systems typically utilize less than 40% of a facility’s total cubic volume due to wide forklift access aisles (often ranging between 3.2m to 4.5m). High-Density Storage Engineering shifts the paradigm from simple horizontal floor arrangement to fully integrated vertical and deep-lane cubic optimization.
As a premier custom OEM warehouse high density storage system factory and supplier, our engineering methodologies focus on increasing structural storage density while balancing structural load integrity, seismic tolerance (in compliance with ANSI MH16.1 and EN 15512 standards), and inventory accessibility.
Architectural Comparison: High-Density Storage vs. Traditional Racking
Comparative analytical breakdown based on 10,000 m² standardized industrial logistics layout data evaluated by our in-house engineering design team.
| Racking Architecture Type | Volumetric Floor Usage | Selectivity & Access Rate | Handling Equipment Required | Cold Storage Suitability |
|---|---|---|---|---|
| Standard Selective Racking | 35% – 45% | 100% Immediate Access | Standard Counterbalance Forklifts | Low (High HVAC Energy Waste) |
| Radio Shuttle High-Density System | 75% – 85% | High (Filtered by Lane SKU) | Automated Wireless Shuttle + Reach Truck | Maximum Efficiency |

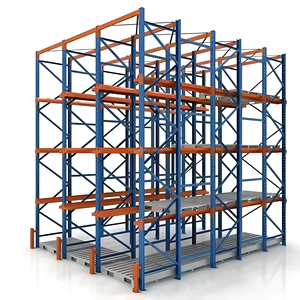

| Drive-In / Drive-Through Racking | 65% – 75% | LIFO / FIFO (Batch Dependent) | Specialized Narrow Reach Forklifts | Very High |

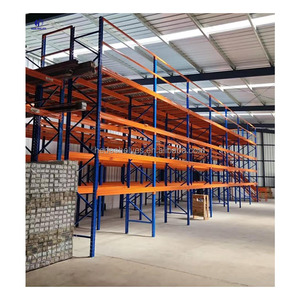

| Multi-Tier Mezzanine Platform | 80% – 90% (Vertical Multiplied) | 100% Manual / Tote Picking | Conveyors, Freight Lifts, Hand Trucks | Moderate (Ambient/Partitions) |

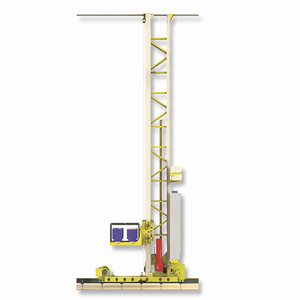

| Automated ASRS Miniload System | 85% – 95% | 100% Automated Robotics | Stacker Cranes / AMR Robotics | Optimal for Automated Facilities |
Enterprise OEM & ODM Superiority
Why Top Global Brands Partner with Our Factory
From structural engineering site surveys to South China's longest continuous powder-coating line, we control every link of the manufacturing supply chain.
Precision Cold-Rolled Metallurgy
We utilize certified Q235B and Q355B high-tensile steel coils. Cold-roll forming machines shape upright profiles with uniform wall thickness and high structural moment of inertia.
Longest Spray Line in South China
Our facility operates an automated 180-meter continuous electrostatic powder coating line. Delivers zero-gap, anti-scratch epoxy finishes resistant to humidity, corrosion, and extreme cold.
SGS Audited & Internationally Certified
Rigorous ISO9001 quality compliance systems. Every production batch undergoes strict tensile strength tests, weld-seam ultrasonic testing, and dimensional tolerance inspections.
End-to-End Engineering Support
In-house CAD/3D structural simulation team. We evaluate building floor grid, ceiling clearances, fire sprinkler clearance, and forklift turning radii before manufacturing begins.
Strategic Market Insights
Future Procurement Trends in High-Density Storage (2025–2030)
Key technological transitions transforming warehouse logistics procurement, automated material handling integration, and sustainable factory manufacturing.
01
Transition to Hybrid Automated Shuttle Systems
Buyers are rapidly transitioning away from manual drive-in racking toward radio shuttle platforms and 4-way direction shuttles. Automated shuttles eliminate forklift impacts inside racks, extending equipment service life by over 15 years while dramatically increasing throughput speed.
02
Green Steel Sourcing & ESG Compliance
Global supply chains demand carbon-transparent manufacturing. Our factory incorporates recycled steel feedstocks and low-VOC powder coatings, empowering international procurement teams to meet strict ESG corporate sustainability targets.
03
Rapid Modular OEM Component Standardization
Customization no longer means slow delivery. Procurement strategy now relies on standardized OEM upright profiles combined with modular beam connections, cutting international manufacturing lead times from months down to under 20 days.
Factory Infrastructure
Rackzzszn Enterprise Manufacturing Strengths
Over two decades of precision steel fabrication experience serving multinational supply chain operators, distribution networks, and industrial OEMs.
23+ Years Industrial Mastery
Established track record of solving complex industrial storage challenges for logistics giants including Toyota, SF Express, Haier, and Panasonic.
50,000 Tons Annual Capacity
80+ automated processing machines including CNC punching units, continuous roll formers, automated robotic welding cells, and auto-packing lines.
Global Export Readiness
Over 1,000 export containers shipped annually to 60+ countries across North America, Europe, Southeast Asia, the Middle East, and South America.
Buyer Knowledge Base
Frequently Asked Procurement & Engineering Questions
Detailed technical answers provided by our senior racking design engineers to guide your OEM architectural specification decisions.
How do you guarantee custom OEM dimensions match our site column grid and structural tolerances? +
Our engineering process starts with a strict building drawing verification. We model the facility using 3D BIM/CAD software to verify column offsets, building expansion joints, roof truss clearances, and fire protection pipe corridors. Before full production, we issue comprehensive manufacturing elevation blueprints for customer sign-off. A tolerance of ±0.5mm is strictly maintained during CNC punching and roll-forming stages.
What structural steel grade is utilized for heavy-duty cold storage high-density racking? +
For sub-zero and deep-freeze environments (-20°C to -30°C), standard carbon steel can suffer from low-temperature embrittlement. We engineer cold-chain systems using certified Q235B/Q355B low-alloy structural steel with enhanced notch toughness. Combined with our hot-dip galvanizing or specialized low-temperature powder coating, the structural integrity and corrosion resistance are guaranteed over long operational lifetimes.
What is the standard production lead time for a 500-tonne custom OEM warehouse racking order? +
Once CAD layout designs and technical specifications are confirmed, raw steel coil slitting and roll-forming take approximately 15 to 20 business days. Our 180-meter continuous automated powder-coating line allows us to process up to 150 tonnes of finished rack components per day, ensuring large-scale enterprise orders are completed, containerized, and export-packed within 25 calendar days.
How does a Radio Shuttle Rack System compare in ROI against standard Drive-In racking? +
While Radio Shuttle systems have a higher initial capital expenditure due to shuttle robotics, their ROI is typically achieved within 12 to 18 months. Shuttles eliminate the need for forklifts to drive inside the racking structures, reducing structural collision damage by up to 90%, increasing pallet handling speed by 40%, and allowing higher vertical racking density without risking operator safety.
Do you supply overseas installation guidance and structural safety inspection certificates? +
Yes. Every OEM export order includes 3D assembly sequence drawings, component identification coding, and step-by-step video installation guides. For major industrial logistics projects, our senior installation engineers can be deployed on-site for direct assembly supervision, alignment inspection, load testing, and maintenance certification.
Optimize Your Warehouse Volumetric Space Today
Send us your warehouse CAD floor plan or storage project specifications. Our structural engineering team will deliver a customized 2D/3D high-density layout and direct factory price quotation within 24 hours.
