Engineering Heavy Coil Storage: Mechanical Integrity, FEA Modeling, and Risk Mitigation

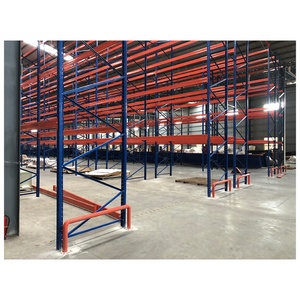

Handling heavy rolled materials—specifically steel coils, copper spools, aluminum rolls, and paper master reels—presents unique structural engineering challenges that standard warehouse pallet racks cannot accommodate. Cylindrical inventory places high concentrated point loads onto structural beam profiles rather than evenly distributed loads. As a tier-1 OEM/ODM Coil Storage Pallet Racking Supplier, Rackzzszn Storage Equipment Co., Ltd. integrates specialized finite element analysis (FEA), high-tensile structural steel (Q235B/Q355B), and custom cradle geometry to deliver rack systems engineered for zero-deflection tolerances and long-term operator safety.
1. Concentrated Load Physics & Deflection Limits
In standard selective pallet racking, beam deflection is governed by uniformly distributed load (UDL) formulas. However, steel coil storage racking subject to heavy coils (ranging from 3 to 35 metric tons per bay) experiences concentrated line loads at the precise contact points of the coil saddles or V-cradles. If standard roll-formed step beams are used without structural reinforcement, localized flange buckling or severe torsional twisting will occur.
Our engineering team calculates beam stiffness using a maximum allowable deflection limit of L/300 to L/400 (compared to the standard commercial limit of L/200). This structural rigidity ensures that upright columns, beam connectors, and safety locks absorb zero secondary bending moments during overhead crane or heavy forklift placement.
Critical Safety Note: Preventing Coil Roll-Away Accidents

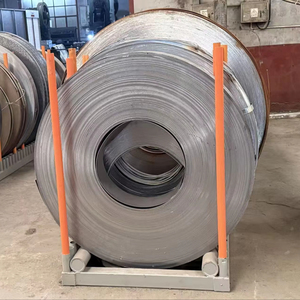

Unsecured cylindrical loads possess high kinetic energy potential. A single dynamic slip during forklift extraction can lead to catastrophic collapse. Our OEM coil racking incorporates angled cradle beds (typically 15° to 30° inclined V-stops) reinforced with high-density polyurethane (PU) dampener liners that prevent surface scoring while mechanically locking the coil axis in place.
2. Structural Component Specs: Hot-Rolled Channels vs. Cold-Formed Profiles
Depending on your facility's operational throughput and ceiling height, we design custom coil storage solutions utilizing two primary metal fabrication pathways:

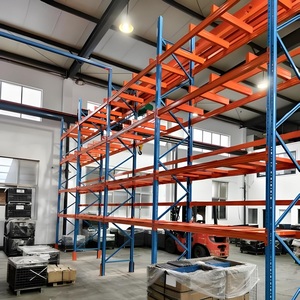

- Structural Steel Channel Racking (Hot-Rolled Structural C-Channels): Engineered for ultra-heavy duty applications (coils > 15 tons). Heavy structural channels offer high resistance to impact damage from heavy forklifts and crane hooks, providing maximum shear strength at structural connection joints.

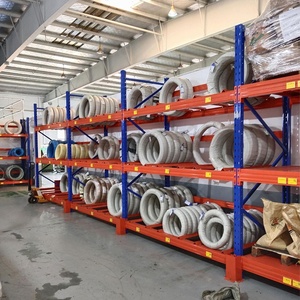

- Heavy-Duty Cold-Formed Steel Racking: Ideal for high-density multi-tier coil racks (coils under 10 tons). Formed with multi-nested profiles and heavy-gage upright posts (up to 3.25mm thickness), optimized via automated CNC punching for adjustable 75mm or 50mm pitch positioning.
3. Surface Protection Technology for High-Value Coils
For cold-rolled steel, polished stainless, mirror aluminum, and electrical copper coils, raw steel-on-steel contact creates permanent pressure marks, scratching, and material scrap loss. Our customized ODM coil storage racks incorporate heavy-duty protective cradles lined with:
- Cast Polyurethane (PU) Saddles: High shore hardness (90-95 Shore A) providing high impact dampening and zero oil absorption.
- Heavy Rubber Cushion Strips: High-friction anti-slip profiles for oil-coated coils.
- Ultra-High-Molecular-Weight Polyethylene (UHMW-PE): Low-friction, high-wear resistant liners ideal for smooth coil sliding and automated radio shuttle loading interfaces.
