Engineering Grade Industrial Storage Systems
Precision-engineered selective pallet racks, heavy-duty mezzanine platforms, cantilever frames, and automated shuttle systems manufactured to AS4084, FEM, and RMI structural safety standards.

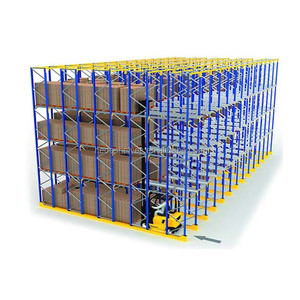

Wholesale Warehouse Racking Pallet Racks Industrial Selective Pallet Racking Heavy Duty Drive In Rack System
Structure: High-tensile Q235B/Q355B Cold-Rolled Steel
100% SKU accessibility designed for high-turnover logistics hubs. Ideal for direct forklift navigation and high-bay rack storage optimization.

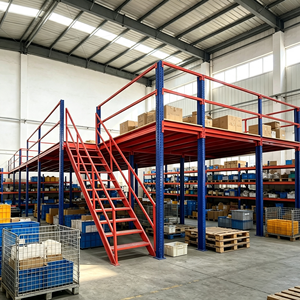

Heavy Duty Industrial Storage Warehouse Racks Pallet Racking Systems Attic Loft Mezzanine Floor Platforms
Design: Multi-Tier Structural Steel Platform
Doubles or triples vertical floor space without structural expansion. Complete with staircases, safety handrails, and integrated cargo drop gates.

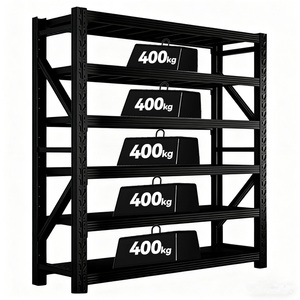

5/6 Layer Heavy Light Duty Steel Warehouse Rack Adjustable Industrial Shop Storage 400kg Garage Metal Workshop Shelf
Feature: Boltless Pitch Adjustability
Modular steel shelving designed for manual handling, workshop spare parts maintenance, and flexible retail stockroom organizing.
75mm Pitch Upright Multi Tier Load Bearing Double Row Pallet Storage Rack Manufacturing Plant Double Deep Pallet Racking
Configuration: Double-Deep High Density
Engineered for pantograph deep-reach forklifts. Increases pallet storage density by 30-40% compared to standard single-selective systems.

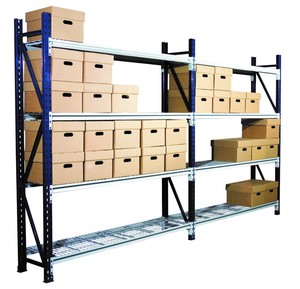

Warehouse Medium Duty Loading Long Span Rack with Steel Panel
Decking: Heavy-Gauge Galvanized/Powder-Coated Steel Panels
Heavy-duty longspan shelving designed for unpalletized bulky goods, archives, e-commerce picking bins, and industrial inventory.

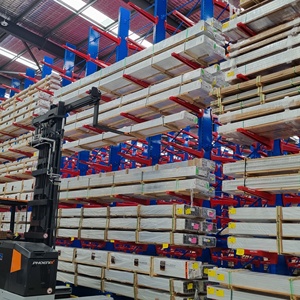

Best Choice Heavy Duty Steel 5-Layer CE Certified 1500kg/Arm Roll-Formed Cantilever Rack Corrosion Protection Powder Racking
Certification: CE Certified & Anti-Corrosion Finish
Column-free front structure engineered for storing pipes, timber profiles, aluminum extrusions, and heavy steel plates effortlessly.
Warehouse Semi-automatic Steel Rack System 2 Ways Shuttle Car Selective Storage Remote Control Radio Shuttle Pallet Racking
Mode: FIFO / LIFO Automated Deep Storage
Cuts forklift operational travel time by 70%. Maximizes volumetric cube space in high-density cold storage and beverage fulfillment centers.
Heavy Duty Steel Coil Storage Rack, Industrial Cradle Rack for Coil Material Handling
Geometry: V-Shaped Cradle Structural Supports
Specialized structural steel cradle rack designed for safely storing, rolling prevention, and handling heavy steel coils, paper reels, and cables.
20,000m² Certified Factory Base
Operating a massive production footprint equipped with multi-station continuous cold-roll forming mills, high-precision laser cutters, and automatic robotic welding stations to ensure millimeter-precise structural tolerances.
South China's Longest Powder Line
Featuring a state-of-the-art continuous electrostatic powder spray system capable of 3-color single-pass finishing. Delivers superior impact resistance, salt-spray durability, and uniform coating thickness (>80μm).
Full Structural Engineering & FEA
In-house structural engineers execute finite element analysis (FEA), seismic simulation, and load deflection tests according to AS4084-2012, FEM 10.2.02, and RMI standards before mass production.
Engineering White Paper: OEM/ODM Structural Design & Load Physics in Pallet Racking
In global supply chain management, selecting the appropriate structural racking architecture is directly linked to operational throughput, safety compliance, and long-term capital expenditure efficiency. As a premier OEM/ODM Pallet Racking Manufacturer & Exporter, our engineering team adheres to rigorous mechanical design standards, evaluating structural stress distributions, buckling modes, and dynamic seismic behaviors.
Pallet rack integrity begins with raw material selection. While standard structural profiles frequently use commercial grade Q235 steel, high-bay and heavy-duty load configurations mandate high-yield cold-rolled structural steel coils (such as Q355B or SS grade 50). Q355B steel yields a minimum yield strength of 355 MPa, providing a 50% increase in load-bearing capacity compared to baseline materials. This structural rating permits taller upright frames (exceeding 12 meters) while maintaining compliance with allowable deflection criteria (typically limited to L/200 under maximum working load).
Understanding Punching Pitch Mechanics: 75mm vs 50mm Upright Configurations
The structural geometry of upright columns relies heavily on punch pitch engineering. A 75mm pitch punch system provides optimal versatility for international logistics projects complying with standard metric beam adjustments. The structural tear-drop or diamond-hole perforation profile is optimized using Finite Element Analysis (FEA) to minimize stress concentration points around connection hooks.
- Structural Beam Connectors: Engineered with 3 to 5 claw hooks forged from heavy-duty cast or stamped steel, preventing rotational beam twist under asymmetric loading.
- Safety Locking Pins: Automated spring-loaded safety locks ensure beam connectors cannot be inadvertently dislodged by upward forklift impacts, supporting up to 1,000 kg of uplift shear resistance.
- Frame Bracing Geometry: Alternating diagonal and horizontal bracing patterns formed from structural C-channel profiles absorb lateral sway forces and resist seismic harmonics.
Technical System Selection & Economic Efficiency Matrix
To assist logistics directors and warehouse planners in selecting optimal warehouse storage infrastructure, the table below outlines mechanical and operational parameters across standard racking archetypes:
| Racking System Type | Volumetric Utilization | SKU Selectivity | Forklift Aisle Requirement | Relative Cost / Pallet Position | Optimal Industry Application |
|---|---|---|---|---|---|
| Selective Pallet Rack | 40% - 50% | 100% (Direct Access) | 3.0m - 3.5m (Standard Counterbalance) | Baseline ($) | FMCG, 3PL Warehouses, General Distribution |
| Double-Deep Pallet Rack | 60% - 65% | 50% (LIFO) | 3.0m - 3.3m (Pantograph Reach Truck) | Baseline + 15% ($$) | Manufacturing Plants, Bulk Stock Storage |
| Drive-In / Drive-Thru | 75% - 85% | 15% - 20% (LIFO/FIFO) | Driven inside rack lane (2.0m-2.2m clearance) | Baseline + 35% ($$$) | Cold Storage, Seasonal Stock, High Batch Goods |
| Semi-Automated Radio Shuttle | 85% - 90% | Flexible Batch Control | Outer loading aisle only (2.8m - 3.0m) | Baseline + 85% ($$$$) | Low-Temperature Freezers, Beverage Logistics |
| Heavy Cantilever Rack | N/A (Linear Goods) | 100% Long Goods | Variable (Side Loader or Multi-directional) | Custom Structural ($$$) | Steel Pipes, Lumber Yards, Aluminum Profiles |
Future Procurement Trends in OEM/ODM Industrial Pallet Racking
The global warehousing and logistics landscape is undergoing a structural transition driven by e-commerce expansion, labor optimization, and land cost escalation. Procurement decision-makers must evaluate racking investments not merely as static metal frames, but as adaptable infrastructure built for automated fulfillment ecosystem integration.
1. Convergence of Automated Shuttle & ASRS Infrastructure
Traditional static pallet racking is rapidly giving way to hybrid automated systems. Future-proof procurement focuses heavily on OEM/ODM manufacturers capable of maintaining strict millimeter-level installation tolerances required by Automated Storage and Retrieval Systems (ASRS) and autonomous Radio Shuttle carts. Guide rails, sensor channels, and rack beam flatness must remain flawless across decades of operational vibration.
2. Cold-Chain Resilient Alloy Selection & Anti-Embrittlement Coatings
Refrigerated and sub-zero frozen warehousing (-25°C to -30°C) presents intense material fatigue challenges. Low temperatures cause standard carbon steel to undergo ductile-to-brittle transition, increasing frame failure risks under dynamic forklift load impacts. Future procurement mandates low-temperature structural steel alloys (e.g., Q355E grade) treated with specialized low-temperature powder coatings or hot-dip galvanization (>65μm zinc thickness).
Furthermore, sustainability mandates are prompting global buyers to prioritize eco-friendly powder coating technologies that utilize zero-VOC electrostatic powder formulations. Simultaneously, modular OEM/ODM rack engineering ensures that frames can be disassembled, reconfigured, or expanded vertically as business storage demands evolve, maximizing overall Asset Life Cycle Return on Investment (ROI).
Frequently Asked Questions (Procurement & Engineering)
Direct answers from our structural engineering team addressing custom OEM/ODM parameters, site investigation requirements, export shipping logistics, and compliance verification.
Do you provide custom CAD engineering drawings and load calculations prior to ordering?
Yes. Our senior design team conducts complete structural engineering evaluations based on your building architectural drawings, ceiling clear height, column layout, concrete floor slab load capacity, forklift turning radius, and pallet dimensions. We provide complete 2D layout drawings and 3D isometric modeling alongside verified FEA safety factor calculations before production commences.
Why is pre-production site measurement verification so critical?
In real-world construction, actual building dimensions frequently deviate from initial architectural blueprints. A variance of just 2 to 3 cm in column placement, fire sprinkler pipe positioning, or floor slab tilt can lead to upright installation blockages or compromise emergency egress corridors. We strongly advocate for verified site measurements or laser scan data to ensure flawless on-site rack assembly.
What international quality and structural standards do your racking products meet?
Our manufacturing processes and structural designs conform strictly to major global racking codes, including Australia’s AS4084-2012 standard, European FEM 10.2.02 specification, American RMI standards, and ISO 9001 quality management benchmarks. Every export batch undergoes raw material spectral testing, weld integrity checks, and coating thickness verification.
How are racking components packed to prevent damage during long-distance ocean shipping?
Export shipments are handled with specialized industrial bundling techniques. Upright frames and beams are nested, wrapped with protective bubble cushioning, steel-strapped onto custom timber or steel skids, and corner-shielded to eliminate friction abrasion during maritime shipping. Accessories are crated in heavy-duty wooden boxes to prevent movement during container transit.
Can your pallet racking systems be customized for automated cold storage facilities?
Absolutely. We specialize in engineering high-density drive-in and radio shuttle racking systems tailored specifically for cold-chain freezers. We utilize specialized low-temperature impact-resistant steel grades, rust-inhibiting galvanization, and low-viscosity mechanical shuttle components capable of flawless continuous operation at temperatures as low as -30°C.
