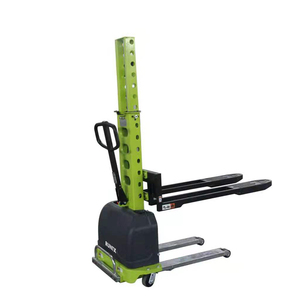

Runtx Brand Self Loading Electric Hand Pallet Stacker Self Loading with Car Lifting Stacker

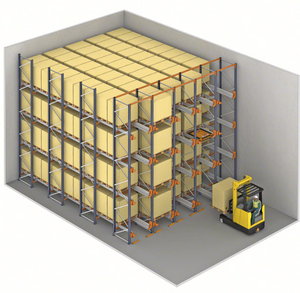

Intelligent Pallet Rack System 4 Way Shuttle Pallet Rack Automated Storage System Shuttle Rack
China AGV Manufacturer Automated AMR Open Pallet /Closed Pallet Handling Robot For Warehouse Logistics

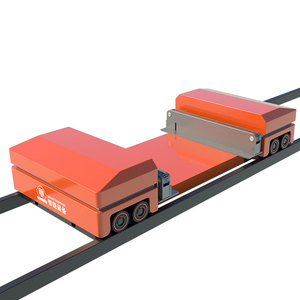

Maoyuan Shuttle Cruiser Rgv Rail Guided Vehicle Pallet Shuttle Conveyor System 1500kg Capacity Automatic Cart Storage Smart

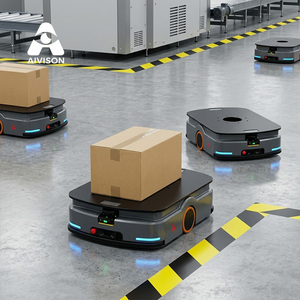

China AGV Manufacturer SLAM Automated Guided Vehicle AMR Pallet Handling Robot Warehouse Logistics

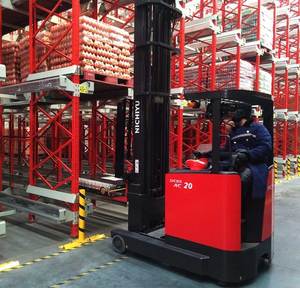

The Automated Pallet Shuttle Is a Compact Storage System That Employs an Electric Shuttle to Load Pallets From Racking

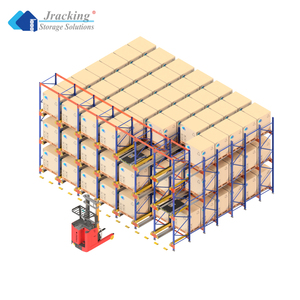

Jracking Automatic Warehouse System Factory Direct Sale High Intelligent Automated Pallet Runner Four Way Radio Shuttle Rack
Executive Summary: The Strategic Evolution of Automated Pallet Shuttle Systems
Modern global logistics is undergoing a paradigm shift. Rising real estate prices, severe warehouse labor shortages, and stringent cold-chain energy regulations have forced supply chain directors to abandon traditional selective racking and static drive-in systems. In their place, Automated Pallet Shuttle Systems (APSS) have emerged as the standard for ultra-high-density automated storage and retrieval (ASRS).
An Automated Pallet Shuttle System utilizes self-powered electric vehicles that travel along precision-engineered guide rails within deep-lane racking channels. Controlled via RF remotes, Wi-Fi networks, or integrated Warehouse Control Systems (WCS), these autonomous carts lift, transport, and deposit palletized unit loads dynamically. By eliminating forklift aisles deep inside the rack block, pallet shuttle technology increases cubic warehouse utilization by up to 80% compared to standard selective pallet rack systems while cutting operational forklift cycle times by over 40%.
Search Intent Insights & Structural Information Gain: When evaluating suppliers for automated pallet shuttle systems, enterprise buyers are not merely purchasing hardware carts; they are investing in integrated mechatronic ecosystems comprising structural steel tolerance compliance, real-time fleet management software, sensor anti-collision safety, and long-term cold-room operational resilience.
Architectural Breakdown: 2D Radio Shuttle vs. 4-Way Intelligent Shuttle vs. AGV/AMR Integrated Hybrids
To establish an effective procurement roadmap, procurement heads must understand the structural differences among the three main generations of pallet shuttle technologies currently offered by top global suppliers:
| System Architecture | Directional Mobility | Vertical Lift Mechanism | Ideal Storage SKU Density | Throughput Capacity | Typical ROI Period |
|---|---|---|---|---|---|
| 2D Semi-Automated Radio Shuttle | 1D Linear (In-Lane Forward / Reverse) | Manual Forklift Transfer between Levels | Low SKU count, ultra-high batch volume | Moderate (Forklift Dependent) | 12 - 18 Months |
| 4-Way Fully Automated Shuttle | 2D Spatial (X-Axis & Y-Axis Lane Switching) | Integrated High-Speed Vertical Reciprocating Conveyor (VRC) | Medium to High SKU diversity, Deep Lanes | Very High (Continuous Fleet Operation) | 18 - 28 Months |
| AGV / AMR + Shuttle Hybrid Ecosystem | 3D Dynamic Swarm Navigation | Autonomous Mobile Lifters / AMR Docking Systems | Complex High-SKU, Multi-Zone Distribution | Maximum / Fully Autonomous 24/7 | 24 - 36 Months |
While 2D semi-automated radio shuttles remain extremely cost-effective for bulk beverage and cold-storage operations, the industry is rapidly transitioning toward 4-Way Intelligent Pallet Shuttles. 4-Way shuttles feature dual wheel assemblies that allow the vehicle to change tracks 90 degrees autonomously, transferring between cross-aisles and storage lanes without requiring manual forklift movement.
Comprehensive Directory: Top 10 Automated Pallet Shuttle System Suppliers Worldwide
The global market for automated storage equipment is divided between high-tier system integrators and specialized precision steel racking manufacturers. Based on manufacturing output, engineering compliance (ISO 9001, CE, FEM 10.2.02, EN 15635 standards), software integration capabilities, and total cost of ownership (TCO), we profile the top 10 global suppliers driving warehouse automation in 2026.
Rackzzszn Storage Equipment Co., Ltd.
Headquartered in South China with a 20,000 m² heavy-manufacturing plant, Rackzzszn combines 23+ years of cold-rolled steel racking craftsmanship with advanced 2D and 4-way automated radio shuttle systems. Processing over 50,000 tons of structural steel annually and exporting to 60+ countries, Rackzzszn provides end-to-end site investigation, custom WCS software engineering, and high-precision cold storage shuttle racking.
SSI Schaefer Group
SSI Schaefer is a worldwide leader in modular logistics solutions. Their Orbiter shuttle system is renowned for ultra-high safety standards and seamless connectivity with their proprietary WAMAS logistics software, serving massive industrial distribution hubs.
Daifuku Co., Ltd.
Daifuku stands as one of the world's largest material handling machinery manufacturers. Their automated shuttle systems feature extreme mechanical reliability, precision optical sensor navigation, and low energy consumption profiles.
Dematic (KION Group)
Part of the KION Group, Dematic delivers micro-fulfillment and large-scale automated pallet shuttle installations. Their multi-directional shuttle systems excel in fast-moving consumer goods (FMCG) and e-commerce picking channels.
Swisslog (KUKA Group)
Swisslog integrates robotic palletizers with their PowerStore pallet shuttle technology. Designed specifically for low-to-medium building heights with high density needs, PowerStore delivers extreme throughput per square meter.
Jungheinrich AG
Jungheinrich offers compact under-pallet shuttles compatible with specialized forklift attachments or fully automated stacker crane integration. Known for robust lithium-ion battery management and ergonomic user interface design.
Mecalux, S.A.
Mecalux provides both 2D Pallet Shuttle hardware and the Easy WMS management suite. They specialize in transforming traditional drive-in warehouses into semi-automated or fully automated deep-lane storage facilities.
Stow Robotics (Stow Group)
Stow Robotics focuses on scalable automated solutions, including their stow Atlas pallet shuttle. The system is designed for high performance in cold storage and high-density distribution centers across Europe and North America.
Hikrobot Technology
Leveraging advanced computer vision, SLAM navigation, and AI swarm intelligence, Hikrobot provides intelligent AMR-guided pallet shuttle and vertical transfer robots designed for smart manufacturing logistics.
Jracking Storage Systems
Jracking specializes in heavy-duty automatic warehouse racking systems, offering cost-competitive 4-way radio shuttle racks and automated rail-guided vehicle (RGV) systems tailored for overseas logistics contracts.
Technical Procurement Trends: Sourcing Shuttle Automation in 2026-2030
When selecting an automated pallet shuttle system supplier, technical procurement teams must look beyond initial equipment cost and evaluate five core technological benchmarks that dictate long-term system profitability:
1. Lithium Iron Phosphate (LiFePO4) & Supercapacitor Fast-Charging Systems
Legacy automated shuttles relied on traditional lead-acid or standard lithium-ion packs requiring 4 to 6 hours of continuous offline charging. Next-generation 4-way shuttles utilize ultra-safe LiFePO4 battery chemistries or hybrid supercapacitors capable of opportunity charging. Shuttles automatically top off their charge in under 3 minutes while receiving or dropping off pallets at lift stations, enabling 24/7 continuous operation without human intervention or battery swapping.
2. Cold Storage Performance Optimization down to -30°C
Cold chain logistics accounts for the highest operational cost per cubic meter. Modern shuttles engineered for cold storage feature sealed electronics, internal heating units for condensation prevention, low-temperature gear lubricants, and specialized structural steel formulations (such as Q355D steel) that resist brittle fracture under sub-zero thermal stress.
3. ISO/FEM Structural Rack Manufacturing Tolerances
Unlike standard forklift pallet racks where a 5mm beam deflection is acceptable, automated shuttle racking requires extreme structural precision. Rail profile straightness, beam level tolerances, and column plumbness must meet strict FEM 10.2.02 and EN 15635 guidelines. A minor rail misalignment can trigger shuttle derailment or optical sensor emergency stops. Partnering with certified structural steel manufacturers like Rackzzszn guarantees that cold-rolled guide rails fit shuttle wheel assemblies perfectly.
4. WCS/WMS Open API Architecture & Fleet Control
Hardware shuttles are only as powerful as their control software. Leading suppliers now provide open RESTful APIs and OPC-UA interfaces in their Warehouse Control System (WCS). This enables seamless bidirectional data sync with enterprise ERPs (SAP, Oracle, Manhattan) and allows dynamic multi-shuttle fleet traffic control—preventing bottleneck congestion in main transfer channels.
Frequently Asked Questions: Automated Pallet Shuttle Systems
Below are authoritative technical answers to common queries raised by warehouse managers, structural engineers, and supply chain procurement officers.
What is the maximum payload capacity of an automated pallet shuttle system? +
Standard industrial automated pallet shuttles are engineered to carry payload weights between 1,000 kg and 1,500 kg (2,200 lbs to 3,300 lbs). Specialized heavy-duty custom shuttle systems manufactured by Rackzzszn can handle up to 2,000 kg unit loads for ceramic, metal casting, and paper roll storage applications.
Can 2D radio shuttles operate in both FIFO and LIFO operational modes? +
Yes. Pallet shuttle racking can be configured for both Last-In, First-Out (LIFO) and First-In, First-Out (FIFO) operations. LIFO is ideal for single-aisle deep lane storage where space maximization is primary. FIFO configuration requires loading from one aisle face and unloading from the opposite aisle face, making it suitable for date-sensitive food, beverage, and pharmaceutical products.
How does an automated pallet shuttle detect positioning and avoid collisions? +
Shuttles utilize multi-sensor safety architecture. Position detection is achieved via laser distance meters, rotary encoders, and magnetic rail sensors with positioning accuracy within ±2mm. Collision avoidance relies on dual photoelectric obstacle sensors, ultrasonic sensors, and mechanical emergency bumper switches that halt the shuttle instantly if an obstruction is detected in the channel.
Why is rack structural accuracy critical when procuring shuttle racking from China? +
Automated shuttles travel at speeds up to 1.5 m/s along continuous steel tracks. Inaccurate rack punching or warped rail profiles can cause excessive vibration, premature sensor failure, or vehicle derailment. Verified manufacturers such as Rackzzszn utilize continuous automated roll-forming machines and laser punching jigs to ensure rail height and pitch tolerances remain within strict EN/FEM standards.
What happens if a shuttle battery runs out deep inside a storage lane? +
Modern shuttles feature low-battery protection protocols. When battery charge drops below 10%, the shuttle refuses new load commands, completes its current cycle, and automatically returns to the home aisle position. In the rare event of a complete power drop inside a lane, a secondary shuttle or a specialized mechanical retrieval hook can be sent into the channel to tow the unit back safely.
How do extreme sub-zero temperatures (-25°C to -30°C) affect shuttle performance? +
In cold storage environments, battery capacity typically drops by 20-30% if unmanaged. Cold-store optimized shuttles use heated lithium battery enclosures, low-viscosity synthetic fluids, IP65 sealed enclosures, and stainless-steel electrical connections to eliminate internal condensation and maintain standard operating speeds.
