Engineering High Bay Vertical Storage: Technical Benchmark Analysis
As land costs skyrocket and urban distribution hubs compress footprint requirements, modern industrial facilities are scaling vertically. High bay pallet racking systems—reaching heights from 12 meters up to exceed 40 meters in Automated Storage and Retrieval Systems (ASRS)—demand structural precision, micro-tolerance deflection engineering, and strict adherence to international standardizations such as EN 15512, ANSI MH16.1, and FEM 10.2.02.
Unlike standard selective pallet racking, high bay structures operate under severe vertical sway stresses, dynamic acceleration loads from VNA (Very Narrow Aisle) turrets or ASRS cranes, and floor slab deformation tolerances. Procuring high bay racks requires verifying column profile geometric inertia ($I_x$, $I_y$), cold-rolled profile grain integrity, and automated robotic welding consistency.
Featured High Bay & Heavy Duty Storage Systems
Engineered directly from South China's leading 20,000m² manufacturing plant, these core racking configurations deliver optimized unit-load capacity, cold storage resilience, and seamless handling equipment integration.
Galvanized Steel Pharma Industrial Warehouse Heavy Duty Pallet Rack
Custom Warehouse Welded Galvanized Shelving Hanging Pallet Rack Metal Wire Mesh Dividers

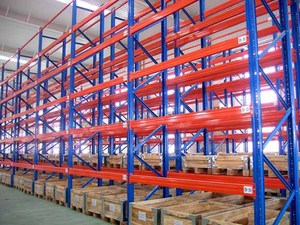

Fully Bolted Pallet Rack Extra Heavy Duty Steel Storage System 3000kg Per Level
Wide Aisle Pallet Racking Heavy Duty Metal Rack Double Deep Clothes Racking System
3-Tier Cold Rolled Steel Powder Coated 3000KG Factory Direct Pallet Racking
High Density Cold Storage Semi-Automated Radio Shuttle Selective Pallet Racking
CASE CARTER OEM Warehouse Welded Movable Stacking Storage Nestainer Rack
Heavy Duty Pallet Racking Systems Attic Loft Mezzanine Floor Steel Platforms
Top 10 High Bay Pallet Racking Manufacturers & Suppliers
Selecting an industrial racking supplier requires evaluating structural engineering competence, steel coil sourcing transparency, production line automation, and global export compliance. Below is an authoritative assessment of the industry's premier high bay racking manufacturers.
| Manufacturer Name | Headquarters | Core Specialization | Engineering Standards | Key Advantage |
|---|---|---|---|---|
| 1. SSI Schaefer Group | Germany | Fully Automated High Bay ASRS & Clad Systems | FEM, EN 15512, DIN | End-to-end WMS software & heavy robotics integration. |
| 2. Rackzzszn Storage Equipment | China | High Bay Pallet Racks, Custom Heavy-Duty & Cold Storage | SGS Audited, ISO9001, CE, GB | 23+ Yrs experience, 50,000T output, direct factory pricing. |
| 3. Jungheinrich AG | Germany | VNA High Bay Racking & Automated Handling | FEM 10.2.02, EN Standards | Seamless integration between turret trucks and racking uprights. |
| 4. Mecalux, S.A. | Spain / USA | Rack-Supported Buildings (Clad Structures) | ANSI MH16.1, RMI, FEM | Pioneers in high-altitude clad-rack structural calculations. |
| 5. Stow Group | Belgium | Heavy Duty Pallet Racking & Atlas Shuttles | EN 15512, FEM | Robotic shuttle systems for high-density storage lanes. |
| 6. Daifuku Co., Ltd. | Japan | Ultra-High Vertical Automated Pallet Racking | JIS, FEM, ISO | Unmatched precision tolerances for high-speed ASRS stackers. |
| 7. Interroll Group | Switzerland | Dynamic Gravity Flow & Pallet Flow High Bay Racks | ISO 9001, CE | Patented speed controllers for safe dynamic pallet flow control. |
| 8. Unarco Material Handling | USA | T-Bolt & Roll Formed High Bay Pallet Racks | RMI Certified, ANSI MH16.1 | Heavy structural steel channels for severe impact resistance. |
| 9. Nedcon (Steel Dynamics) | Netherlands | Custom Complex High Bay & Mezzanine Structures | EN 15512, FEM | Advanced finite element modeling for earthquake zones. |
| 10. Dexion (Gonvarri Material Handling) | Norway / Europe | Mobile High Bay & Adjustable Selective Systems | FEM, ISO 14001 | High-density motorized mobile racks mounted on embedded floor rails. |
Automation & ASRS Integration
Leading manufacturers like SSI Schaefer, Daifuku, and Rackzzszn design upright frame punchings down to millimeter tolerances. High bay automated systems eliminate operator manual handling but mandate zero-deflection beam joints to prevent crane shuttle collisions at heights exceeding 30 meters.
Structural Material Standards
Top-tier global suppliers utilize Q355B high-yield cold-rolled steel coils, exhibiting tensile strengths exceeding 490 MPa. This structural integrity guarantees that frame columns withstand severe axial compressive stress under double-deep load configurations without premature elastic buckling.
Surface Coating Resilience
High bay systems operated in cold storage environments (-30°C) or humid pharmaceutical warehouses require specialized surface treatments. Epoxy powder coating cured via multi-stage automatic spray tunnels or continuous hot-dip galvanizing ensures zero rust propagation and zero coating flaking.
Why Engineering Directors Choose Rackzzszn Storage Equipment
With over 23 years of specialized manufacturing experience in South China, Rackzzszn Storage Equipment Co., Ltd. operates a modern 20,000 m² production base capable of processing 50,000 tons of high-grade steel annually.
Full In-House Manufacturing
From raw steel coil slitting, automatic continuous roll-forming, and CNC punching to robotic welding and auto-packaging—our complete control eliminates middleman markups and guarantees strict batch-to-batch quality compliance.
South China's Longest Coating Line
We house South China's longest continuous automatic powder coating spray line. This advanced line allows applying up to three colors in a single pass with thermo-cured electrostatic powder, preventing color fading and impact chipping.
2D/3D BIM Design Engineering
Our in-house structural engineering team calculates building floor loads, clear height under roof trusses, column grid spacing, and forklift turning radii to supply custom 2D CAD layouts and 3D BIM models prior to order execution.
Future Procurement & Technology Trends (2025–2030)
Supply chain directors must look beyond basic load capacity. The next decade of high bay pallet racking will be defined by dynamic automation, energy-neutral warehouse designs, and digital twin monitoring.
1. Rise of ASRS & Pallet Shuttle Micro-Fulfillment
Manual forklift operation is rapidly transitioning to semi-automated Radio Shuttle systems and fully autonomous ASRS crane networks. High bay racks must now integrate embedded guide rails, laser reflectors, and photoelectric sensor cutouts to support continuous 24/7 dark warehouse operation.
2. Rack-Clad Building Structures (Self-Supporting)
Instead of erecting standard building walls and placing racks inside, global logistics developers are utilizing Rack-Clad Architecture. In these projects, the high bay racking frames form the structural load-bearing skeleton that directly supports the building roof and side cladding panels, drastically reducing construction timelines and tax liabilities.
3. Low-Carbon Steel & Eco-Coating Mandates
With international carbon-border adjustment mechanisms (CBAM) coming into force, top suppliers are utilizing recycled scrap steel processed through electric arc furnaces (EAF) and solvent-free zero-VOC powder coatings, enabling facilities to achieve LEED Gold warehouse certification.
