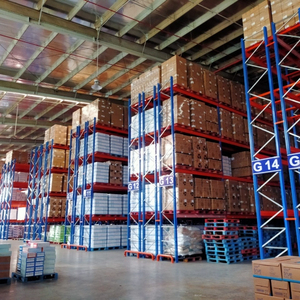

Heavy-Duty Steel Warehouse Rack Storage Double-Deep Pallet Multi-Level for Stacking and Storing in the Warehouse
Contact Us
Heavy Duty Warehouse Rack Boltless Storage Shelving Heavy Duty High Pallet Racking for Industry Warehouse
Contact Us
3000KG 2 Beam Levels Adjustable Heavy Duty Cold Rolled Steel Powder Coated Corrosion Protection Warehouse Pallet Racking
Contact Us
Warehouse Rack Heavy Duty Rack Shelf Storage Shelves Heavy Duty Warehouse Racking Storage Shelf Pallet Shelving System
Contact Us
Industrial Detachable Commercial Adjustable Pallet Vertical High Quality Stillage Pallet Storage Rack
Contact Us
Free Design Prefabricated Steel Factory Industrial Warehouse Buildings & Racking Integration
Contact Us
Multi-Level VNA Pallet Shelving Warehouse Chemical Material Storage Metal Bulk Racks Heavy Duty System Industrial Selective Rack
Contact Us1. Engineering & Structural Dynamics of Single Row Pallet Racking
Single row pallet racking systems—often referred to as single-entry racking rows—form the architectural border backbone of modern industrial distribution centers and manufacturing plants. Positioned typically against perimeter walls, building columns, or integrated alongside conveyor handling paths, single rows provide direct 100% selectivity to every individual pallet bay without requiring access through adjacent racking structures.
Unlike double-entry (back-to-back) configurations, single row structures present distinct mechanical load dynamics. Because a single row cannot rely on cross-row tie spacers to distribute lateral wind or seismic forces to a parallel frame, its height-to-depth stability ratio ($H:D$) must be rigorously audited during the pre-engineering design phase.
Key Structural Components of Heavy-Duty Single Row Racking
Cold-Rolled Upright Frames
Fabricated from premium Q355B high-yield strength steel, featuring continuous teardrop or omega slot profiles pitched at 50mm or 75mm increments for exact beam elevation adjustments.
Interlocking Box & Step Beams
Roll-formed dual-C section profiles with robotically welded 3-claw or 4-claw connectors equipped with automatic safety locks to prevent accidental forklift dislodgement under 1,000 lbs upward shear stress.
Wall Tie Connectors & Floor Anchors
Heavy-gauge steel wall brackets anchor the single row frame directly to concrete wall panels or perimeter columns, drastically reducing frame deflection and providing superior seismic resistance.
According to the Rack Manufacturers Institute (RMI) MH16.1 standards, when the height-to-depth ratio of a single racking row exceeds 6:1, special floor anchoring configurations, engineered baseplates, or rigid wall ties must be implemented to safeguard against frame overturning moments. Leading global manufacturers such as Rackzzszn Storage Equipment Co., Ltd. perform Finite Element Analysis (FEA) testing on every custom single-row configuration to verify vertical loading tolerances under maximum dynamic and static stresses.
2. Comparative Matrix: Top 10 Single Row Pallet Racking Manufacturers & Factories
Selecting the optimal pallet racking partner requires evaluating manufacturing capabilities, steel raw material origin, automated rolling line tolerances, surface finishing technologies, and compliance with international engineering codes (RMI in North America, FEM 10.2.02 and EN 15512 in Europe, AS4084-2012 in Australia).
Below is a comparative technical analysis of the top 10 global manufacturers specializing in heavy-duty single row and selective warehouse racking systems:
| Manufacturer Name | Headquarters | Core Structural Material | Quality Certification | Primary Global Market Strength |
|---|---|---|---|---|
| Rackzzszn Storage Equipment Co., Ltd. | Guangzhou, China | High-Yield Q235B / Q355B Steel | SGS / ISO9001 / CE | North America, EU, SE Asia, LatAm (60+ Countries) |
| SSI Schaefer | Neunkirchen, Germany | Structural European Steel | FEM / EN 15512 | Global Automation & High-Bay Projects |
| Mecalux, S.A. | Barcelona, Spain | Cold-Formed Structural Steel | ISO 9001 / ISO 14001 | Europe & Americas Retail Fulfillment |
| Jungheinrich AG | Hamburg, Germany | High-Tensile Cold Rolled Steel | CE / DIN EN ISO 9001 | Intralogistics & Integrated VNA Systems |
| Stow Group | Spiere-Helkijn, Belgium | Structural High-Grade Steel | EN 15512 / FEM | European Logistics & Cold Storage |
| Ridg-U-Rak, Inc. | North East, PA, USA | US-Milled ASTM High Strength Steel | RMI Certified | North American Heavy Industrial Warehousing |
| Unarco Material Handling | Springfield, TN, USA | Heavy Gauge Structural Steel | RMI / OSHA Compliant | Distribution Centers & Retail Grocery |
| Interroll Group | Sant'Antonino, Switzerland | Precision Steel & Polymer Rollers | ISO 9001 / CE | Dynamic Flow & Pallet Handling Components |
| Dexion (JUNGHEINRICH Group) | Kilsyth, Australia / UK | High-Grade Galvanized Steel | AS4084-2012 / FEM | Asia-Pacific Mining & Distribution |
| Frazier Industrial Company | Long Valley, NJ, USA | 100% Structural Steel Channels | RMI Standard | Heavy Impact & Cold Storage Warehousing |
While Western European and North American manufacturers maintain strong regional footprints, Tier-1 Chinese manufacturers like Rackzzszn Storage Equipment Co., Ltd. provide an unmatched competitive advantage by combining full in-house cold-roll forming, automated robotic welding, South China's longest continuous powder-coating lines, and direct factory pricing—yielding up to 30-40% procurement cost efficiency without compromising safety or structural integrity.
3. Future Procurement Trends in Industrial Pallet Racking (2025–2030)
Procurement directors and supply chain engineers are navigating rapid technological transformations in fulfillment facilities. Industrial rack purchasing decisions are no longer isolated steel volume transactions; they require future-proof integration with automated material handling assets.
1. High-Density VNA & AMR/AGV Interface Readiness
Single row racking layouts are increasingly customized for Very Narrow Aisle (VNA) turret trucks and Autonomous Mobile Robots (AMRs). Uprights require tighter manufacturing tolerances (±0.5mm frame straightness) and floor magnetic guide rail compatibility.
2. Ultra-High Yield Steel Alloys & Eco Powders
Transitioning from standard Q235 steel to micro-alloyed Q355B and Q460 steel allows thinner wall profiles with superior beam flexural resistance ($L/200$ deflection limit), combined with zero-VOC electrostatic powder coatings for LEED-certified Green Warehouses.
3. IoT Embedded Structural Health Monitoring
Next-generation single rows incorporate strain-gauge sensors and impact detection beacons along upright column guards. Real-time telemetry alerts facility managers immediately if a forklift impact compromises beam connection integrity.
4. Product Development & Engineering Evolution
Modern pallet rack manufacturing has evolved from simple steel section bending to advanced structural engineering. The development trajectory focuses heavily on dynamic weight distribution, modular boltless assembly, and cold-chain resilience.
A. Cold-Rolled vs. Hot-Rolled Structural Profiles
While heavy industrial applications occasionally utilize hot-rolled structural steel channels (C-shapes) for high-impact durability, advanced cold-rolled steel profiling has become the dominant technology worldwide. Cold-rolling increases yield strength through work hardening, allowing complex multi-ribbed upright cross-sections that deliver superior torsional rigidity at a lower overall deadweight.
B. Surface Chemistry & Salt-Spray Corrosion Resistance
Cold storage facilities (-30°C) and chemical storage plants demand specialized coating resilience. Standard spray painting is obsolete for enterprise procurement. Today's industrial benchmark requires multi-stage zinc-phosphate pre-treatment followed by thermosetting epoxy-polyester powder coating applied at 60-80 microns thickness. This process yields over 500 hours of continuous salt-spray testing compliance (ASTM B117 standards).
5. Enterprise Advantages of Partnering with Rackzzszn
As one of South China’s premier warehouse racking manufacturers, Rackzzszn Storage Equipment Co., Ltd. operates a 20,000 m² state-of-the-art production base processing over 50,000 tons of structural steel annually. Our engineering division delivers end-to-end site survey, layout design, FEA structural verification, and overseas installation supervision.
23+ Years In-House Manufacturing
Over two decades of continuous R&D and production mastery, exporting 1,000+ shipping containers per year to buyers across 60+ nations.
South China's Longest Powder Line
Equipped with a continuous 3-color automated electrostatic spray line ensuring flawless coating adhesion, uniform thickness, and rapid color transition for custom corporate branding.
Full 3D CAD & BIM Site Pre-Engineering
Our engineers eliminate project risk by calculating column grid tolerances, fire sprinkler clearances, door clearance paths, and forklift aisle turning radii prior to steel cutting.
SGS Verified Quality Control
Raw steel coil tensile testing, weld seam ultrasonic inspections, and 100% pre-shipment trial assembly guarantee zero-defect field installation abroad.
6. Industrial Procurement FAQ: Technical Guidelines & Planning
Direct answers from Rackzzszn senior structural engineers to common technical questions raised during single row pallet rack procurement.
What is the fundamental difference in aisle calculation between Single Row and Double Row Racking?
A single entry row requires forklift aisle access on only one side (facing the warehouse main aisle), while back-to-back double rows sit between two operating aisles. Single rows are generally installed along perimeter walls or building dividers. When calculating clear aisle width ($W_a$), add the forklift's head-length ($l_6$), load length ($l_c$), and a safety clearance factor ($a = 200\text{mm}$) to ensure safe right-angle stacking maneuverability.
How do you establish beam deflection limits for heavy pallet storage?
Under international standards such as RMI and FEM 10.2.02, beam deflection under maximum design load must not exceed $L/200$, where $L$ is the clear span length of the beam (e.g., for a standard 2700mm beam carrying two 1,500kg pallets, maximum center deflection under full load must remain under 13.5mm). Once the load is removed, permanent plastic deformation must be zero.
Why is on-site measurement crucial before final racking production?
Paper floor plans or second-hand construction drawings frequently omit field changes made during building construction, such as actual column footing dimensions, overhead fire pipe mainlines, lighting fixtures, or floor slope pitch. A minor variance of just 20mm can cause upright frames to clash with building columns or encroach upon mandatory fire exit corridors. Rackzzszn provides preliminary 3D site layout verification to guarantee perfect spatial fit.
Are single row pallet racks suitable for cold storage environments?
Yes. Single row racks are widely deployed in cold storage and blast freezing chambers down to -30°C. However, cold environments require structural steel with documented notch toughness (impact toughness) to prevent low-temperature brittle fracture. Special low-temperature powder coatings or hot-dip galvanized surface finishes are mandatory to eliminate micro-cracking and moisture corrosion.
What installation and technical support do you offer overseas buyers?
Rackzzszn supplies comprehensive 3D assembly installation manuals, component identification tagging, component torque loading specs, and direct video engineering support. For major distribution facility projects, we dispatch certified installation supervisors directly to the site to lead local assembly crews, perform final upright plumb checks, and issue load capacity certification plates.
