Executive Technical Report: Evaluating Top China Deep Lane Pallet Racking Suppliers
As global supply chains navigate volatile real estate prices, soaring labor costs, and compressed fulfillment cycles, industrial warehouse operators are re-engineering their logistics infrastructure. Maximizing volumetric storage efficiency—specifically vertical clear height and floor space optimization—has elevated Deep Lane Pallet Racking Systems into an essential capital investment for cold storage facilities, fast-moving consumer goods (FMCG) distribution centers, automotive parts hubs, and high-bay manufacturing warehouses worldwide.
Deep lane pallet racking refers to high-density storage configurations where pallets are stored two to twenty positions deep per channel, eliminating standard operating aisles required by traditional 100% selective racking. Selecting a qualified China deep lane pallet racking supplier requires a thorough technical evaluation beyond initial price per pallet position. Enterprise procurement teams must evaluate structural steel grades, engineering load calculations, automated shuttle compatibility, surface finish longevity, and compliance with international standards such as RMI (USA), AS4084-2012 (Australia), FEM 10.2.02 (Europe), and CE safety certifications.
Structural Taxonomy & Deep Lane Racking Technologies
Deep lane storage is not a monolithic category. Depending on stock-keeping unit (SKU) diversity, inventory turnover velocities, and material handling equipment (MHE), leading Chinese racking manufacturers engineer five core deep lane architectures:

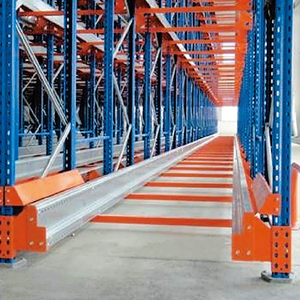

1. Radio Shuttle Pallet Racking
Utilizes semi-automated or fully automated battery-powered shuttles to carry pallets along internal depth rails. Offers maximum SKU throughput, eliminates forklift entry into channels, and supports both Last-In-First-Out (LIFO) and First-In-First-Out (FIFO) operations.
2. Drive-In & Drive-Through Racking
High-density structural system where reach trucks or counterbalanced forklifts drive directly into storage bays. Ideal for low-SKU, high-volume batch storage operating under LIFO (Drive-In) or FIFO (Drive-Through) protocols.
3. Push-Back Cart Racking
Engineered with nested rolling carts moving on inclined structural steel rails. As a new pallet is loaded, it pushes back the preceding pallet. Accommodates 2 to 6 pallets deep with immediate selectivity per aisle level.
Engineering Insight: Volumetric Storage Comparison
While standard Selective Pallet Racking provides 100% immediate pallet access, it achieves only 35%–45% warehouse floor utilization due to wide forklift aisle requirements. Conversely, Automated Radio Shuttle Deep Lane Systems achieve 75%–85% floor coverage and reduce forklift transit cycles by up to 40%, delivering a rapid payback period for high-volume cold storage and distribution environments.
Engineering Data: Technical Comparison Matrix
To assist warehouse planners and industrial procurement directors, the following matrix compares structural parameters and performance metrics across deep lane storage systems manufactured by premier Chinese suppliers:
| System Type | Storage Depth | Space Utilization | Operational Protocol | Forklift Risk Level | Structural Steel Grade |
|---|---|---|---|---|---|
| Radio Shuttle Racking | Up to 30+ Pallets | 80% – 85% | FIFO / LIFO (Configurable) | Very Low (No channel entry) | Q235B / Q355B Cold Rolled |
| Drive-In Racking | 4 to 10 Pallets | 65% – 75% | LIFO Only | High (Forklift drives inside) | Q235B Heavy-Duty Structural |
| Push-Back Cart System | 2 to 6 Pallets | 60% – 70% | LIFO | Low (Aisle loading only) | Q355B High Tensile Steel |
| Pallet Live Flow Racking | 2 to 20 Pallets | 70% – 80% | Strict FIFO | Low (Gravity roll beds) | Q235B / Q355B Structural |
| Deep Lane AS/RS Crane | Multi-Deep (20m+) | 85% – 90%+ | Fully Automated Software Control | Zero (Fully automated) | Q355B / High-Precision Profiles |
Enterprise Capabilities: Why Partner with Rackzzszn Storage Equipment
With more than 23 years of specialized engineering experience in warehouse racking manufacturing, Rackzzszn Storage Equipment Co., Ltd. has established itself as an authoritative leader among China deep lane pallet racking suppliers. Operating from a modern 20,000 square meter manufacturing facility in South China, Rackzzszn processes over 50,000 tons of structural steel annually, exporting custom storage systems to more than 60 countries across North America, Europe, Australia, and the Middle East.
Advanced Manufacturing Facilities
Equipped with 80+ state-of-the-art production machines, including continuous automated cold roll-forming lines, multi-head CNC punching units, and robotic laser welding stations that guarantee millimeter-level dimensional tolerances.
South China's Longest Spray Line
Features an automated, eco-friendly powder coating spray line capable of processing three custom colors simultaneously. Ensures superior corrosion resistance, high impact durability, and coating thickness between 80μm and 120μm.
SGS Verified Quality Control
Strict quality management systems audited by SGS. Raw steel coils are pre-tested for tensile strength and chemical composition, while completed upright frames undergo rigorous deflection and destructive load testing.
Unlike trading intermediaries, Rackzzszn provides end-to-end engineering consultancy, including full 3D CAD building layout simulations, structural static calculations, structural finite element analysis (FEA), export-grade protective packaging, and detailed installation guidance for international project sites.
Future Procurement Trends in Deep Lane Pallet Racking (2025–2030)
Procurement directors and warehouse logistics architects must align their equipment specifications with rapidly emerging technological and economic trends. Over the next decade, deep lane racking procurement will be defined by four structural shifts:
1. Migration from Passive Drive-In to Semi-Automated Shuttle Systems
While traditional drive-in racking offers lower initial capital expenditure, it incurs substantial long-term maintenance overhead due to frequent forklift collisions with rack uprights. Global buyers are increasingly transitioning capital budgets toward Radio Shuttle Racking. The elimination of forklift entry into racking bays drastically cuts structural repair expenses, enhances worker safety, and boosts pallet placement/retrieval speeds by 35%–50%.
2. Integration with Automated Guided Vehicles (AGVs) & AMR Fleet Systems
Modern deep lane racking systems are engineered with high-precision entry guides, optical sensor target plates, and strict beam deflection tolerances (L/300) to support seamless interaction with Autonomous Mobile Robots (AMRs) and AGV reach trucks. Deep lane suppliers in China are increasingly customizing rack depth rails with embedded RFID markers and laser alignment slots tailored for fully automated "dark warehouses."
3. Cold Chain Storage Density & Energy Decarbonization
Refrigerated and frozen storage facilities operate with intensive electrical power footprints. Storing air costs money. Deep lane shuttle racking allows cold room operators to achieve maximum volumetric pallet density, reducing the total refrigerated volume required per pallet position. By suppressing thermal leakage and minimizing wasted aisle space, cold storage developers reduce overall compressor energy consumption by up to 25% per pallet site.
4. High-Strength Low-Alloy (HSLA) Steel Utilization
To reduce shipping weight, container freight charges, and environmental carbon footprints, premier manufacturers are substituting traditional Q235 carbon steel with high-grade Q355B and Q460 cold-rolled structural steel. HSLA profiles achieve higher structural yield strengths with thinner wall thicknesses, maintaining certified beam and frame load capabilities while lowering raw material raw tonnage demands.
Frequently Asked Questions: Deep Lane Racking Procurement
While Radio Shuttle Racking carries a higher initial investment due to shuttle cars and specialized guide rails, it delivers a significantly lower TCO for high-density facilities storing bulk SKUs. By compressing operating aisles, shuttle systems increase warehouse floor space efficiency by up to 85%. Furthermore, because forklifts remain outside the racking channels, structural rack damage is virtually eliminated, reducing annual maintenance and repair costs by 70% to 90% compared to Drive-In systems.
Our engineering team requires verified building architectural drawings indicating clear height under roof trusses, concrete floor slab thickness and reinforcement specification, floor flatness (FF/FL numbers), column grid spacing, building expansion joints, dock door locations, and fire sprinkler clearances. A site measurement deviation of just 20 mm can disrupt column positioning or obstruct fire escape routes, making accurate preliminary site audits critical.
Yes. Rackzzszn designs specialized cold-store racking systems engineered to operate flawlessly in low-temperature cold rooms down to -30°C (-22°F). We utilize high-ductility steel grades to prevent cold embrittlement, combined with specialized low-temperature epoxy powder coatings and moisture-resistant electrical components for automated shuttles, ensuring durable performance under severe thermal cycling.
Our structural designs and load calculations comply strictly with global engineering standards, including the American RMI (Rack Manufacturers Institute) specification, European FEM 10.2.02 / EN 15512 codes, Australian Standard AS4084-2012, and European CE marking mandates. Finite Element Analysis (FEA) reports are available upon request for municipal building permit approvals.
All upright columns, structural beams, depth rails, and wire decks are bundled using heavy-duty steel strapping, protective plastic wrap, wooden dunnage, and reinforced corner protectors. Structural components are arranged systematically to maximize 40-foot High Cube (40HC) container volume and facilitate safe forklift unloading at the destination port.
Yes. We provide comprehensive installation support packages, including detailed step-by-step CAD assembly drawings, 3D structural connection diagrams, bolt torque specifications, and video walkthroughs. For major turnkey projects, Rackzzszn can dispatch senior installation engineers on-site to supervise local assembly crews and conduct final safety inspections.
