Architectural Dynamics of Drive-In Pallet Racking Systems
Modern warehouse asset managers, 3PL logistics executives, and cold-storage operators face a continuous spatial challenge: maximizing pallet position counts within fixed real estate boundaries while keeping civil construction overhead under control. As a premier China drive-in pallet racking supplier, Rackzzszn Storage Equipment Co., Ltd. presents this technical analysis to assist logistics directors in evaluating high-density storage frameworks.
Structural Mechanics & Load Distribution Analysis
Unlike selective pallet racks where horizontal load beams brace upright frames across every bay, Drive-In racking relies on continuous cantilevered pallet rails supported by heavy-duty upright columns. Because forklifts drive directly into the racking lanes, bottom horizontal beam ties are absent, introducing unique structural stability requirements:
- Top & Rear X-Bracing Systems: To compensate for the open forklift access portal, structural rigid towers are formed using heavy-gauge diagonal steel bracing along the top horizontal plane and rear vertical frames.
- Continuous Pallet Support Rails: Cold-rolled Q355B structural steel rails feature customized lead-in flares and heavy-duty side guides, ensuring smooth entry for forklift masts while bearing dynamic vertical loads.
- Column Guarding & Floor Anchoring: Floor-mounted anchor systems with dual-expansion bolts absorb lateral impacts, protecting upright columns against accidental forklift collisions during blind-alley reversing maneuvers.
| Storage Racking Architecture | Cubic Volumetric Efficiency | SKU Diversity Handling | Pallet Access Speed | Ideal Industrial Application |
|---|---|---|---|---|
| Drive-In Pallet Racking (LIFO) | 75% – 85% | Low to Medium (Bulk SKUs) | Medium (Guided Entry) | Cold Storage, Food & Beverage, Seasonal Goods |
| Selective Pallet Racking | 35% – 45% | 100% High Selectivity | High (Direct Access) | E-commerce Fulfillment, Multi-SKU Warehouses |
| Radio Shuttle Racking (Semi-Auto) | 80% – 90% | Medium (Batch Automated) | Very High (Robot Pick) | High-Throughput Distribution Centers, FMCG |
| Cantilever Racking System | 50% – 60% | Specialized Long Items | High (Side Access) | Pipes, Lumber, Structural Steel Profiles |
Why Top Global Buyers Partner with Rackzzszn
Founded in 2001, Rackzzszn Storage Equipment Co., Ltd. (Guangzhou Maobang) operates a modern 20,000 square meter manufacturing plant processing over 50,000 tons of high-tensile steel annually. As an SGS-verified manufacturer, we supply tailored heavy-duty storage racks across North America, South America, Europe, Asia, and Africa.
Our facility houses 80+ automated CNC punching, cold roll-forming, laser cutting, and robot welding lines. Crucially, we operate South China's longest continuous automated electrostatic powder coating spray line, enabling three-color simultaneous powder applications that deliver superior corrosion resistance, salt spray resistance, and color uniformity.
Verified Engineering Excellence
- Steel Grade Compliance: Certified Q235B and Q355B cold-rolled structural steel sourcing from tier-1 mills.
- International Design Standards: Structural calculations engineered strictly according to RMI, ANSI MH16.1, and FEM 10.2.02 standards.
- Full Process Control: In-house slitting, punching, forming, welding, surface treatment, and pre-assembly testing.
- Export Ready: Sea-worthy bundle packaging, customized container loading diagrams, and complete installation drawings.
Next-Generation Developments in Drive-In & High-Density Racking
As global supply chains shift toward automation, decarbonization, and space-optimized cold chains, procurement specialists must anticipate structural racking design evolutions over the coming decade.
1. Evolution from Manual Drive-In to Radio Shuttle Systems

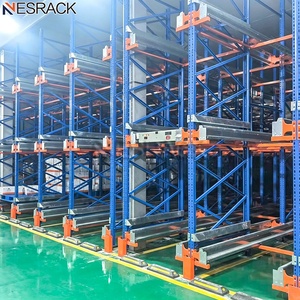

While traditional Drive-In systems require forklifts to travel inside the structure—increasing cycle times and risk of collision—modern warehouses are upgrading to semi-automated shuttle systems. A radio-controlled shuttle car carries pallets deep into channels, cutting material handling times by up to 50% and protecting rack uprights from lift truck damage.
2. Thermal Footprint Optimization in Cold Storage
Energy costs for deep-freeze storage (-25°C to -30°C) are rising sharply. High-density Drive-In and Drive-Through racking systems minimize refrigerated ambient space per pallet position, reducing thermal loss and electricity consumption by up to 35% compared to wide-aisle configurations.
3. AGV & Autonomous Reach Truck Compatibility
The integration of automated guided vehicles (AGVs) demands higher manufacturing tolerances. Future Drive-In rack procurement specifications mandate laser-guided alignment sensors, zero-tolerance column perpendicularity, and high-durability floor rails compatible with AGV wheel track paths.
4. Low-Carbon Steel & Circular Powder Coatings
Global enterprises under ESG reporting mandates require eco-certified steel supplies. Rackzzszn utilizes energy-efficient manufacturing processes, recyclable steel materials, and zero-VOC heavy metal-free powder coatings, aligning with green building certification standards (LEED/BREEAM).
Drive-In Pallet Racking Procurement FAQ
Expert answers to common engineering, structural, and procurement questions raised by warehouse facility directors.
What is the difference between Drive-In and Drive-Through racking?
Drive-In Racking: Operates on a single entry/exit point per bay, utilizing a Last-In, First-Out (LIFO) inventory system. Pallets are loaded and retrieved from the same front access aisle.
Drive-Through Racking: Features separate entry and exit aisles at opposite ends of the racking block, enabling a First-In, First-Out (FIFO) stock rotation pattern. Drive-Through structures require top bracing frameworks that allow lift trucks to travel completely through the lane.
Why is accurate site measurement essential prior to placing a Drive-In racking order?
Drive-In racking systems operate with minimal tolerances. Building deviations as small as 2 cm in floor flatness, column pitch, or overhead truss height can cause forklifts to misalign within lanes or strike upright columns. Rackzzszn conducts rigorous drawing checks and site verification to ensure structural uprights align seamlessly between building columns, fire suppression lines, and emergency pathways.
How do you prevent forklift impact damage in Drive-In lanes?
Because forklifts enter directly inside the rack structure, protection components are mandatory. We engineer systems with:
- Heavy-duty ground guide rails (angle iron or steel channel) running the length of the lane to physically guide truck wheels.
- Reinforced column protectors and wrapped corner guards at entry portals.
- Bright safety powder-coating finishes (RAL 2004 Orange / RAL 1018 Yellow) for enhanced operator visibility.
Can Rackzzszn Drive-In racking be used in low-temperature cold rooms?
Yes. Rackzzszn specializes in cold storage and blast-freezer racking systems operating down to -30°C. We select certified steel grades that preserve ductility at sub-zero temperatures, combined with low-temperature powder coatings and hot-dip galvanized finishes that resist moisture condensation and surface rust.
What technical data is required to request a customized Drive-In system quote?
To deliver a precise structural quote and CAD design, our engineering team requires:
- Warehouse architectural drawing showing building dimensions, clear ceiling height, slab thickness, and column grid layout.
- Pallet dimensions (Width x Depth x Height including cargo weight).
- Forklift truck model specifications, maximum lift height, and turning radius.
- Environmental conditions (ambient temperature, seismic zone parameters).
What international quality certifications do Rackzzszn products hold?
Our manufacturing plant is audited by SGS and ISO 9001 quality management systems. All structural designs undergo finite element analysis (FEA) and physical load testing in compliance with European FEM 10.2.02 guidelines, Australian AS4084 standards, and American RMI/ANSI MH16.1 structural steel racking specifications.
