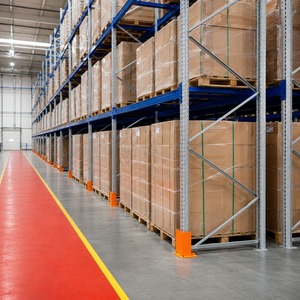

Pallet Racking System Heavy Duty Rack Industrial Pallet Storage Q235B Steel Tyre Rack
Inquire Now →

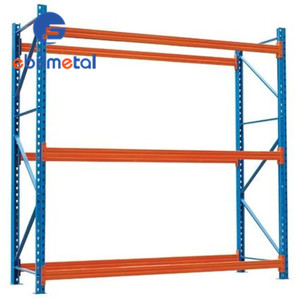

Heavy Duty Shelving Pallet Rack For Chemical & Industrial Storage
Inquire Now →
CASE CARTER OEM Warehouse Welded Movable Stacking Nestainer Rack
Inquire Now →

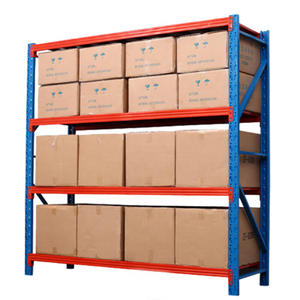

Roll Formed C Channel Selective Pallet Rack System Precision Engineering
Inquire Now →

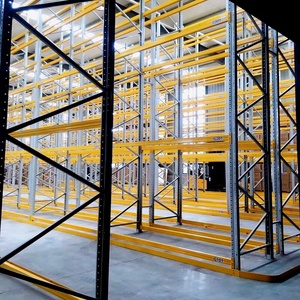

Very Narrow Aisle (VNA) Heavy Duty Selective Warehouse Racking
Inquire Now →

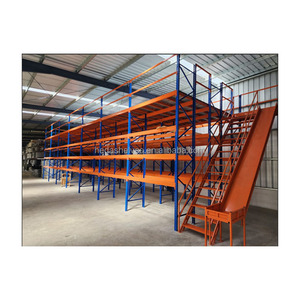

Warehouse Equipment Steel Platform Mezzanine Floor & Stacking Racks
Inquire Now →

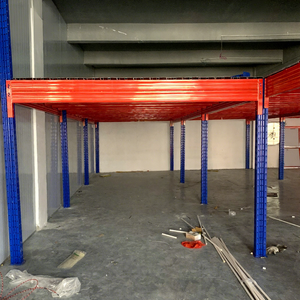

GXM Heavy Structural Mezzanine Rack Steel & Wood Floor System
Inquire Now →
Heavy Duty CE Certified 1500kg/Arm Cantilever Corrosion-Resistant Rack
Inquire Now →The Structural Mechanics of Chemical & Industrial Drum Storage Pallet Racking
Warehousing liquids, lubricants, petrochemicals, hazardous materials, and specialty ingredients in standard 55-gallon (208-liter) steel or high-density polyethylene (HDPE) drums introduces unique structural and environmental safety challenges. Unlike static palletized box loads, drum storage involves concentrated point loads, potential liquid dynamic shift (sloshing during forklift maneuvering), and strict compliance requirements for spill containment under OSHA 1910.106 and EPA 40 CFR 264.175.
As a premier China drum storage pallet racking supplier and exporter, Rackzzszn Storage Equipment Co., Ltd. combines heavy-gauge Q235B/Q355B structural steel roll-forming with customized drum cradles, welded spill-containment sumps, and corrosion-resistant thermosetting epoxy coatings. This technical whitepaper explores the critical design metrics, safety protocols, and future trends global procurement managers must evaluate when sourcing industrial drum storage systems from China.
Standard heavy-duty pallet racking is rated for Uniformly Distributed Loads (UDL). However, a fully loaded 55-gallon oil drum weighs approximately 220 kg to 300 kg. Storing four drums vertically on a single timber or mesh pallet creates four high-intensity point loads. Without structural cradle supports or reinforced load-beams (deflection ratio strictly capped at L/200 under EN 15512 standards), standard beam profiles experience localized elastic deformation, leading to premature fatigue and frame failure.
1. System Architectural Configurations for Industrial Drum Storage
Selecting the correct drum racking architecture depends on whether drums are stored vertically (upright picking and dispensing) or horizontally (high-density rack storage and gravity racking). Below are the three dominant engineering configurations manufactured by Rackzzszn:
Horizontal Drum Cradle Racking
Utilizes heavy-duty structural steel saddles or angled roll-formed cradles bolted directly onto step beams. Drums rest horizontally, allowing direct valve access for liquid dispensing while maximizing vertical space utilization by up to 300% compared to floor storage.
Vertical Pallet Rack with Spill Decking
Engineered for upright drum storage on custom pallets. Incorporates heavy-duty galvanized wire mesh decking or steel plate decking positioned directly over liquid-tight secondary containment trays (sump pallets) capable of holding 110% of the single largest drum's volume.
Automated Nestainer & Stacking Racks
Movable, stackable welded steel nestainer systems (such as the CASE CARTER series). Ideal for dynamic chemical processing plants where drum lots must be transported via forklift directly between storage bays and staging areas without un-racking individual units.
Engineering Selection Matrix: Drum Storage Racking vs. Standard Pallet Racks
To assist warehouse operations directors and engineering specifiers, Rackzzszn has compiled a structural comparative analysis highlighting performance parameters across drum-specific rack configurations.
| Configuration Type | Primary Load Type | Max Capacity / Level | Spill Mitigation Level | Forklift Clearance & Access | Target Applications |
|---|---|---|---|---|---|
| Horizontal Cradle Selective Rack | Horizontal Point Loads | 1,500 kg – 4,000 kg | High (Integrates Sump Trays) | Direct 100% Selectivity | Chemical Dispensing, Lubricant Storage |
| Vertical Drum Selective Rack | Vertical Concentrated Load | 1,000 kg – 3,000 kg | Maximum (Under-rack Spill Deck) | Direct 100% Selectivity | Hazardous Material (Hazmat), Raw Synthetics |
| Drive-In Drum Racking | Uniform High-Density | Up to 10,000 kg / Bay | Medium (Central Sump Channel) | LIFO (Last-In, First-Out) | Bulk Beverage & Food Ingredient Drums |
| Welded Movable Nestainer | Dynamic Stacking Load | 1,000 kg – 2,000 kg / Unit | Modular Pallet Sump Tray | Block Stacking / Flex Floor Plan | Cold Storage, Seasonal Chemical Warehousing |
Why Global Buyers Partner with Rackzzszn: Manufacturing & Export Strengths
Headquartered in Guangzhou, Guangdong, China, Rackzzszn Storage Equipment Co., Ltd. (formerly known in global markets as Guangzhou Maobang Storage Equipment Co., Ltd.) has grown over 23+ years into a premier B2B industrial storage rack manufacturer. Our factory operations combine advanced automation with rigorous quality control to deliver global-grade storage solutions.
20,000 m² Facility & 50,000 Tons Annual Output
Our expansive manufacturing complex houses over 80 state-of-the-art production machines, including automatic continuous cold roll-forming mills, high-precision CNC punch presses, laser cutting stations, and robotic beam-connector welding cells. We process over 50,000 tons of prime Q235B and Q355B structural steel annually.
South China’s Longest Automated Powder Coating Line
Chemical and drum storage environments demand superior surface protection against acid fumes, oil residues, and moisture. Rackzzszn operates the longest fully automated electrostatic powder spray line in South China. Featuring a multi-stage pre-treatment wash and three-color single-pass coating capability, our thermosetting epoxy-polyester coatings pass 500-hour salt spray corrosion tests.
End-to-End Engineering Support
From site survey verification to custom 2D/3D CAD layout design and finite element analysis (FEA) load calculations, our engineering team ensures your rack layout complies with local building codes, seismic zones, and forklift aisle clearances prior to steel cutting.
SGS Verified Quality & CE Compliance
Every batch of steel coil undergoes strict incoming tensile and yield strength inspection. Our finished racking uprights and step beams are certified compliant with European EN 15512, FEM 10.2.02, and American RMI specifications, audited annually by SGS.
Export Packaging Excellence
Exporting over 1,000 containers per year to 60+ countries across North America, South America, Europe, Asia, Africa, and Oceania. We utilize custom steel strapping, protective corner guards, moisture-barrier wrapping, and specialized wooden palletization to prevent transport damage during long ocean transit.
Future Procurement & Technology Trends in Industrial Drum Racking (2025–2030)
The global warehousing and logistics sector is experiencing rapid technological evolution driven by automation, safety regulations, and environmental sustainability. When procuring industrial drum pallet racking systems from China, enterprise buyers must align their infrastructure with the following emerging industry trends:
1. Integration with Automated Guided Vehicles (AGVs) & AS/RS
Chemical handling facilities are increasingly moving human operators away from high-hazard drum storage areas. Modern drum racking systems are now designed with precise millimeter-level tolerances to integrate seamlessly with stacker cranes and AGV forklifts. Features such as optical sensor reflective targets, guided bottom-rail entry channels, and ultra-flat floor anchor plates are becoming standard specifications in high-bay drum AS/RS warehouses.
2. IoT-Enabled Smart Spill Detection & Automated Fire Suppression
Next-generation drum racking designs incorporate integrated conduit channels and bracketry for IoT leak detection cables positioned inside secondary containment trays. Additionally, in-rack sprinkler pipe integration—compliant with FM Global guidelines—ensures that dedicated fire suppression nozzles are positioned directly above high-risk chemical drum levels rather than relying solely on ceiling sprinklers.
3. Eco-Friendly Hybrid Thermoplastic Coatings & Hot-Dip Galvanizing
With environmental, social, and governance (ESG) standards tightening worldwide, procurement directors are opting for VOC-free thermoplastic coatings and eco-galvanizing. Hot-dip galvanized (HDG) drum racks (conforming to ISO 1461) are seeing surge demand for outdoor liquid drum storage yards and cold-temperature storage facilities, offering 25+ years of maintenance-free rust protection.
4. Modular Cold-Formed High-Yield Steel Profiles
Advances in cold-roll forming technology allow manufacturers like Rackzzszn to utilize high-tensile Q355B and Q460 steel grades. These advanced profiles yield thinner wall thicknesses without sacrificing structural load-bearing capacity, reducing total frame weight, lowering international freight container shipping costs, and diminishing carbon footprints during raw material transport.
Frequently Asked Questions: Sourcing Drum Racking from China
What certifications should a reliable China drum storage pallet racking supplier hold?
How do you prevent beam deflection and dynamic liquid movement when storing 55-gallon drums?
Can secondary spill containment sumps be integrated into existing selective pallet racking?
What is the difference between Q235B and Q355B steel for heavy-duty warehouse racking?
Do you provide custom CAD engineering drawings and structural load calculations prior to ordering?
How does Rackzzszn ensure export containers are packed safely to prevent rust and transport damage?
