Featured Industrial Pallet Racking Systems
Explore engineered storage configurations built to European (FEM) and American (RMI) structural standards, direct from South China's premier manufacturing base.

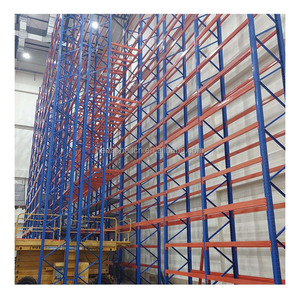

Double Deep Beam Industrial Pallet Racking System
Increases storage density by up to 50% compared to standard selective racks by storing pallets two-deep per aisle entry. Requires pantograph reach trucks.

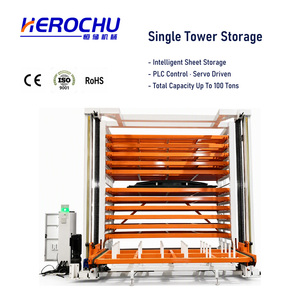

12 Layer Automated Drive-In Storage System
High-bay powder-coated steel racking designed for multi-level vertical retrieval. Ideal for high-volume, low-SKU bulk inventory storage from 2.5m to 6m clearance.

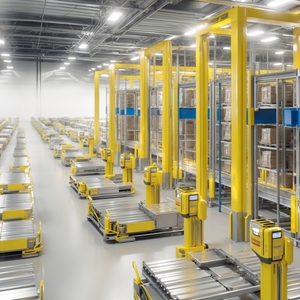

Pteris ASRS Radio Shuttle Pallet Racking System
Semi-automated radio control shuttle system offering automated pallet transport inside deep channels. Maximizes volume utilization while reducing forklift cycles.
Custom Heavy-Duty Long-Span Pallet Racking
High-load steel structural design tailored to complex building floor plans. Features fully adjustable beam profiles for flexible pallet configuration and heavy cargo unit loads.

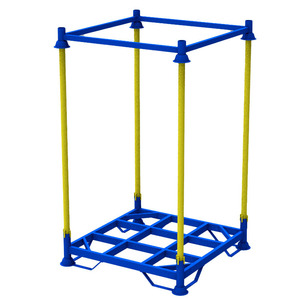

Movable Stackable Post Pallet Cold Storage Rack
Modular 4-high stackable post racks engineered for temporary or seasonal cold storage. Cold-rolled steel frame delivers rugged durability without permanent floor anchoring.

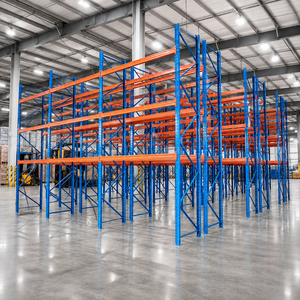

CE Certified Pharmaceutical Storage Beam Racking
Precision-engineered 3 to 9-level beam racking certified for pharmaceutical and sterile storage. Supports up to 2500kg per level with non-toxic electro-powder coating.
Medium Duty Long Span Rack with Steel Panels
Versatile boltless shelving system designed for non-palletized manual hand picking. Fitted with removable steel shelf panels for industrial spare parts and order fulfillment.
5-Layer Cold-Rolled Heavy Duty Bolt-Free Shelf
Anti-corrosion powder-coated steel shelving featuring 5 adjustable height levels. Optimized for rugged industrial plants, automotive parts, and high-moisture facilities.
Engineering Principles of FIFO Pallet Racking Systems
Why leading distribution centers and FMCG enterprises prioritize First-In, First-Out flow mechanics for perishable, date-sensitive, and high-velocity SKUs.
Gravity Flow Mechanics
FIFO Gravity Flow Racking utilizes inclined roller tracks (typically set at a 3° to 4° declination). Pallets loaded at the higher charge end automatically glide under gravitational acceleration toward the picking face. Integrated dynamic braking rollers regulate speed to a safe 0.3 m/s, preventing kinetic impact damage.
Pallet Separation Systems
To eliminate back-pressure at the discharge aisle, precision-engineered mechanical separators isolate the front pallet from the accumulating queue behind it. This permits uninhibited forklift extraction, safeguarding operators and structural uprights from pressure-induced jam points.
Volumetric Utilization Efficiency
By consolidating travel aisles into separate charge and discharge lanes, FIFO pallet flow systems increase floor area space utilization up to 85% compared to 35-40% in conventional selective pallet racking. This translates directly into lowered cost-per-pallet-position in climate-controlled environments.
System Performance & Financial Capital Expenditure Metrics
| Racking Architecture | Inventory Flow Type | Floor Space Utilization | Picking Speed / Efficiency | Relative CAPEX / Pallet | Optimal SKU Profile |
|---|---|---|---|---|---|
| Selective Pallet Rack | 100% Selective (Random) | 35% - 40% | High (Direct Access) | Low (Baseline) | High-SKU variety, low volume per SKU |
| FIFO Gravity Flow Rack | Strict First-In, First-Out | 75% - 85% | Extremely High (Dedicated Aisles) | High (Roller Beds & Brakes) | Perishables, FMCG, Pharma, Batch Expiry |
| Drive-In Pallet Rack | LIFO (Last-In, First-Out) | 65% - 75% | Moderate (Forklift enters lane) | Medium-Low | Low-SKU variety, bulk non-perishable goods |
| Radio Shuttle ASRS | Configurable FIFO / LIFO | 80% - 90% | Very High (Automated Transport) | High (Robotic Shuttles) | Cold storage, massive volume per SKU |
Why Direct Sourcing from Rackzzszn Delivers Sustainable Value
Based in Panyu District, Guangzhou, Rackzzszn Storage Equipment Co., Ltd. operates a 20,000 m² state-of-the-art production complex processing over 50,000 tons of structural steel annually.
Certified Metallurgy & Material Grades
We source certified cold-rolled structural steel (Q235B and Q355B equivalent to SS400 and S355JR). Our upright profiles undergo precision cold-roll forming with continuous 50mm pitch punchings, ensuring structural compliance under maximum permissible beam deflection tolerances ($L/200$).
South China's Longest Powder Line
Our facility features South China's premier automated electrostatic powder coating tunnel. Utilizing a multi-stage chemical pre-treatment (degreasing, phosphating, pure water rinse), our thermosetting epoxy-polyester powder coat achieves an average thickness of 60-80 $\mu m$ with 500+ hours of ISO 9227 salt spray resistance.
End-to-End Turnkey Engineering Services
From initial site survey and laser floor-flatness auditing to 2D/3D CAD space modeling, FEM structural analysis, export container load optimization, and overseas remote or on-site installation guidance — our engineering teams guarantee project compliance from design to sign-off.
Our 6-Step Manufacturing Quality Control Pipeline
Spectrometric chemical analysis and tensile yield testing on incoming coil stock.
Multi-station automated cold-roll profiling ensuring tight cross-sectional tolerances.
MIG robotic welding of beam end connectors to prevent structural fatigue failures.
Chemical bath degreasing and silane conversion coating for optimum paint adhesion.
High-temperature curing at 200°C delivering chip-resistant finish.
Sample structural assembly, load deflection validation, and export bundle strapping.
Future Procurement Trends in Industrial Storage Systems
How automation, cold-chain expansion, and seismic safety requirements are reshaping racking specifications for international buyers.
1. Hybrid Radio Shuttle & ASRS Integration
Traditional drive-in racking is rapidly being replaced by semi-automated and fully automated 4-Way Radio Shuttle systems. Buyers are seeking modular racking frames that can accept autonomous shuttles today and integrate seamlessly with vertical lifts and warehouse management software (WMS) tomorrow.
2. Cold-Chain Micro-Cracking Resilience
With global cold-chain logistics surging, racking deployed in -25°C to -30°C freezer rooms requires specialized steel chemistry. Future tenders strictly enforce modified alloy steel selection with controlled carbon equivalents and specialized low-temperature powder coatings to prevent structural hydrogen embrittlement.
3. IoT-Enabled Structural Health Monitoring
Modern mega-warehouses are incorporating wireless load-cell sensors and piezoelectric impact detection nodes directly into frame uprights. Real-time data alerts safety managers to forklift collisions or localized over-loading before catastrophic rack collapses occur.
Frequently Asked Questions for Sourcing Racking from China
Detailed engineering guidance answering key logistical, structural, and procurement inquiries.
Do you design custom racking layouts for my specific warehouse height and building columns?
Why is precise on-site verification critical before finalizing a racking procurement order?
Which racking configuration is recommended for long, heavy profiles like steel tubes, timber, or extrusions?
Can standard powder-coated pallet racks be deployed inside sub-zero cold storage facilities?
What installation guidance and engineering support do you provide for overseas projects?
How do dynamic speed controllers in FIFO gravity flow racks prevent pallet impact damage?
Optimize Your Warehouse Storage Density & Flow Efficiency
Send us your warehouse CAD floor plan or SKU specifications. Our structural design team will deliver a comprehensive floor plan layout, load profile analysis, and factory-direct price quotation within 24 hours.
