Featured High-Density Lane Racking & Storage Systems
Direct from South China's premier racking fabrication facility. Heavy-duty engineered systems designed to FEM/RMI structural compliance standards for bulk global shipment.
SUNLI Pallet AS/RS Smart Warehouse Automated Storage And Retrieval System With WMS/WCS Stacker Crane Racking Steel Shuttle Rack
Quality AUTOMATED Warehouse Storage ASRS Pallet package flow rack with slide roller WITH MES HUASHINE INTELLIGENT
Warehouse Shelves Pallet Rack Heavy Duty Q235B Steel Storage Rack Manufacturer FEM/RMI Certified Custom Beam Racking System
Heavy Duty Industrial Storage Warehouse Racks Pallet Racking Systems Attic Loft Mezzanine Floor Platforms

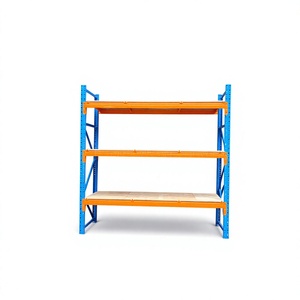

Customizable Boltless Shelving Steel Storage Stacking Racks Shelves Double Deep Selective Pallet Racking for Warehousing

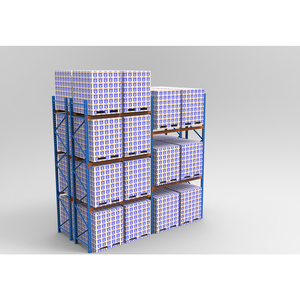

Heavy-Duty Steel Warehouse Rack Storage Double-Deep Pallet Multi-Level for Stacking and Storing in the Warehouse
Medium Duty Long Span Metal Pallet Rack for Warehouses for Cargo & Storage Factory Price
23+
Years Manufacturing Excellence
50,000T
Annual Steel Processing Capacity
60+
Export Destination Countries
1,000+
Containers Exported Annually
The Engineering Landscape of China's Lane Storage Racking Industry
Modern industrial supply chains demand maximal floor space utilization, accelerated throughput velocity, and uncompromising structural integrity. As global logistics hubs transition from conventional static storage to dense, automated configurations, Lane Storage Racking Systems—encompassing Drive-In, Double-Deep, Pallet Flow, Radio Shuttle lanes, and Automated Storage and Retrieval Systems (AS/RS)—have established themselves as the core architectural framework for high-density warehousing.
China has emerged as the global epicenter for the engineering, rolling, and fabrication of heavy-duty steel rack structures. Chinese manufacturers leverage advanced metallurgy (utilizing prime cold-rolled Q235B and high-yield Q355B structural steel), automated robotic welding cells, and continuous electrostatic powder-coating lines to produce systems compliant with international structural codes including FEM 10.2.02 (European Racking Federation), RMI (Rack Manufacturers Institute), and ANSI MH16.1.
Information Gain Insight for Logistics Directors:
Selecting a lane storage system requires balancing the Pallet Density Ratio against SKU Direct Selectivity. While traditional selective pallet racking yields 100% immediate selectivity at a lower storage density, automated lane systems (such as Radio Shuttle and 4D Shuttle Racking) increase cubic floor usage by up to 85% while drastically minimizing forklift transit aisles and operational energy consumption.
Technical Deep-Dive: Comparative Engineering of High-Density Lane Systems
To assist industrial buyers, procurement specialists, and warehouse engineers in selecting the exact structural configuration required for their facility, the matrix below details the key operational parameters across primary lane racking topologies manufactured in China:
| Racking Topology | Access Principle | Space Utilization Ratio | Pallet Load Capacity | Optimal Industry Application |
|---|---|---|---|---|
| Drive-In / Drive-Thru Racking | LIFO / FIFO | Up to 65–75% | 500 – 1,500 kg / level | Cold Storage, Food & Beverage, Bulk Batch Goods |
| Double-Deep Selective Racking | FILO (First-In, Last-Out) | Up to 55–65% | 1,000 – 3,000 kg / level | General Manufacturing, Consumer Packaged Goods (CPG) |
| Radio Shuttle Lane Racking | Software Configurable (FIFO/LIFO) | Up to 80–85% | 500 – 2,000 kg / shuttle unit | Pharmaceuticals, FMCG Distribution, Deep Frozen Storage |
| Gravity Pallet Flow Racking | Strict FIFO | Up to 70–80% | 300 – 1,200 kg / lane track | Perishable Goods, High-Turnover Buffer Zones |
| Automated AS/RS Stacker Crane Lanes | Fully Automated (WCS/WMS Driven) | Up to 85–92% | 500 – 3,000+ kg / load | E-Commerce Mega-Hubs, Automotive OEM Parts Distribution |
Structural Steel Integrity & Manufacturing Specifications
A primary failure mode in high-density lane racking systems stems from structural deflection under severe concentrated loading, or dynamic impact during pallet placement. Top-tier Chinese exporters adhere to rigorous metallurgical and structural engineering guidelines during raw material processing:
1. Cold-Rolled Profile & Punching Geometry
Upright columns are cold-rolled from high-tensile steel strip into continuous 9-fold to 13-fold profile cross-sections. This multi-flange profile geometry dramatically upgrades structural rigidity and buckling resistance. Keyhole, teardrop, or 75mm/50mm pitch diamond perforations are stamped via precision CNC hydraulic presses to ensure exact locking tab engagement with beam connectors.
2. Beam Connector Weldment & Safety Locks
Heavy-duty load beams are constructed from nested step-beams or box-beams continuously welded to multi-hook steel end connectors. Robotic MIG welding ensures complete penetration without thermal stress distortion. Each beam connection must incorporate an automatic drop-out prevention safety lock pin rated to withstand vertical dislodgement forces exceeding 1,000 N.
3. Surface Pre-Treatment & Powder Coating
Durability in humid or low-temperature environments relies on surface finishing. Leading Chinese suppliers operate automated 9-stage chemical pretreatment tunnels (degreasing, phosphating, and deionized water rinsing) preceding thermosetting epoxy-polyester powder coating. The resulting coating thickness of 60–80 microns guarantees corrosion resistance compliant with salt-spray testing standards ISO 9227.
Market Forward Analysis
Future Procurement & Technology Trends in Lane Storage Racking
As global supply chains confront escalating labor costs and shrinking warehouse footprints, the lane storage sector is undergoing rapid evolution driven by automation, material science, and sustainability mandates.
1. Convergence of 4D Pallet Shuttles & Flexible AI
Traditional 2D radio shuttles operating restricted to a single lane are rapidly giving way to 4D Pallet Shuttle systems. These intelligent units move laterally and longitudinally across specialized structural racking channels, autonomously changing levels via integrated lifts to optimize storage density and picking velocity.
2. IoT Structural Health & Seismic Monitoring
Next-generation high-bay lane installations are increasingly specified with embedded strain gauges, tilt sensors, and wireless micro-accelerometers. These IoT sensors provide real-time telematics regarding rack deflection, floor settlement, and micro-impacts from forklifts, facilitating preventative maintenance before structural fatigue occurs.
3. Green Steel & Low-Carbon Powder Coating
Global procurement teams in North America and Europe are prioritizing ESG metrics. Chinese exporters are adapting by incorporating scrap-recycled EAF (Electric Arc Furnace) structural steel and zero-VOC (Volatile Organic Compounds) bio-based powder coatings to significantly lower the embodied carbon footprint of large-scale projects.
Why Source Lane Storage Systems from Our Engineering Facility?
Leveraging over 23 years of specialized manufacturing experience, our state-of-the-art 20,000 m² manufacturing plant located in Guangzhou, South China, serves as an end-to-end partner for industrial buyers globally. We combine comprehensive structural design, in-house metallurgical testing, and continuous export delivery services.
In-House 3D CAD / BIM Layout Design
Our senior engineering team reviews building floor plans, floor slab load thresholds, fire suppression access routes, and handling machinery specifications to provide custom 2D structural drawings and 3D BIM models before production begins.
SGS Audited & ISO Quality System
Every batch of raw structural steel coils undergoes mechanical tensile and yield strength testing. Our plant is verified by SGS, maintaining ISO 9001 quality management and ISO 14001 environmental compliance throughout all fabrication stages.
South China's Longest Powder Spray Line
Operating a continuous automated electrostatic powder coating tunnel over 500 meters in length allows multi-color application in a single pass, ensuring superior adhesion, uniform finish, and high-volume order throughput.
Ready to Optimize Your Warehouse Capacity?
Submit your floor plan dimensions and load specs to receive a comprehensive engineering design quote within 24 hours.
Get a Quote
Buyer Support & Technical Insights
Frequently Asked Questions (FAQ) for Global Racking Procurement
Addressing core technical questions from logistics directors, supply chain managers, and structural engineers.
How do I determine whether Drive-In or Radio Shuttle racking is best for my facility?
Drive-In Racking requires forklifts to enter the physical racking lanes to place and retrieve pallets. This system has lower initial equipment capital costs but carries higher risk of structural rack damage from forklift collisions and lower operational speed.
Radio Shuttle Racking uses remote-controlled motorized shuttles running inside dedicated rails. Forklifts remain outside the racking structures, dramatically boosting loading speeds, reducing maintenance costs, and enabling deeper lanes (up to 40+ pallets deep). Radio shuttle is strongly recommended for high-throughput and cold storage facilities.
Radio Shuttle Racking uses remote-controlled motorized shuttles running inside dedicated rails. Forklifts remain outside the racking structures, dramatically boosting loading speeds, reducing maintenance costs, and enabling deeper lanes (up to 40+ pallets deep). Radio shuttle is strongly recommended for high-throughput and cold storage facilities.
Why is on-site structural investigation and slab loading measurement critical?
Structural racking transfers substantial point loads to the concrete floor slab via footplates. A deviation of as little as 2 cm in floor levelness or structural column positioning can prevent upright installation or compromise fire sprinkler clearance. We recommend verifying slab compressive strength ($N/mm^2$) and floor flatness tolerances (such as Superflat FM2 standards) before finalizing rack designs.
Can high-density lane racks be deployed in deep-freeze cold storage (-25°C to -30°C)?
Yes. Low-temperature environments cause low-grade steel to become brittle. We specify low-temperature structural steel grades (such as Q355D/E), specialized cold-resistant powder coatings, and specialized low-temp lithium battery packs for automated shuttle equipment to maintain continuous reliable operation without thermal degradation.
What international compliance certifications do your storage racks carry?
Our products are engineered in accordance with European FEM 10.2.02 and FEM 10.2.09 codes, US Rack Manufacturers Institute (RMI) standards, and ISO 9001 certified manufacturing protocols. Mill Test Certificates (MTC) according to EN 10204 3.1 are provided with all raw steel shipments.
How do you handle overseas installation guidance and technical support?
We provide complete 3D structural assembly drawings, step-by-step video installation instruction manuals, and remote video technical support. For major industrial logistics projects, experienced installation engineers can be dispatched to your site for on-site crew supervision, structural alignment checks, and safety sign compliance certification.
