High-Performance Single Selective & Heavy-Duty Racking Systems
Certified structural steel racking systems engineered for 100% SKU selectivity, maximum vertical utilization, and severe industrial load environments.
Pallet Pull-Out Units for Drawer-Style Pallet Access (Up to 1000kg Load)
Heavy Duty Adjustable 5-Layer Carton Gravity Flow Rack (CE Certified)
High-Capacity Vertical Sheet Metal Rack with Forklift Roll-Out Tray

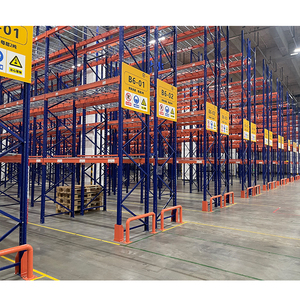

Heavy Duty Q235B Steel Pallet Rack System (FEM / RMI Certified)
Industrial Steel Pallet Rack with Wire Mesh Decking (500–3000kg/Level)
Industrial Freestanding Metal Shelving & Adjustable Stacking Racks
Boltless Adjustable Heavy-Duty Steel Storage Racking (500kg/Layer)
Certificated Industrial 5-Tier Heavy Duty Steel Shelving Racking Unit
1. Technical Engineering of Single Selective Pallet Racking Systems
Single Selective Pallet Racking stands as the foundational structural architecture for modern industrial logistics, distribution centers, and high-throughput warehousing. Designed to provide 100% immediate selectivity to every individual Stock Keeping Unit (SKU), single selective systems allow forklift trucks to access any pallet load directly without re-handling or moving adjacent units.
From a mechanical structural perspective, a single selective rack framework relies on cold-rolled structural steel upright frames (columns) interconnected by roll-formed horizontal load beams. The engineering calculation of beam profiles and upright frame depth depends directly on dynamic load parameters, seismic coefficients (Zone 1 through Zone 4 compliance), building floor slab loading limits, and total vertical lift clear height.
Q235B vs Q355B Steel Grades
High-tensile cold-rolled coil steel selected for optimal ductility and yield strength. Uprights cold-formed through multi-stage continuous profiling mills.
Automatic Safety Locks
Spring-loaded safety pins or automatic drop-locks engineered to prevent accidental beam dislodgement caused by forklift mast impact.
Pitch Hole Options
Precision punching options available in 50mm, 75mm, and 76.2mm (3-inch) pitch intervals, allowing flexible vertical beam height adjustment.
2. Racking Architecture Comparison Matrix: Selectivity vs. Storage Density
Selecting the correct warehouse storage system requires balancing floor space footprint utilization against handling accessibility. Below is a structural comparison compiled by Rackzzszn senior racking design engineers:
| Racking System Type | SKU Selectivity | Storage Density | Forklift Requirement | Ideal Application Profile |
|---|---|---|---|---|
| Single Selective Racking | 100% Direct Access | Moderate (~40-45%) | Standard Counterbalance / Reach Truck | High SKU count, fast rotation, diverse pallet sizes |
| Double Deep Pallet Rack | 50% Immediate Access | High (~55-60%) | Deep-Reach Pantograph Forklift | Multiple pallets per SKU, batch distribution |
| Drive-In / Drive-Thru Rack | Low (LIFO / FIFO) | Very High (~70-80%) | Standard Forklift inside rack channels | Cold storage, bulk raw materials, low SKU variety |
| Gravity Pallet Flow Rack | Strict FIFO Access | Very High (~75-85%) | Dedicated Loading & Unloading Aisles | Perishable foods, pharmaceuticals, high throughput |
| Very Narrow Aisle (VNA) | 100% Direct Access | High (~60-70%) | Specialized VNA Turret Truck / Wire Guided | High-ceiling logistics hubs with expensive floor space |
3. Enterprise Manufacturing Strengths & Quality Assurance
As one of South China’s preeminent heavy-duty rack original equipment manufacturers (OEM/ODM), Rackzzszn Storage Equipment Co., Ltd. (operating with 23+ years of industrial expertise) operates a modern 20,000 square meter production complex processing over 50,000 metric tons of steel per year.
South China’s Longest Automated Spray Line
Our plant houses a state-of-the-art multi-stage automatic electrostatic powder coating line capable of processing three colors simultaneously in a single continuous pass. This delivers superior coating thickness (60–90 microns), salt spray corrosion resistance (ASTM B117), and scratch durability.
Rigorous Quality Inspection & FEM/RMI Compliance
Every steel coil undergoes raw material tension testing, chemical spectrum analysis, dimensional tolerance check, and weld seam ultrasonic inspection. Systems comply with ISO 9001:2015, ISO 14001, FEM 10.2.02, and RMI ANSI MH16.1 design criteria.
4. Future Procurement & Technology Trends in Selective Racking (2025–2030)
Global logistics demand, e-commerce expansion, and warehouse automation are driving significant evolution in how single selective racking systems are specified, manufactured, and deployed:
Autonomous Mobile Robot (AMR) & AGV Hybrid Compatibility
Future selective racking procurement heavily emphasizes bottom-level clearance and floor-guided AMR integration. Special low-profile baseplates and guide rails enable seamless navigation for automated guided vehicles picking bottom pallets.
Eco-Friendly Powder Coatings & Carbon Traceability
International buyers demand zero-VOC epoxy powder coating systems and low-carbon footprint certified steel mill supply chains. Recyclable packaging and containerized load maximization reduce scope 3 freight carbon emissions.
Cold-Chain & Severe Environment Corrosion Resistance
With rapid expansion in cold-storage logistics (-30°C frozen facilities), specialized low-temperature structural steel grades (preventing cold embrittlement) and hot-dip galvanized finishes (HDG) are seeing standard adoption.
Smart Structural Health & IoT Strain Monitoring
High-bay selective racking installs are increasingly integrated with strain-gauge sensors and column impact monitoring tags that alert warehouse safety managers to structural deformation before catastrophic failure occurs.
5. Frequently Asked Questions (FAQ) — Single Selective Pallet Racking
Do you design custom single selective racking layouts for my warehouse space?
What steel grades and load capacity standards do Rackzzszn racks adhere to?
Why is accurate on-site measurement crucial before purchasing selective pallet racks?
Can Rackzzszn single selective racking be used in cold storage and freezer applications?
What installation support and export delivery assistance do you provide overseas?
Request Custom Engineering Drawings & Factory Direct Pricing
Contact our structural design team today to receive a complete 2D/3D selective racking proposal, load calculation report, and export catalog.
