CE Certified Compact Racking Systems for High-Density Storage
Explore our export-grade industrial pallet rack product lineup, structural options, and engineered high-density configurations optimized for tropical industrial environments.
Optimizing Industrial Footprints in Thailand’s Expanding Supply Chain Hubs
Why modern logistics facilities across Bangkok, Samut Prakan, Chonburi, and Rayong are replacing legacy selective racking with high-density compact racking architectures.
Eastern Economic Corridor (EEC) Real Estate Pressures
Industrial land prices in key corridors such as Chonburi and Rayong have experienced rapid appreciation, pushing prime logistics rents upwards of 160–220 THB per square meter per month. Operating inside EEC economic zones mandates maximizing internal warehouse cubic volume rather than expanding floor plates.
- Elimination of wasted aisle space
- Double-digit reduction in building footprint cost
- Optimal integration with narrow-aisle material handling equipment
Cold Chain Storage Efficiency in Tropical Climates
Thailand’s position as a regional agricultural and processed food export powerhouse (centered around Samut Sakhon and Samut Prakan) requires cold storage operating at -18°C to -25°C. Cooling empty air space generates massive electricity overheads.
- Up to 85% cubic space utilization with Radio Shuttle & Drive-In
- Direct reduction of refrigerated thermal loss per pallet position
- Extremely low energy consumption footprint per cubic meter
Automotive & Electronics Sector Manufacturing High-Bay Demand
As the "Detroit of Asia", Thailand’s automotive manufacturing supply chain in Rayong demands lean inventory management, heavy component load support, and zero-defect structural integrity under heavy continuous cycle operations.
- Heavy-duty load capacity up to 3,000 kg per pallet beam level
- Customized rack design for raw coil, engine, and stamping die storage
- Fully integrated mezzanine systems for sub-assembly lines
Information Gain: Space Utilization Matrix — Selective Racking vs. Compact Systems
Standard selective racking requires 3.0 to 3.8-meter forklift aisles, yielding a net warehouse footprint utilization of only 35% to 42%. In contrast, CE-certified Compact Drive-In, Push-Back, and Radio Shuttle systems eliminate operative aisles, raising footprint utilization to 75%–85% and increasing total pallet yield by up to 110% within the exact same structural warehouse envelope.
CE Certification & Structural Compliance Standards for Thailand Exports
Understanding the strict structural codes, European standard EN 15512, material yield criteria, and environmental protective finishes required for long-term operational safety.
| Compliance Standard | Technical Scope | Structural Significance for Thai Facilities | Rackzzszn Verification |
|---|---|---|---|
| EN 15512:2020 | Steel static storage systems - Adjustable pallet racking systems - Principles for structural design | Governs global safety factors, beam deflection limits (L/200), upright stability, and structural resistance under load combinations. | Certified by European Notified Bodies; verified structural calculations per project layout. |
| EN 15620 / FEM 10.2.02 | Tolerances, deformations and clearances for high-bay and VNA compact storage systems | Mandates strict upright verticality tolerances (<1/500) and beam deflection bounds to prevent automated shuttle / turret truck jams. | Laser-calibrated cold roll-forming lines ensuring exact pitch tolerances (50mm / 75mm pitch). |
| ISO 9227 / ASTM B117 | Corrosion resistance testing in artificial atmospheres (Salt Spray Test) | Crucial for Thailand’s high humidity coastal regions (Samut Prakan, Rayong, Chonburi) to prevent rust and delamination. | Powder coatings tested >500 hours salt spray; Hot-Dip Galvanized (HDG) coating >60–80 microns. |
| EN 15635 | Steel static storage systems - Application and maintenance of storage equipment | Ensures load signage compliance, safe operational procedures, and damage prevention criteria for warehouse safety audits. | Supplied with standard aluminum load warning plaques and comprehensive maintenance manuals. |
Humidity & Salt-Air Protective Engineering
Thailand experiences relative humidity levels exceeding 85% during monsoon periods. Rackzzszn utilizes a 9-stage pre-treatment wash process incorporating zinc-phosphate coating prior to electrostatic epoxy-polyester powder spraying. The finish is baked at 200°C to form a non-porous, chemical-resistant barrier that prevents under-film corrosion even in non-climate-controlled logistics parks along the Gulf of Thailand.
Seismic & Soft-Soil Foundation Considerations
The Greater Bangkok Basin features thick layers of soft alluvial clay. Structural racking design must account for slab deflection, anchor bolt shear resistance, and dynamic load amplification during low-frequency seismic activity originating in western Thailand or Myanmar. Our engineering team calculates footplate surface areas, expansion anchor depths (Hilti/Fischer specs), and diagonal bracing ratios tailored to local soil parameters.
High-Density Compact Racking Topologies Comparison
Compare operational characteristics, inventory turn methodologies, and space efficiency metrics to select the right compact system for your Thai operation.
| Racking Architecture | Inventory Flow | Space Utilization | Pallet Selectivity | Ideal Industry Applications in Thailand |
|---|---|---|---|---|

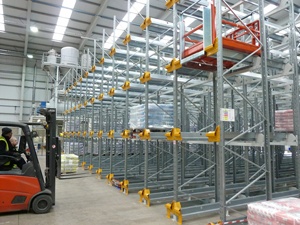

| Radio Shuttle Racking | FIFO or LIFO | 85% - 90% | Low (Per Lane) | Frozen Food, Seafood Exporters, Beverage Plants, Bulk FMCG distribution centers in Central Thailand. |
| Heavy Duty Drive-In Rack | LIFO | 75% - 85% | Low (Per Channel) | Seasonal agricultural cold storage, homogeneous raw chemical stock, packaging material warehouses. |
| Very Narrow Aisle (VNA) | FIFO (100%) | 65% - 75% | 100% Direct | Pharmaceutical warehouses, high-SKU electronics distribution, automotive spare parts hubs requiring fast picking. |
| Push-Back Racking (2-6 Deep) | LIFO | 70% - 80% | Medium (Per Lane) | Commercial staging areas, cross-docking distribution hubs, food processing buffer zones. |
| Mezzanine Over Racking | Custom / Manual | 150% - 200% (Floor Area) | High | E-commerce fulfillment centers (Bangkok suburbs), garment hanger racks, electrical assembly workshops. |
Navigating Thailand Import Logistics, Duty Privileges & BOI Rules
A practical engineering and trade guide for Thai procurement managers, factory directors, and logistics buyers importing heavy industrial racking from China.
Form E Duty Exemption under ACFTA
Under the ASEAN-China Free Trade Area (ACFTA), industrial steel racking structures (HS Code 7308.90) imported from China qualify for 0% Import Tariff Duty when accompanied by a valid Certificate of Origin (Form E) issued by Chinese Customs Authorities.
Benefit: Eliminates standard 10-15% import duties, drastically lowering total landed capital expenditure.
Port of Entry Shipping Logistics
Rackzzszn organizes optimized sea container loading directly from our Guangzhou facility to major Thai maritime gateways:
- Laem Chabang Port (TH LCH): Primary deep-water gateway for EEC industrial zones. Transit time: 5–7 days.
- Bangkok Modern Terminal / PAT Port (TH BKK): Ideal for central metro distribution projects.
BOI Tax Incentives Support
For enterprises operating under Thailand Board of Investment (BOI) privileges (such as Investment Promotion Zone incentives for smart warehousing or automation), we provide comprehensive commercial invoices, technical drawings, and packing lists matching BOI machinery import exemption documentation.
Frequently Asked Questions by Thai Industrial Buyers
Clear, direct answers regarding engineering designs, structural safety, customs clearance, and local installation guidance in Thailand.
Are your compact pallet racking systems fully compliant with CE and European structural safety standards?
How do we claim 0% tariff duty when importing racking systems from China into Thailand?
How does Rackzzszn handle installation support for warehouse projects located in Thailand?
1. Detailed Engineering Drawings: Every project receives 2D layout drawings, 3D structural models, frame elevation schematics, and step-by-step assembly manuals written in English.
2. Component Marking: All structural frames, beams, and bracing packages feature clear, color-coded identification tags corresponding directly to installation assembly diagrams.
3. Remote & Technical Guidance: Video installation reviews and live engineering technical support throughout your erection phase.
4. On-Site Supervision: For major projects in EEC industrial estates (Chonburi, Rayong, Samut Prakan), an experienced Rackzzszn project supervisor can be deployed on-site to oversee local assembly teams, perform laser verticality checks, and ensure torque setting compliance.
What surface treatment is best for humid or cold storage warehouses in Thailand?
Can you design custom compact racking layouts based on our building CAD drawings?
What parameters are required to generate an accurate structural proposal and quote?
1. Warehouse floor plan drawings (CAD or PDF showing dimensions, doors, and column positions).
2. Clear height under roof trusses or fire sprinkler lines.
3. Pallet specifications (Width x Depth x Height including cargo, plus total gross weight per pallet).
4. Forklift truck model, maximum reach height, and minimum aisle turning width requirement.
5. Warehouse operating temperature (Ambient, Air-Conditioned, or Cold Store).
Why Leading Enterprises Trust Rackzzszn Storage Equipment
Combining 23+ years of structural steel manufacturing excellence with full end-to-end export logistics capabilities.
20,000m² Dedicated Manufacturing Hub
Our modern production facility in Guangzhou features South China's longest continuous automated powder coating spray line (capable of running 3 colors simultaneously), multi-station CNC cold roll-forming mills, robotic welding cells, and automated punching machines handling over 50,000 tons of structural steel annually.
Traceable Quality Control & Steel Certification
We source prime hot-rolled coils exclusively from top-tier state steel mills (BaoSteel, Shougang Group). Every production batch undergoes strict tensile testing, weld penetration inspection, paint adhesion cross-hatch checks, and dimensional verification prior to export packing.
Global Export Experience (60+ Countries)
Shipping over 1,000 export containers per year, our logistics teams are experts in steel bundle protection, steel-strapped wooden pallet packaging, moisture-proof wrapping, and container space maximization—ensuring components arrive in Thailand pristine, untangled, and ready for efficient erection.
Request an Engineered Layout & CE Certified Quotation Today
Planning a new warehouse facility or upgrading existing storage space in Thailand? Connect directly with our Senior Racking Structural Engineers for a free CAD layout, load capacity calculation, and landed cost quote.
