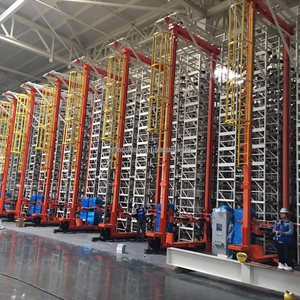

ASRS Shuttles Pallet Racking System Smart Warehouse Forklift Automation with Radio Control Cargo & Storage Equipment
Factory Direct High Density Semi-Automatic Pallet Shuttle Racking System
Jracking High-Strength Warehouse Rack AU Standard Pallet Racking System for Logistics Centers AS4084 Certified
CE Certified Steel Pallet Storage Shelving System Warehouse AU Pallet Racking for Australia Warehouse Use
Material Handling Rack Pallet Racking Supplies Industrial Shelving For Pallets
75mm Pitch Upright Multi Tier Load Bearing Double Row Pallet Storage Rack Manufacturing Plant Double Deep Pallet Racking
23+
Years Engineering Expertise
50,000t
Annual Steel Output
60+
Countries Exported
1,000+
Containers Shipped / Year
Industry Whitepaper & Economic Insight
Maximizing Warehouse Floor Yield in Peru: The Strategic Shift to VNA Racking
Analyzing the impact of real estate costs in Lima Metropolitano, Callao Port expansion, and Chancay Megaport on industrial storage design.
Industrial warehousing across Peru—specifically along the coastal logistics belt encompassing Callao, Lurín, Villa El Salvador, and Huachipa—is undergoing a structural evolution. Driven by soaring industrial land values (exceeding $180 to $350 per square meter in prime logistics parks) and the strategic inauguration of the Chancay Megaport (Puerto de Chancay), supply chain operators are forced to rethink structural efficiency. Traditional selective pallet racking layouts, which require aisle widths ranging between 3.5 to 4.2 meters to accommodate standard counterbalanced forklifts, result in over 50% of total floor footprint dedicated purely to vehicular movement rather than revenue-generating cargo storage.
Very Narrow Aisle (VNA) Pallet Racking Systems engineered by leading Chinese OEM manufacturers like Rackzzszn Storage Equipment Co., Ltd. represent the highest density non-automated solution available today. By compressing aisle clearance to a strict 1.5m – 1.8m width and extending vertical frame profiles up to 17 meters, VNA racking increases pallet storage density by up to 44% compared to standard selective systems and up to 90% compared to floor stacking. When operated with specialized VNA articulated turret trucks or wire-guided order pickers, Peruvian logistics operators achieve 100% direct pallet accessibility without sacrificing picking velocity.
Chancay Port Impact
With Chancay serving as South America's primary deep-water transshipment hub to Asia, warehouse throughput in Peru is expected to triple. VNA systems optimize container unloading cycles and high-bay buffer storage.
Peruvian Cold Chain Expansion
In high-cost refrigerated and frozen storage facilities across Peru (such as agro-export hubs in Ica and Piura), VNA racking dramatically lowers per-pallet energy consumption by maximizing volumetric fill ratios.
Cost Reduction per Pallet
By elevating rack heights to 12m+ and shrinking aisle width to 1.65m, capital investment in structural steel yields a 35% lower cost-per-pallet-position over a 10-year operational horizon in Peruvian commercial zones.
Engineered Reliability
Seismic Engineering Architecture: Meeting Peru's Zone 4 Building Codes
Peru is located on the highly active Pacific "Ring of Fire". Our structural racking components are engineered to withstand extreme seismic acceleration forces.
The primary concern for civil engineers and warehouse logistics directors importing Chinese industrial racking into Peru is structural dynamic response during seismic events. According to the Peruvian National Building Code (Norma Técnica de Edificación NTE E.030 "Diseño Sismorresistente"), coastal regions such as Lima, Callao, Paita, and Moquegua fall within Zone 4 (Zona 4 - Seismicity Very High), featuring a peak ground acceleration coefficient of Z = 0.45g.
Rackzzszn engineers utilize finite element analysis (FEA) software to perform linear static and dynamic response spectrum analyses on all VNA racking structures exported to Peru. Unlike static storage systems installed in low-seismicity regions, our VNA pallet racks for Peruvian client operations feature custom structural enhancements:
Heavy-Duty Footplates & Base Anchorages
Over-sized baseplates manufactured from high-tensile Q355B steel plate (8mm to 12mm thickness) anchored using heavy-duty chemical anchors or expansion bolts, transferring intense shear and overturning forces safely into the concrete slab.
Enhanced Vertical Frame Bracing
K-bracing and X-bracing configurations designed with heavy C-shaped structural diagonal profiles. Cross-aisle ties and top-tied structural portal frames maintain frame rigidity even under 15-meter tall top-heavy pallet loads.
FEM 10.2.02 & RMI Standards Compliance
Full design compliance with European FEM 10.2.02, EN 15512, and American RMI specifications, ensuring complete approval by Peruvian municipal inspectors (Municipalidad de Lurín, Callao, etc.) and INDECI safety audits.
Technical Decision Matrix
Industrial Warehouse Storage Systems Comparison
Compare VNA Pallet Racking against alternative high-density warehouse storage systems to select the optimal solution for your operational profile in Peru.
| Storage System Type | Aisle Width Required | Max Storage Height | Space Utilization % | SKU Direct Selectivity | Forklift Equipment Type Required |
|---|---|---|---|---|---|
| VNA Pallet Racking | 1.5m – 1.8m | Up to 17.5m | 85% – 90% | 100% Direct Access | Articulated / VNA Turret Truck / Wire-Guided |
| Standard Selective Racking | 3.5m – 4.2m | Up to 12.0m | 40% – 50% | 100% Direct Access | Standard Counterbalance / Reach Truck |
| Double Deep Pallet Racking | 3.0m – 3.4m | Up to 12.0m | 60% – 65% | 50% (LIFO per pair) | Deep Reach Truck / Pantograph Attachment |
| Drive-In Racking | N/A (Tunnel Access) | Up to 10.0m | 70% – 75% | Low (Strict LIFO) | Standard Counterbalance Forklift |
| Semi-Automatic Radio Shuttle | N/A (Main Aisle Only) | Up to 15.0m | 85% – 92% | Medium (FIFO / LIFO by Channel) | Standard Forklift + Automated Radio Shuttle |
| AS/RS Automated High-Bay | 1.4m – 1.6m | Up to 40.0m | 95%+ | 100% Automated Access | Automated Stacker Crane / Rail System |
Direct Manufacturer Capabilities
Why Buy Direct from Rackzzszn China Manufacturing Plant
Guangzhou Rackzzszn Storage Equipment Co., Ltd. (Maobang Group) provides end-to-end B2B structural steel fabrication, engineering, and international shipping.
Partnering directly with a top-tier Chinese racking manufacturer eliminates local Peruvian intermediary markups while granting custom engineering flexibility. Rackzzszn operates a 20,000 m² state-of-the-art production facility in Guangzhou, China, utilizing automated continuous roll-forming lines, robotic welding arms, and South China's longest continuous electrostatic powder coating line.
Premium Certified Steel Grades
We source raw coils exclusively from top-tier state-owned mills (BaoSteel, Shougang Group) in Q235B and Q355B structural steel grades. Mill test certificates (MTC) according to EN 10204 3.1 are supplied with every shipment.
Surface Treatment & Corrosion Control
Pre-treated through 9-stage automatic chemical washing and degreasing, followed by thermo-set epoxy-polyester powder coating (60-80 microns thickness) resistant to humid coastal climates in Callao and Lima.
Export Container Optimization
Bundled with steel strapping, protective plastic wrap, and timber dunnage engineered for 40ft HQ container loading. We maximize container volumetric capacity, lowering ocean freight costs per ton to Callao.
Import & Installation Roadmap
Step-by-Step Purchasing Guide for Peruvian Industrial Buyers
How Peruvian warehouse operations import, customs-clear, and assemble VNA racking systems efficiently from China.
1. Design & Engineering Approval
Submit your CAD building floorplan, clear height under joist, concrete slab thickness/strength (e.g., f'c 280 kg/cm²), and pallet load dimensions. Rackzzszn returns 2D/3D layouts & seismic calculation sheets within 48 hours.
2. Shipping & SUNAT Customs Clearance
Direct ocean freight routes from Shanghai/Ningbo/Guangzhou ports to Puerto del Callao or Puerto de Chancay. We provide complete documentation (Commercial Invoice, Packing List, Bill of Lading, Certificate of Origin Form E/Peru-China FTA).
3. Site Installation & Floor Flatness
For VNA systems, floor levelness is critical (EN 15635 Superflat standard). We provide detailed structural assembly drawings, video walkthroughs, and technical support. Local installation supervisor dispatch is available upon request.
Technical FAQ
Frequently Asked Questions for Peruvian Engineers & Procurement Managers
Clear, authoritative responses to the most critical technical and commercial inquiries when specifying Chinese VNA racking systems.
How do Rackzzszn VNA racking systems comply with Peru's seismic code NTE E.030?
Our engineering division calculates structural rack stability under Zone 4 seismic criteria (Z=0.45g) as mandated by Peruvian national code NTE E.030. We increase upright column profile dimensions (e.g., 90mm, 100mm, or 120mm front-face profiles with steel gauge up to 2.5mm or 3.0mm Q355B steel), apply heavy-duty frame diagonal bracing, and supply enlarged footplates with dual Hilti-grade expansion or chemical anchors per column base to safely absorb lateral seismic shear forces.
What is the concrete floor flatness requirement (FF/FL) for operating VNA Turret Trucks in Peru?
VNA turret trucks operates at height up to 17 meters in aisles only 1600mm wide; a minor floor elevation differential of 2mm at slab level translates to a sway of several centimeters at top beam elevation. We recommend a floor tolerance meeting VDMA 36610 or DIN 15185 Superflat requirements (FF 50 / FL 50 minimum). If your existing slab in Lurín or Callao does not meet this tolerance, we advise installing mechanical guide rails anchored to the floor or magnetic/inductive wire guidance systems embedded in laser-grinded floor channels.
What import tariff rates apply to Chinese pallet racking entering Peru under the China-Peru Free Trade Agreement?
Under the ratified China-Peru Free Trade Agreement (Tratado de Libre Comercio China-Perú), structural steel racking under HS Code 7308.90 benefits from 0% preferential import tariff (Arancel Ad-Valorem) when accompanied by an official Form E Certificate of Origin issued by Chinese customs authorities. Buyers are only required to pay local IGV (Impuesto General a las Ventas 18%) and IPM (Impuesto de Promoción Municipal), which are fully deductible as fiscal credit for registered Peruvian corporations (RUC 20).
Can Rackzzszn supply custom wire decking, timber decking, or steel drop-in panels for VNA racks?
Yes. We manufacture heavy-duty welded wire mesh decking with galvanized or powder-coated finish, equipped with structural channel supports that rest securely on step beams or box beams. Wire mesh decking enhances warehouse safety by preventing broken pallet falls, while allowing 70%+ open water penetration required by Peruvian NFPA/INDECI fire sprinkler regulations.
What is the typical manufacturing lead time and transit duration to Puerto del Callao?
Factory production for standard VNA project orders (2 to 10 container loads) requires 15 to 25 days from final CAD approval. Direct ocean shipping lines (COSCO, Maersk, CMA CGM) operating direct routes from Shanghai/Ningbo/Guangzhou to Callao or Chancay average 28 to 35 transit days. Total timeline from PO issuance to warehouse floor delivery in Lima is approximately 60 days.
Accelerate Your Warehouse Capacity in Peru Today
Contact our senior structural engineering team to receive a free 2D/3D VNA rack layout drawing, seismic static load analysis, and competitive direct factory quotation within 24 hours.
