Featured Dynamic Pallet Racking Systems & Machinery
Engineered for maximum spatial density, rapid throughput, and cold chain performance across European logistics centers.
Berlin-Brandenburg Industrial Logistics: The Shift to High-Density Dynamic Racking
Analyzing warehouse cost economics, structural standards, and operational velocity in Germany’s capital logistics region.
The Berlin-Brandenburg metropolitan region—anchored by major logistics parks such as GVZ Großbeeren, GVZ Wustermark, and GVZ Freienbrink—has experienced an unprecedented surge in industrial land valuation (€/sqm) and warehousing operational costs. Driven by rapid expansion in e-commerce fulfillment, automotive supply chains (including high-capacity battery logistics near Grünheide), and pharmaceutical distribution, warehouse managers in Berlin are forced to maximize vertical storage density while maintaining rigorous safety standards.
Traditional static selective racking, while offering 100% immediate pallet access, consumes up to 60% of total floor space in operating aisles. In contrast, Dynamic Pallet Racking Systems—comprising Radio Shuttle Racking, Push-Back Cart Systems, Gravity Pallet Flow Racks, and Automated Storage and Retrieval Systems (ASRS)—transform open aisle space into valuable storage positions. As direct manufacturers and international exporters, we supply certified, heavy-duty dynamic storage systems directly engineered for the structural requirements of Berlin industrial properties.
Escalating Rent per M² in Berlin GVZ Hubs
Industrial real estate prime rents in the Berlin outer ring have risen sharply. Dynamic high-density racking increases cubic space utilization up to 85%, slashing the overhead cost per pallet position.
Cold Chain Energy Efficiency & ESG
Refrigerated logistics hubs operating at -25°C in Brandenburg require massive thermal energy. Automated shuttle racking compacts storage, reducing refrigerated air volume and cutting power costs by up to 35%.
Strict DGUV 108-007 & DIN EN Compliance
German workplace safety authorities require strict load deflection guarantees, upright protection, collision resistance, and certified steel grades (Q355B/S355 JR) under EN 15635 regulations.
Engineering & Architectural Specs of Dynamic Systems
Comparing structural mechanics, pallet transport technology, and operational throughput for enterprise buyers.
| Racking System Type | Space Utilization % | Pallet Management (LIFO/FIFO) | Handling Speed & Throughput | Ideal Berlin Industry Scenario | Action |
|---|---|---|---|---|---|
| Radio Shuttle Racking | 80% – 88% | Both LIFO & FIFO Flexible | Ultra High (Automated Shuttle @ 1.2m/s) | Deep Freeze Storage, FMCG, Beverage Distribution | Inquire Now |
| Push-Back Cart Racking | 70% – 78% | LIFO (Last-In, First-Out) | High (Gravity Cart Return, No Forklift Entry) | Medium SKU Diversity, Bulk Manufacturing | Inquire Now |
| Gravity Pallet Flow Rack | 75% – 85% | Strict FIFO (First-In, First-Out) | High (Controlled Speed Rollers & Brakes) | Pharmaceuticals, Perishable Foods, Date-Sensitive Stock | Inquire Now |
| Automated ASRS Flow Racking | 90% – 95% | Computer-Controlled Software (MES/WMS) | Maximum (Unmanned Crane & Conveyor Integration) | High-Bay Logistics Centers, Smart E-Commerce Hubs | Inquire Now |
| Heavy-Duty Cantilever Racking | 65% – 75% | Direct Selective Access | Medium to High (Side-Loading Reach Trucks) | Timber, Extruded Aluminum, Steel Pipes & Construction | Inquire Now |
Radio Shuttle Racking Mechanics
Our Radio Shuttle systems utilize precision roll-formed upright profiles manufactured from high-tensile Q355B structural steel. The self-powered shuttle robot operates within dedicated guide rails, executing wireless commands via RF remote or integrated Siemens PLC controllers. Capable of lifting and moving Euro-pallets (EPAL 1: 800x1200mm and EPAL 2: 1000x1200mm) weighing up to 1,500 kg per position at speeds up to 1.2 m/s, these systems eliminate forklift aisle travel inside the racking block entirely.

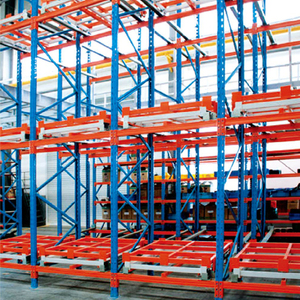

Push-Back & Gravity Flow Dynamics
Engineered with nested steel carts riding on inclined structural beams (typically set at a 3% to 5% pitch), our Push-Back systems allow up to 6-deep pallet storage. Forklifts push the leading pallet back to load subsequent units. For gravity flow systems, heavy-duty brake rollers and safety end-stops guarantee smooth, controlled gravity movement of pallets from the loading face to the picking face, satisfying strict FIFO rotation mandates in German pharmaceutical storage.
Localized Application Scenarios in Berlin & Brandenburg
How specialized engineering meets the demands of key regional industries.
1. Cold Storage Hubs in GVZ Großbeeren
Operating in low-temperature cold rooms down to -30°C requires specialized powder coating anti-cracking technology and low-temperature alloy steel grades. Our Shuttle Racking maximizes frozen cubic storage for major grocery and food distribution networks serving Berlin’s urban center.
2. Automotive Supply Chain in Grünheide
Automotive tier-1 suppliers delivering components to regional electric vehicle manufacturing rely on high-capacity Heavy-Duty Push-Back and Pallet Racks equipped with heavy wire mesh decking to support non-standard metal stillages and heavy battery containers.
3. E-Commerce & 3PL Hubs in Wustermark
High SKU velocity and intense order picking schedules demand combined Mezzanine Platforms integrated with Widespan Shelving and Automated Pallet Flow lanes to streamline reverse logistics and fulfillment for fast-moving retail items.
Why Berlin Logistics Leaders Partner with Rackzzszn
23+ years of dedicated steel racking manufacturing, factory-direct pricing, and end-to-end export execution.
Direct Manufacturer Infrastructure & Export Excellence
As one of South China’s premier industrial warehouse racking manufacturers, Rackzzszn Storage Equipment Co., Ltd. operates a 20,000 m² state-of-the-art facility housing over 80 automated roll-forming lines, robotic welding stations, and the longest continuous electrostatic powder coating line in the region.
Processing more than 50,000 tons of structural steel annually, we export over 1,000 shipping containers per year to clients across 60+ nations. Our in-house engineering team works directly with German project managers, structural engineers, and logistics planners to deliver tailored 2D/3D CAD layouts, structural load calculations, and comprehensive installation documentation.
Key Production & Quality Highlights
- SGS Verified Factory: Rigorous ISO 9001:2015 quality management audited factory floor.
- High Steel Grade Standards: Certified Q235B and Q355B high-yield structural steel.
- Electrostatic Powder Coating: Epoxy powder finishes tested for 500-hour salt spray corrosion resistance.
- Structural Design Verification: Fully compliant with European FEM 10.2.02 and DIN EN 15635 standards.
- Seamless Logistics to Germany: Direct ocean freight to Hamburg/Bremerhaven with door-to-door (DDP/FOB) customs delivery to Berlin.
Frequently Asked Questions by Berlin Logistics Buyers
Everything you need to know about structural safety, local regulations, customization, and export delivery.
Yes. All structural uprights, beams, shuttle rails, and cart assemblies supplied to the German market are engineered in strict compliance with DIN EN 15635 and FEM 10.2.02 codes. We provide comprehensive load-capacity warning plates (Belastungsetiketten) required by DGUV Regulation 108-007.
Heavy-duty shuttle racking systems create high point loads under upright footplates. Typically, a concrete floor slab rating of C20/25 to C30/37 with a thickness of 180mm–250mm and minimum slab point load capability of 50 to 80 kN per upright is recommended. Our engineering team provides exact point load calculations for your local structural engineer (Prüfstatiker).
Absolutely. Our specialized Cold Storage Radio Shuttles are fitted with low-temperature Lithium Iron Phosphate (LiFePO4) battery packs, thermal heating elements for internal electronics, and IP65-rated moisture protection engineered specifically to operate reliably in temperatures as low as -30°C.
We offer complete export solutions including FOB, CIF, and DDP (Delivered Duty Paid) to your warehouse location in Berlin or Brandenburg. Products are securely packed in steel-banded export crates to prevent transit damage. We provide 3D step-by-step assembly drawings, video guidance, and remote engineering support or on-site installation supervisors upon request.
Production lead time at our factory typically spans 14 to 20 days depending on project scale. Ocean shipping from South China ports to the Port of Hamburg takes approximately 28 to 35 days, followed by 2–3 days inland rail/truck transit directly to your facility in Berlin.
Building drawings often omit retrofitted piping, overhead lighting, HVAC ductwork, or column deviations. In dynamic systems, even a 20mm discrepancy can interfere with shuttle rails or block required fire safety sprinkler clearances. We verify all 3D building dimensions prior to final roll-forming production.
Optimize Your Berlin Warehouse Space with Engineering Specialists
Submit your facility dimensions, floor plan drawings, or pallet load specifications today. Our senior racking engineers will return a complete 2D/3D layout design and factory-direct quotation within 24 hours.
