Stainless Steel Selective Pallet Rack System
Engineered for food processing and pharmaceutical clean rooms. Features anti-corrosive stainless construction, seamless hygienic welds, and easy-clean sanitation profiles.
Factory-Direct Product Portfolio
High-Density Lane Storage & Heavy-Duty Warehouse Racking
Engineered to DIN EN 15512 and FEM 10.2.02 standards. Fully customizable configurations optimized for Port of Hamburg logistics operations, FMCG distribution, and cold storage facilities.
Heavy Duty Adjustable Beam Racking for Logistics
Customizable size pallet racking with multi-layer epoxy powder coating. Designed for high throughput distribution centers requiring flexible beam adjustments.

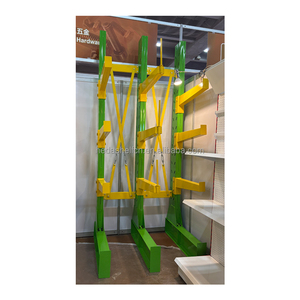

Warehouse Cantilever & Long Material Stacking Rack
Column-free front access ideal for timber, steel pipes, aluminum extrusions, and heavy profiles. Available in single and double-sided structural steel configurations.
Heavy Duty Boltless High Pallet Racking
Rapid interlock assembly system supporting extreme vertical load capacities. Engineered for high-bay industrial storage and heavy manufacturing parts storage.

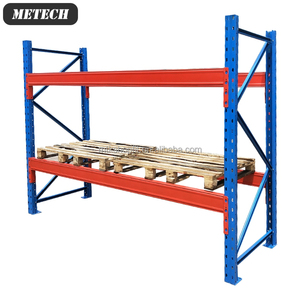

Teardrop Style Upright Frames & Wire Decking
Versatile metallic racking with uprights in 2m to 3.6m heights. Paired with heavy-duty wire mesh decking for improved overhead fire sprinkler ventilation.
Heavy Duty Multi-Tier Warehouse Storage Shelving
Modular pallet shelving system maximizing vertical building volume. Features high structural rigidity and customizable beam spacing for dense inventory profiles.
Very Narrow Aisle (VNA) Steel Pallet Racking
Ultra-dense storage layout for e-commerce fulfillment centers. Minimizes aisle width requirements to 1.5m, maximizing floor space utilization by up to 45%.
Cold Storage Galvanized Anti-Corrosion Racking
Hot-dip galvanized heavy-duty structural steel built for sub-zero (-28°C) frozen environments. Resistant to condensation, humidity, and chemical exposure.
Technical Engineering Whitepaper
Lane Storage Racking Systems: Maximizing Volume in Hamburg’s Logistics Hubs
Hamburg stands as Northern Europe’s primary logistical gateway. As the third-largest container port in Europe, the metropolitan area—spanning key industrial zones such as Altenwerder, Waltershof, Billbrook, and Harburg—faces immense pressure regarding warehouse floor space cost per square meter. In high-density logistical ecosystems, traditional selective pallet racking often yields insufficient spatial efficiency, dedicating up to 60% of vertical warehouse footprint strictly to forklift access aisles.
For modern logistics operators, 3PL providers, and cold storage facilities across Hamburg, **Lane Storage Racking Systems** (comprising Drive-In, Drive-Through, and Automated Pallet Shuttle Lane Systems) represent the engineering baseline for achieving maximum cubic space utilization. By eliminating intermediate aisles, lane storage architecture allows forklifts or automated shuttles to drive directly into deep structural channels, consolidating multiple pallet positions into a continuous structural block.
Key Spatial Efficiency Metric:
While standard selective racking delivers a space utilization efficiency of ~40-50%, an engineered Lane Storage Racking System achieves up to **85% floor space utilization** and up to **65% total building volume utilization**. For facilities operating near the Port of Hamburg, this equates to a dramatic reduction in operational overhead per stored pallet.
85%
Spatial Footprint Density
50,000T
Annual Steel Processing
-28°C
Cold Storage Rated
23+
Years Engineering Excellence
Architectural Variations of Lane Storage Racking
Selecting the optimal deep-lane structural design depends entirely on your material throughput, inventory rotation model (FIFO vs. LIFO), and load weight dynamics. As a direct factory manufacturer and technical supplier servicing Hamburg, Rackzzszn engineers customized lane storage solutions across three primary configurations:
1. Drive-In Lane Racking (LIFO)
Forklifts enter the racking structure from a single access aisle to load and retrieve pallets resting on continuous side support rails. Operates on a Last-In, First-Out (LIFO) principle. Ideal for high-density storage of uniform SKUs with non-time-sensitive shelf life.
2. Drive-Through Lane Racking (FIFO)
Designed with separate loading and retrieval aisles on opposite sides of the rack block. Allows First-In, First-Out (FIFO) inventory flow. Crucial for food manufacturing, pharmaceuticals, and date-sensitive fast-moving consumer goods (FMCG).
3. Radio Shuttle Deep-Lane Systems
Integrates semi-automated shuttle carts inside the lane channels. Eliminates the need for forklifts to drive into the rack structure, drastically reducing structural impact risks, accelerating cycle times, and allowing lane depths exceeding 30+ pallets.
Technical Comparison: Lane Racking Systems vs. Standard Racking
To assist logistics directors and warehouse planners in Hamburg with procurement evaluations, the table below provides structural, operational, and financial comparisons across key storage metrics:
| Performance Metric | Drive-In Lane Racking | Radio Shuttle Lane System | Standard Selective Rack |
|---|---|---|---|
| Space Utilization Efficiency | 75% – 85% | 80% – 90% | 40% – 50% |
| Inventory Management Model | LIFO (Last-In, First-Out) | FIFO & LIFO Convertible | 100% Random Access |
| Maximum Lane Storage Depth | 6 – 10 Pallets Deep | 20 – 40+ Pallets Deep | 2 Pallets (Double Deep) |
| Forklift Damage Risk | Moderate (Entry required) | Minimal (Shuttle handles lane) | Low (Aisle operation) |
| Cold Storage Operating suitability | Excellent (-28°C rated) | Superior (High energy savings) | Sub-optimal (Wasted space) |
| Structural Steel Standard | DIN EN 15512 / FEM 10.2.02 | DIN EN 15512 / FEM 10.2.02 | DIN EN 15512 / FEM 10.2.02 |
Localized Application Scenarios
Tailored Storage Engineering Across Hamburg & Northern Germany
Logistics requirements in Northern Germany are heavily influenced by environmental standards, structural safety norms (DGUV Regel 108-007), and specific regional supply chain dynamics. Rackzzszn provides fully engineered lane storage systems tailored to distinct industry sectors across the Greater Hamburg area:
1. Cold & Frozen Food Storage (Fischereihafen & Refrigerated Depots)
Refrigerated warehouse space in Hamburg carries high energy and construction overhead. Deep-lane racking minimizes the air cubic meters that need to be cooled per pallet load. Our systems utilize hot-dip galvanized steel components resistant to condensation, structural fatigue at sub-zero temperatures (-28°C), and micro-corrosion.
2. Maritime Port Forwarding & Container Freight Depots
In container logistics hubs located in Altenwerder and Waltershof, massive volumes of bulk freight arrive in consolidation waves. Heavy-duty drive-in systems allow logistics providers to batch-store incoming maritime containers efficiently by bill of lading (BOL) without dispersing stock across wide floor areas.
3. Automotive Components & Heavy Industrial Manufacturing
Servicing Northern Germany’s automotive supply chains, our structural lane racks are engineered with reinforced cantilever arms, heavy-duty guide rails, and high-tensile steel grades (S355 Structural Steel). They withstand continuous shock loads from heavy metal wire mesh cages and heavy-duty steel pallets.
4. E-Commerce & Fast-Moving Consumer Goods (FMCG)
Combining VNA aisle layouts with deep-lane radio shuttle systems enables high-speed automated picking for high-volume consumer commodities, dramatically accelerating order fulfillment cycles during seasonal retail peaks.
Future Industry Outlook
Trends Shaping Industrial Warehousing in Hamburg
The warehousing landscape in Germany is undergoing a technological and environmental shift. Key localized trends driving the adoption of advanced lane storage racking systems include:
- ✔ Decarbonization & Green Logistics (ESG Compliance): Hamburg's "Klimaplan" (Climate Plan) pushes industrial facilities to reduce carbon footprints. High-density lane storage reduces total facility heating and cooling demands, aligning directly with corporate sustainability targets.
- ✔ Shift Towards Semi-Automated Pallet Handling: Labor scarcity and wage adjustments across Northern European logistics hubs have accelerated the replacement of manual forklift drive-in racks with semi-automated Radio Shuttle systems.
- ✔ Strict Compliance with DGUV & FEM Standards: German safety authorities inspect static steel racking systems thoroughly. Modern buyers demand fully verified engineering design calculations, load notification plates, and certified structural welds.
Factory Advantage
Why Hamburg Industrial Buyers Source from Rackzzszn
Rackzzszn Storage Equipment Co., Ltd. brings over 23 years of specialized manufacturing experience, operating a modern 20,000 m² facility with an annual processing capacity exceeding 50,000 tons of structural steel. We bridge direct factory pricing with European engineering rigor:
South China’s Longest Spray Line
Our state-of-the-art automatic powder coating line executes pre-treatment washing, phosphating, and electrostatic epoxy coating in a single pass. Delivers superior scratch resistance and uniform film thickness.
SGS Audited & ISO Certified
Full traceable raw steel coil quality certification (Q235B, Q355B structural steel). Comprehensive load testing and dimensional quality control checks prior to export container packing.
Complete Overseas Project Support
From CAD site layout design to 3D finite element structural simulation and step-by-step remote assembly guidance, we provide end-to-end support for international logistics engineering teams.
Procurement Guidance
Frequently Asked Questions by Purchasing Teams in Hamburg
Detailed technical and logistical answers to support your warehouse racking procurement evaluation.
How do Lane Storage Racking Systems offset high real estate costs in Hamburg logistics zones?
By converting work access aisles into continuous structural storage channels, Lane Storage Racking (Drive-In or Radio Shuttle) increases storage capacity by 70% to 85% compared to conventional selective pallet racking within the same building footprint. This allows logistics operators in high-cost areas like Hamburg Port, Harburg, and Billbrook to store substantially more inventory without leasing additional warehouse facilities.
Do your lane storage racking designs comply with German DIN EN 15512 standards?
Yes. All Rackzzszn structural pallet racking and lane storage systems are calculated and manufactured in strict compliance with European structural design standard **DIN EN 15512** and **FEM 10.2.02**. Structural steel grades (S235 / S355), safety factors, load testing protocols, and deflection limits meet or exceed statutory German workplace safety standards (DGUV Regel 108-007).
What surface treatment is recommended for refrigerated cold storage warehouses (-28°C)?
For sub-zero frozen applications or high-humidity cold rooms commonly operated near Hamburg’s ports, we strongly recommend our **Hot-Dip Galvanized (HDG)** finish. Hot-dip galvanization coats all interior and exterior surfaces of uprights and beams with a protective zinc layer, rendering the steel immune to condensation corrosion, flaking, and structural embrittlement at extreme cold temperatures down to -28°C.
Can forklifts easily damage Drive-In racking channels, and how is this mitigated?
Because forklifts operate inside the storage lanes in traditional Drive-In systems, mechanical impact is a primary consideration. Rackzzszn integrates heavy-duty ground-anchored floor guide rails (custom angled or C-profile steel), heavy-duty upright column protectors, and reinforced bull-nose entrance frames to guide forklift masts safely and absorb minor collisions without compromising structural integrity.
What is the typical shipping lead time and customs process for factory direct delivery to Hamburg?
Production typically requires 15 to 25 days depending on project tonnage. Ocean freight from our South China port facility to the Port of Hamburg (Hamburg Hafen) averages approximately 28 to 35 days direct sailing time. We supply full export documentation (Bill of Lading, Commercial Invoice, Packing List, Mill Test Certificates, Certificate of Origin) for seamless customs clearance through German customs brokerages.
Does Rackzzszn provide custom 2D/3D layout design and structural engineering calculation reports?
Yes. Prior to production, our engineering team reviews your building drawings, clear ceiling heights, column grids, slab floor load tolerances, and forklift specifications. We provide detailed 2D CAD layout plans, 3D structural visual models, and load-bearing calculation documentation to support project sign-off and local building authority (Bauamt) reviews.
Optimize Your Hamburg Warehouse Storage Capacity Today
Send us your floor plan and pallet inventory specifications. Our senior structural engineers will deliver a customized 2D/3D Lane Storage Layout and direct factory quotation within 24 hours.
