Heavy-Duty Pallet Racking Systems
Certified, high-capacity structural storage solutions manufactured to ISO/EN standards for Doha’s logistics parks and industrial facilities.
Architectural Engineering of High-Load Pallet Racking in Doha’s Hyper-Growth Logistics Sectors
Qatar’s National Vision 2030 has driven unprecedented expansion in industrial infrastructure, position Doha as a premier logistics gateway in the Arabian Gulf. Key development zones—including the Birkat Al Awamer Logistics Park, Al Wukair Logistics Zone, Hamad Port Free Zone, and the Ras Laffan Industrial City—require world-class material handling infrastructure capable of supporting ultra-dense palletized inventories while withstanding severe climate constraints.
Selecting a certified large load pallet racking manufacturer and supplier in Doha requires an understanding of structural physics, cold-rolled steel metallurgy, and Qatar Civil Defence Department (QCDD) compliance standards. Storage systems in Qatar are subjected to uniquely challenging operational environments, including extreme ambient temperatures exceeding 50°C in unconditioned facilities, ambient humidity levels hovering above 80%, and sand/dust infiltration containing abrasive mineral salts.
Structural Metallurgy and Cold-Formed Steel Standards
High-bay heavy-duty selective and drive-in pallet racking systems engineered for Qatari enterprise operators utilize premium Q235B and Q355B high-tensile structural steel profiles. Structural columns (uprights) undergo continuous precision cold-roll forming, resulting in a multi-omega profile with up to 13 distinct deformation bends. This geometric profile drastically increases the moment of inertia, preventing buckling failure under ultimate limit state (ULS) conditions.
To ensure long-term reliability in Qatar's coastal and desert microclimates, upright frames and box beams undergo a multi-stage chemical pretreatment phase (degreasing, phosphating, and deionized water rinsing) followed by thermosetting epoxy-polyester electrostatic powder coating. Cured at 200°C, this 80-120 micron protective layer exhibits superior salt spray resistance (>500 hours ASTM B117), guarding steel structural elements against accelerated oxidation and mechanical abrasion.
Optimized FEA Stress Modeling
Calculated using Finite Element Analysis (FEA) software to guarantee structural rigidity under dynamic forklift placement and peak structural load distributions.
Seismic & Wind Resilience
Engineered to satisfy Qatar Construction Specifications (QCS) seismic parameters, featuring heavy-duty baseplates, expansion anchor bolts, and rigid floor bracing.
QCDD Fire Code Compliance
Beam profiles and upright depths engineered to maintain optimal vertical drop clearance for operational in-rack automatic fire sprinkler heads.
Large Load Storage Racking System Specifications Matrix
Our engineering team customizes pallet racking structural dimensions, beam profiles, and frame load profiles to match your warehouse building blueprints and forklift specifications.
| Racking Type | Max Load Capacity / Tier | Selectivity Rate | Floor Utilization | Recommended Application in Qatar |
|---|---|---|---|---|

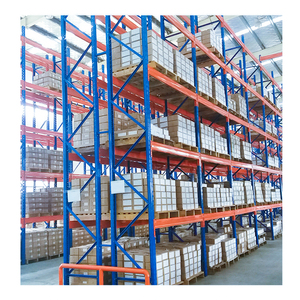

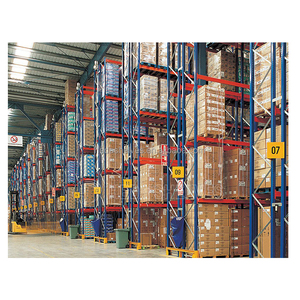

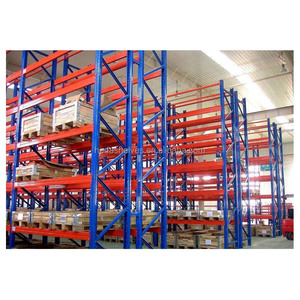

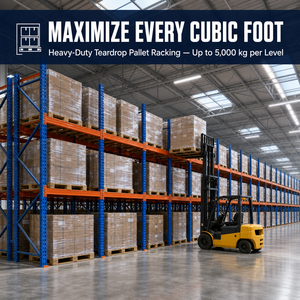

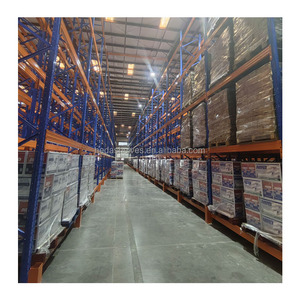

| Selective Pallet Racking | Up to 4,500 kg | 100% Direct | 40% – 50% | FMCG, 3PL Warehousing, Doha Port Logistics Parks |
| Drive-In / Drive-Thru Rack | Up to 2,000 kg / Pallet | LIFO / FIFO Bulk | Up to 80% | Umm Salal Cold Stores, Chemical Bulk Storage |
| Very Narrow Aisle (VNA) | Up to 3,500 kg | 100% Direct | Up to 85% | High-Bay Distribution Centers, Pharmaceuticals |
| Radio Shuttle Automation | Up to 1,500 kg / Pallet | Automated FIFO/LIFO | Up to 90% | Food Security Reserve, Frozen Food Logistics |

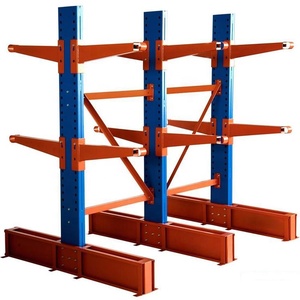

| Heavy Structural Cantilever | Custom Arm Loads | 100% Long Goods | Flexible | Ras Laffan Oil & Gas Pipes, Steel & Aluminum Profiles |
Targeted Application Scenarios Across Doha & Qatari Industrial Zones
Every commercial development zone in Qatar possesses distinct operational requirements. Our heavy-duty racking solutions are engineered for localized vertical integration:
Birkat Al Awamer & Al Wukair Logistics Hubs
Designed for fast-turnover 3PL operators needing maximum selectivity. Adjustable box beam configurations allow variable pallet height storage (1,200mm to 2,200mm) while supporting standard EURO and ISO timber and steel pallets.
Ras Laffan & Mesaieed Energy Infrastructure
Structural cantilever racking and high-load beam racks engineered to store heavy oilfield drill pipes, structural valves, copper spools, and industrial steel plates with specialized corrosion-resistant powder coatings.
Cold Chain Storage (Umm Salal & Hamad Port)
Drive-in and Radio Shuttle racking optimized for sub-zero operating environments down to -30°C. Cold-resistant steel formulations prevent thermal brittle fractures under persistent low-temperature operation.
Doha Industrial Area E-Commerce & Retail
Integrated rack-supported mezzanines and multi-tier picking platforms that double usable vertical square footage, streamlining high-SKU e-commerce order fulfillment.
Why Qatari Enterprises Partner with Our Manufacturing Facility
Rackzzszn Storage Equipment Co., Ltd. operates a modern 20,000 square meter primary manufacturing facility with an annual processing capability exceeding 50,000 tons of structural steel. Armed with 23+ years of global exporting history across 60+ nations, we provide a complete end-to-end service model ranging from initial site survey and AutoCAD layout generation to structural loading calculations, ocean container logistics to Doha (Hamad Port), and remote or on-site installation guidance.
-
✔
South China's Premier Automated Spray Line: Featuring continuous three-color automated powder coating capabilities ensuring consistent color matching, uniform paint thickness, and rapid order turnover times.
-
✔
Rigorous In-House Quality Assurance: Every production batch undergoes strict raw material coil thickness verification, weld penetration testing, dimension tolerance checks, and ULS load-deflection testing ($L/200$ limits).
-
✔
Seamless Containerized Export Logistics: Automated bundling and protective plastic film wrapping minimize shipping friction, preventing scratch damage during sea transport across the Indian Ocean to the Arabian Gulf.
Frequently Asked Questions by Purchasing Directors in Doha
Direct technical answers to common queries regarding racking procurement, site installation, customs delivery, and structural safety in Qatar.
What documents are provided for Qatar Civil Defence Department (QCDD) compliance?
How long does shipping and delivery take from factory to Hamad Port, Doha?
Can your engineering team assist with custom warehouse layouts in Qatar?
What concrete floor slab specifications are required for heavy-duty pallet racking?
Do you offer on-site installation guidance for large projects in Doha?
Accelerate Your Storage Capacity in Doha Today
Get in touch with our certified storage racking design engineers for a complimentary CAD floor plan layout, static loading calculation, and competitive factory-direct wholesale quotation.
