Next-Generation Gravity Pallet Flow Storage Solutions
Providing direct OEM manufacturing expertise, structural integrity compliant with BS EN 15512 standards, and custom roller lane design for high-value urban real estate across Greater London and the M25 logistics belt.
Heavy Capacity
Adjustable Roll Formed Steel Beam Rack High Weight Capacity Boltless Shelving
High Density
Customizable Multi-Deep 4-Way Shuttle Pallet Racking System for Distribution Centers
Industrial Grade
Steel Racking Solutions Heavy Duty Storage Shelves Pallet Racking System
Flexible Design

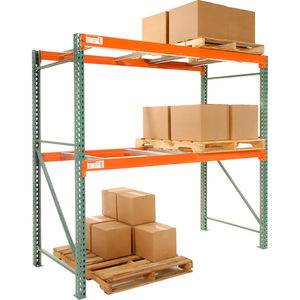

Simply Wire Decking Pallet Rack for Appliance & Logistics Warehousing
Automation Ready

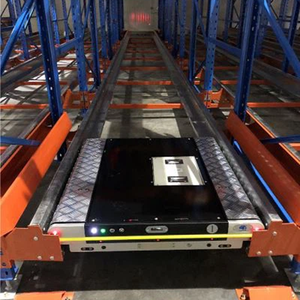

Automated Shuttle Pallet Racking System Two Way High Performance Shuttle
500kg / Layer

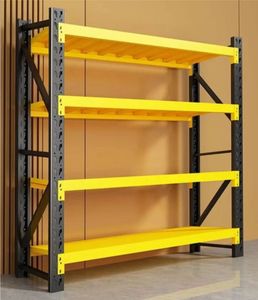

Custom Adjustable Medium-Duty 500kg/Layer Steel Racks Industrial Storage System
Remote Control
Warehouse Semi-Automatic Radio Shuttle Pallet Racking Selective Storage System
Direct Factory
Heavy Duty Steel Pallet Racking System Warehouse Storage Rack with Wire Mesh Decking
Industry Whitepaper: Physics & Dynamics of Gravity Pallet Flow Racking
In high-velocity distribution hubs where real estate prices are premium—such as Greater London, Park Royal, Dartford, Heathrow, and Enfield—storage efficiency cannot rely solely on standard static pallet selective racking. Pallet Flow Racking (Gravity Flow Racking) utilizes an inclined pitch equipped with precision steel roller tracks, dynamic speed controllers, and mechanical brake rollers to create an automated First-In, First-Out (FIFO) dynamic storage structure.
By transforming conventional fork-truck aisles into continuous gravity-driven storage channels, pallet flow systems achieve up to 85% higher storage density compared to conventional selective rack layouts. Pallets are loaded from the dedicated loading aisle (rear) and automatically glide under controlled gravitational forces down a carefully engineered 3.5% to 4.0% incline slope toward the picking face (front).
Gravitational Incline Physics
Precisely calculated pitch (usually 3.5° to 4°) guarantees smooth kinetic flow for loads between 300kg and 1500kg per pallet without operational runaway.
Brake Roller Technology
Indirect speed controller brake rollers positioned every 1.2m regulate terminal velocity to a safe speed under 0.3 m/s across deep-lane configurations.
Safety Separator Modules
Automatic end-stop pallet separators disengage the lead pallet from line pressure, preventing crushing and ensuring easy, safe forklift extraction.
Our structural engineering process incorporates heavy-gauge cold-rolled steel channels (Q235B and Q355B structural grades), custom-engineered frame bracing, and full compliance with European standard BS EN 15512 and SEMA (Storage Equipment Manufacturers' Association) recommendations. This guarantees structural stability under massive static and dynamic impact forces.
Structural Systems Performance & Technical Selection Matrix
When selecting structural warehouse infrastructure for London operations, supply chain directors must evaluate volumetric utilization against handling speeds and SKU diversity.
| Racking System | Flow Mechanism | Floor Space Efficiency | Inventory Rotation | Forklift Aisle Requirement | Ideal Application Scenario |
|---|---|---|---|---|---|
| Pallet Flow Racking | Gravity Roller Tracks / Incline | Up to 85% | Strict FIFO | Low (2 Aisles Total) | Cold Storage, Perishables, High FMCG Turnover |
| Selective Pallet Rack | Direct Mechanical Access | 40% - 50% | 100% Selectivity | High (Aisle per double rack) | High SKU diversity, low volume per SKU |
| Drive-In Racking | Forklift Channel Entry | 65% - 75% | LIFO Only | Single Access Front Aisle | Bulk storage, homogenous goods, low turnover |
| Radio Shuttle System | Semi-Automated Robot Carriage | 80% - 90% | FIFO or LIFO Flexible | Minimal Aisle Footprint | Deep-lane high density, multi-pallet channels |
| Push-Back Racks | Nested Telescopic Carts | 65% - 70% | LIFO | Single Front Loading Aisle | Medium SKU density, 2-6 pallet deep storage |
Localized Application Scenarios & London Supply Chain Trends
As London’s logistics infrastructure pivots toward Ultra Low Emission Zone (ULEZ) micro-fulfillment hubs and high-density outer-ring distribution centers, logistics providers face intense pressure regarding rental rates (£25 - £35+ per sq. ft. in prime London industrial estates). Implementing specialized gravity pallet flow racking engineered in our manufacturing facility provides clear financial advantages:
1. Cold Storage & Frozen Food Logistics (East & South East London): In refrigerated facilities where energy consumption per cubic meter is exceptionally high, reducing empty aisle space is paramount. Pallet flow racking condenses cold air footprint while ensuring absolute compliance with perishable date codes through automated FIFO rotation.
2. E-Commerce Fast-Moving Consumer Goods (M25 Logistics Belt): Facilities serving same-day London deliveries demand continuous stock feeding to picking stations. Pallet flow channels act as dynamic buffers, continually pushing goods to the picking line without requiring motorized conveyance energy or continuous forklift aisle traffic.
3. UK & Euro Pallet Compatibility Engineering: Standard UK perimeter base pallets (1200mm x 1000mm) and Euro pallets (1200mm x 800mm) feature distinct bottom-board configurations. Our custom OEM roller beds utilize multi-rail roller layouts, full-width steel rollers, or split-twin tracks designed specifically to support varied bottom-runner orientations without deflection or dynamic jamming.
Direct OEM Manufacturing Strength for London Buyers
Operating a 20,000 m² state-of-the-art facility equipped with automated roll-forming lines, robotic welding stations, and the longest continuous powder coating line in South China, we deliver full structural compliance directly to your job site.
By eliminating middle-tier trading markups, London logistics operators and warehouse integrators obtain factory-direct pricing, certified load calculations, and full structural CAD/BIM integration drawings before fabrication begins.
- SGS & ISO 9001 Certified Quality Management
- High Yield Steel Coils (Q235B / Q355B Grade)
- Custom Epoxy-Polyester Powder Coating (BS Colors Available)
- Door-to-Door Freight & UK Customs Export Packaging
Structural Engineering & CAD Support
Our structural engineers analyze building slab capacity, clear heights, sprinkler clearances, and forklift specs to generate optimized layout drawings.
Frequently Asked Questions by London Logistics Buyers
Expert engineering insights into local UK standards, delivery logistics, and system customizations.
Do your racking systems comply with UK SEMA & BS EN 15512 Standards?
Yes. All structural steel profiles, upright frames, box beams, and gravity flow tracks engineered in our manufacturing plant are designed, tested, and fabricated in full accordance with BS EN 15512 static steel storage design codes and SEMA recommendations for safe warehouse storage operation across the United Kingdom.
How do you handle pallet quality variations (UK Standard vs. Euro Pallets)?
UK standard pallets (1200x1000mm) feature bottom perimeter boards that require specific roller contact spacing to prevent deflection. We customize roller widths, track counts (3-track vs 2-track), and roller pitch to accommodate both timber standard UK pallets and plastic Euro pallets seamlessly.
What is the lead time for shipping containerized orders to London ports?
Our standard manufacturing lead time is 15 to 20 days upon CAD layout approval. Ocean shipping to London Gateway, Felixstowe, or Southampton typically takes 28 to 35 days. We handle export documentation, container loading, and provide complete installation manuals.
Can gravity pallet flow systems be deployed in cold storage facilities?
Absolutely. For cold storage and freezer applications down to -30°C, we supply low-temperature synthetic lubricants, stainless steel roller bearings, and cold-resistant powder coated or hot-dip galvanized steel frames to prevent corrosion and mechanical seizure.
Request Your Custom Layout & Factory Direct Quote
Send us your warehouse CAD floor plan, floor slab rating, and pallet specifications for a free structural calculation.
