Engineered Storage Solutions
Pallet Racking Systems & Safety Accessories
Direct manufacturer supply for industrial logistics centers, cold storage facilities, and bulk distribution hubs throughout Victoria.
High Load Capacity Heavy Duty Pallet Rack with Pallet Support Bar for Steel Coil and Bulk Storage
Get Catalog
Warehouse Semi-automatic Steel Rack System 2 Ways Shuttle Car Selective Storage Remote Control Radio Shuttle Pallet Racking
Get Catalog
Customized Heavy Duty Pallet Rack Multi-layers Storage Rack 500-3000kg Garage Shelves with Anti-corrosion for Warehouse Storage
Get Catalog
Galvanized Steel Pharma Industrial Warehouse Heavy Duty Pallet Rack
Get Catalog
3500kg Super Heavy Duty Logistics Warehouse Pallet Beam Racking Source Factory High Load Storage Rack
Get Catalog
High Density Durable Radio Shuttle Rack High-Quality Heavy Duty Warehouse Pallet Shelves Industrial Storage Racking System
Get Catalog

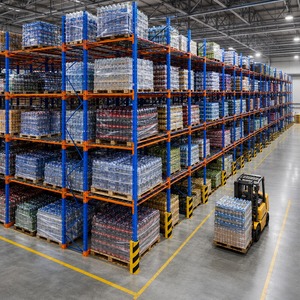

Palettenregal Racks Industriales Pallet Flow Racking Steel Storage Rack Q235B Steel For Bulk Chemical Plants
Get CatalogEngineering Impact Safety: Pallet Racking with Integrated Barriers for Melbourne Warehousing
Greater Melbourne represents Australia's premier industrial logistics node, driven by intense commercial throughput across industrial hubs such as Truganina, Ravenhall, Altona North, Dandenong South, Somerton, and Campbellfield. Operating high-bay pallet racking within these high-turnover environments demands absolute alignment with strict structural integrity standards—specifically AS 4084-2012 (Steel Storage Racking) and the updated AS 4084.2:2023 operational safety guidelines enforced by WorkSafe Victoria.
As a global OEM/ODM racking manufacturer exporting directly to Australian enterprises, Rackzzszn Storage Equipment Co., Ltd. integrates high-tensile structural steel profiles (Q235B & Q355B grade cold-rolled steel) with engineered impact safety barriers. Heavy material handling equipment (MHE)—such as reach trucks, counterbalance forklifts, and Automated Guided Vehicles (AGVs)—presents constant risk to racking uprights. A single unshielded forklift column impact can compromise structural stability, leading to frame buckling, stock loss, and catastrophic progressive rack collapse.
Technical Compliance Insight: Standard floor-anchored upright guards are often insufficient for high-speed reach truck lanes. Rackzzszn's Melbourne-spec racking solutions utilize heavy-duty tubular steel aisle-end barriers and wrap-around corner protectors anchored into minimum 32MPa concrete slabs via dynamic expansion anchors, absorbing up to 14kJ of kinetic impact energy without transferring strain to the rack uprights.
Essential Safety Barrier Configurations for Melbourne Logistics Hubs
Upright Column Protectors
Heavy-gauge steel wrap-around guards (5mm steel thickness) designed to shield vulnerable front upright legs from low-level forklift mast strikes. Available in Safety Yellow (RAL 1023) powder coat.
Aisle-End Heavy Barriers
Double-rail heavy structural steel channels positioned at the ends of racking runs. Essential for high-traffic cross-aisle turns where forklifts swing loaded pallets.
Frame Corner Guards & HDPE Buffers
Hybrid steel-elastomer and High-Density Polyethylene (HDPE) buffers engineered for cold storage rooms (down to -30°C) where thermal contraction alters steel brittleness thresholds.
23+
Years R&D & Manufacturing
50,000T
Annual Steel Output Capacity
60+
Global Export Markets
AS 4084
Strict Compliance Standard
Localized Warehousing Trends & Application Scenarios across Greater Melbourne
Industrial land value expansion in Victoria has driven a major shift toward high-bay vertical storage optimization. Logistics operators across Dandenong South and Truganina are replacing traditional wide-aisle configurations with Very Narrow Aisle (VNA) systems, Drive-In Racking, and automated Radio Shuttle Pallet Racking systems to maximize volumetric density.
1. Automated Cold Storage & Food Distribution (Western Suburbs & Port Precincts)
With Victoria's position as a national leader in agricultural export and dairy distribution, cold storage facilities require rapid stock turnover under stringent temperature controls. Rackzzszn supplies Galvanized Selective & Radio Shuttle Pallet Racks integrated with cold-resistant safety barriers. Hot-dip galvanization prevents surface oxidation caused by continuous condensation cycles, while radio shuttle cars automate pallet retrieval in sub-zero environments, eliminating forklift operator fatigue inside freeze zones.
2. E-Commerce Fulfillment & FMCG High-Velocity Hubs (Dandenong South & Altona)
Third-party logistics (3PL) providers and retail giants operating in Melbourne demand fast order picking and zero-downtime structural reliability. Integrated pallet racking with heavy-duty steel safety barriers ensures that high-speed forklift movements do not trigger structural fatigue. Multi-tier mezzanine floor platforms and selective beam racking are deployed with wire mesh decking, pallet support bars, and drop-over safety mesh to safeguard picking staff working beneath high-bay beam levels.
3. Heavy Manufacturing & Bulk Steel Storage (Northern Corridor: Somerton & Campbellfield)
For heavy industrial sectors handling steel coils, machinery parts, timber, and building materials, structural integrity is non-negotiable. Rackzzszn manufactures heavy-duty beam racking rated up to 3,500kg per level, augmented by heavy steel support bars and custom cantilever arms. Uprights are designed with 75mm beam adjustment pitches, allowing Melbourne warehouse managers to modify shelf heights effortlessly as inventory profiles evolve.
Technical Specifications & Structural Comparison Matrix
Compare key structural specifications across our heavy-duty pallet racking systems and impact safety barriers designed for Melbourne logistics applications:
| Racking / Barrier System | Load Capacity (per level / post) | Material Specification | Compliance Standard | Recommended Application |
|---|---|---|---|---|
| Heavy Duty Selective Rack | 1,000 kg – 3,500 kg | Q235B / Q355B Cold Rolled Steel | AS 4084-2012 / FEM 10.2.02 | General 3PL, FMCG, Warehousing |
| Radio Shuttle Pallet Rack | 500 kg – 1,500 kg / Pallet | High-Grade Structural Steel | AS 4084 / CE Certified | Cold Storage, Food & Beverage, High Density |
| Drive-In Racking System | 1,000 kg – 2,000 kg / Pallet | Heavy Duty Profile Steel | AS 4084 / ISO 9001 | Seasonal Bulk Stock, Low-SKU High Volume |
| Aisle-End Crash Barrier | Absorbs up to 14 kJ Impact | Heavy Channel Steel (Q235B) | WorkSafe Victoria Guidelines | Forklift Traffic Intersections & Cross-Aisles |
| Column Upright Guard | 5mm Thickness Steel Plate | Epoxy Powder Coated RAL 1023 | AS 4084 Clause 2.4 Protection | Individual Rack Legs & Corner Uprights |
Why Melbourne Logistics & Procurement Managers Partner with Rackzzszn
Selecting the right international manufacturer requires verifying real manufacturing capability, material quality control, and export engineering expertise. Rackzzszn Storage Equipment Co., Ltd. brings over 23 years of proven engineering history to every order delivered across Oceania.
In-House Production & Engineering
Equipped with over 80 automated roll-forming machines, laser cutters, robotic welding units, and South China's longest automatic powder coating spray line. We guarantee uniform coating thickness (80-100 microns) and exact dimensional tolerances on all beams and upright frames.
Strict Quality Control & SGS Audits
Every steel coil undergoes raw material tension testing, weld bead inspection, and load deflection verification before export. All systems are supplied with detailed 2D/3D CAD layouts, structural FEA simulation reports, and step-by-step installation manuals.
Oceania Container-Optimized Packing
Export packaging utilizes steel-banded bundles, protective corner wraps, and custom steel skids. Uprights, beams, and safety barriers are densely packed into 40ft High Cube containers to prevent ocean freight transit damage and minimize international transport costs to the Port of Melbourne.
Dedicated Project Engineering Support
Our structural engineering team offers complete CAD layout design, floor slab load calculations, and tailored site adaptation consulting to ensure your pallet racking project achieves seamless approval from local Australian safety auditors.
Frequently Asked Questions for Melbourne Racking Buyers
Do your pallet racking systems comply with Australian Standards AS 4084-2012 / AS 4084.2:2023? +
Yes. All Rackzzszn pallet racking systems exported to Australia are engineered and manufactured in strict compliance with AS 4084 steel storage racking standards. We utilize certified structural steel grades (Q235B/Q355B) and conduct Finite Element Analysis (FEA) to verify beam deflection rates do not exceed 1/200th of the clear span length under maximum permissible working loads.
What safety barriers are mandatory for warehouses operating in Victoria under WorkSafe guidelines? +
Under WorkSafe Victoria operational recommendations and AS 4084 specifications, corner uprights exposed to vehicle aisles must be fitted with dedicated impact post protectors. Additionally, all outer ends of racking rows facing high-volume cross-aisles require heavy-duty floor-mounted aisle-end barriers to prevent forklift collisions from dislodging upright columns.
Can Rackzzszn customize safety barrier dimensions to fit existing non-standard racking? +
Absolutely. As an OEM/ODM source manufacturer, we produce custom-tailored safety barrier profiles, including heavy tubular steel rails, drop-in column guards, bolt-on frame protectors, and floor-anchored steel channel barriers to suit your existing warehouse footprint and specific forklift clearance requirements.
What is the typical shipping lead time from factory dispatch to the Port of Melbourne? +
Manufacturing typically takes 15 to 20 days depending on project volume. Ocean freight transit from our South China port facility to the Port of Melbourne takes approximately 12 to 16 days. Our logistics team handles full export documentation, packing lists, and bill of lading issuance for smooth customs clearance.
Why is professional site investigation critical before ordering heavy pallet racks? +
Architectural floor plans often omit physical warehouse variations such as floor slope gradients, fire hose reel locations, lighting duct clearances, overhead crane pathways, and structural column expansion pads. A deviation of just 20mm can block a forklift operating aisle or impede emergency egress paths. We work closely with your technical team to verify exact field dimensions prior to production.
Optimize Your Melbourne Warehouse with Heavy-Duty Racking & Safety Barriers
Contact our project engineering team today to receive CAD layout designs, AS 4084 compliance verification, and direct factory pricing tailored to your facility.
