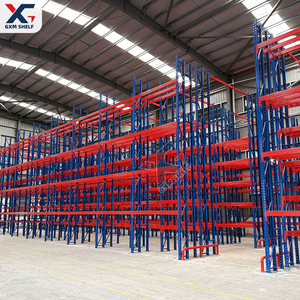

GXM Heavy-Duty Industrial Storage Rack For Pallets Durable 5-Layer Pallet Flow Rack With VNA Design Steel Warehouse Racking
Double Deep Beam Industrial Pallet Warehouse Storage Steel Pallet Racking Heavy Duty Selective Pallet Racking System
Iron Steel Coil Selective Pallet Rack Heavy Duty Industrial Garage Storage System with Powder Coated Finish
The US Industrial Warehousing Shift to Semi-Automated Pallet Shuttle Systems
A comprehensive analysis of density optimization, operational labor efficiency, and structural integrity for modern American supply chains.
Rethinking High-Density Storage in High-Cost Industrial Real Estate
Across prime United States logistics corridors—from the Inland Empire in California and the Dallas-Fort Worth metroplex to the Pennsylvania I-78/I-81 distribution belt—industrial real estate costs and construction expenses have reached historic highs. Warehouse operators and 3PL enterprises can no longer rely solely on conventional selective pallet racking or inefficient manual drive-in racking.
The Pallet Shuttle Racking System (also known as the Radio Shuttle Cart System) represents a transformative leap in high-density automated material handling. By deploying autonomous, radio-controlled shuttle cars inside custom-engineered racking channels, warehouse managers eliminate the necessity for forklifts to enter storage aisles. This fundamental operational shift yields up to 80% utilization of vertical and horizontal building volume, drastically reduces forklift collision hazards, and optimizes operational throughput.
Information Gain Insight: Drive-In vs. Radio Shuttle ROI
Traditional Drive-In racks suffer from high maintenance overhead due to frequent forklift upright collisions ("rack rack-ups"). Pallet shuttle systems isolate forklift movements strictly to the front picking face, extending rack operational lifespan by over 300% and accelerating pallet load/unload cycles by up to 40%.
2-Way vs. 4-Way Automated Pallet Shuttle Engineering
Understanding mechanical kinematics, optical positioning, power systems, and structural steel standards.
Kinematic & Sensor Precision
Equipped with laser rangefinders, photoelectric sensors, and mechanical limit switches. Shuttle carts automatically detect lane limits, pallet positioning edges, and obstacle barriers with millimeter accuracy, guaranteeing smooth operation within deep channels up to 100 meters.
LiFePO4 Lithium Power Cells
Utilizing high-capacity Lithium Iron Phosphate (LiFePO4) battery packs paired with intelligent battery management systems (BMS). Provides up to 8–10 hours of uninterrupted continuous operation with rapid 3-hour fast charging capabilities and auto-docking safety alerts.
Cold Chain Rating (-30°C)
Specially engineered low-temperature electrical harnesses, low-viscosity synthetic lubricants, and anti-condensation heating elements permit continuous, high-performance operation inside deep-freeze environments down to -30°C (-22°F).
| System Dimension | 2-Way Radio Shuttle Racking | 4-Way Multi-Directional AS/RS Shuttle | Conventional Drive-In Racking |
|---|---|---|---|
| Storage Density | Very High (75%-85%) | Maximum (85%-92%) | High (60%-70%) |
| Operating Logic | FIFO or LIFO (Flexible) | Fully Automated FIFO / LIFO | Strict LIFO (FIFO difficult) |
| Forklift Aisle Requirement | Front loading face only | Integrated vertical lifter (No forklifts in rack) | Deep forklift entering aisles |
| Cycle Throughput | 40 - 50 pallets/hour per shuttle | 80 - 120+ pallets/hour (Multi-cart) | 15 - 25 pallets/hour |
| Rack Structure Damage Risk | Near Zero | Near Zero | Extremely High (Frequent collision) |
| US Standard Compliance | ANSI MH16.1 / RMI / OSHA | ANSI MH16.1 / RMI / NFPA 13 | ANSI MH16.1 / RMI |
High-Impact US Industry Application Scenarios
How American enterprises leverage pallet shuttle automation to solve industry-specific supply chain bottlenecks.
1. Cold Storage & Frozen Food Logistics (Midwest & East Coast Hubs)
Refrigerated warehouse space carries up to 3x higher energy and operational costs per square foot compared to ambient facilities. In major cold hubs like Chicago, Indianapolis, and New Jersey, our pallet shuttle racking systems minimize refrigerated cubic volume waste. By packing pallets up to 30 deep per channel, heat loss is minimized, energy consumption per pallet drops by up to 35%, and workers spend less time operating forklifts inside sub-zero environments.
2. High-Velocity Fast-Moving Consumer Goods (FMCG) & Beverage
Beverage distributors and FMCG manufacturers dealing with massive SKU volume and seasonal spikes require rapid truck turnarounds. Shuttle racks facilitate high-speed staging at dock doors. Automated shuttle carts pre-stage outgoing orders inside deep lanes, allowing dock forklifts to perform rapid sequential loading into outbound 53-foot dry vans and reefer trailers.
3. 3PL Third-Party Logistics & E-Commerce Buffer Warehousing
Third-party logistics operators require dynamic systems capable of shifting between LIFO (Last-In, First-Out) for rapid turnover items and FIFO (First-In, First-Out) for date-sensitive consumer goods. Our 2-Way radio shuttle systems allow operators to switch operating modes via handheld wireless tablets instantly, adapting seamlessly to changing client contracts without physical rack reconfiguration.
4. Automotive Component & Heavy Industrial OEM Storage
Handling heavy metal steel coils, stamping dies, and raw auto parts requires structural racks engineered for high point loads. Utilizing premium grade Q235B and Q355B cold-rolled steel profiles with heavy-duty guide rails, Rackzzszn shuttle systems support up to 4,000 KG (8,800 lbs) per pallet position under rigorous multi-shift operation.
Key Trends Shaping US Warehouse Automation & Procurement
Critical considerations for US supply chain directors sourcing racking systems direct from China factories.
1. Interoperability with AGVs, AMRs, and WMS Platforms
US warehouses are rapidly adopting Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs) for horizontal pallet transport. Modern pallet shuttle racking systems are designed with API integration protocols. High-level Warehouse Management Systems (WMS) and Warehouse Control Systems (WCS) directly dispatch shuttle vehicles via Wi-Fi networks, establishing a fully automated supply chain ecosystem from receiving dock to rack shelf.
2. Strict Seismic & Fire Code Compliance (RMI / NFPA 13)
Installing high-density racking in earthquake-prone zones such as California, Washington, or the New Madrid Seismic Zone requires complex structural calculations. Rackzzszn designs upright frames with oversized footplates, heavy-duty anchor bolts, and custom horizontal bracing patterns to satisfy US RMI (Rack Manufacturers Institute) standards and local building permits. Furthermore, open-top shuttle guide rails ensure compliance with NFPA 13 fire sprinkler penetration mandates.
3. Factory-Direct OEM/ODM Value Strategy
By bypassing regional middleman markups, US buyers sourcing directly from audited Chinese manufacturers like Rackzzszn Storage Equipment Co., Ltd. achieve cost reductions of 30% to 45% while receiving custom-tailored steel rack profiles, specialized powder coatings, and turnkey engineering documentation.
Frequently Asked Questions by US Procurement Managers
Technical, logistical, and engineering answers designed to resolve procurement friction for overseas buyers.
How do Rackzzszn Pallet Shuttle systems comply with US RMI and ANSI MH16.1 standards?
Our structural engineering team utilizes high-tensile structural steel (Q235B and Q355B equivalent to ASTM A36 / Grade 50) and subjects all rack designs to FEA (Finite Element Analysis) load testing. Structural calculations account for dead load, live load, wind/seismic uplift forces, and impact margins in compliance with RMI (Rack Manufacturers Institute) and ANSI MH16.1 requirements for North American installations.
What is the delivery timeline and container shipping arrangement for orders to US ports?
Standard manufacturing lead time at our factory is 20–25 days following technical drawing approval. Ocean freight from our Guangzhou port to US West Coast ports (Los Angeles / Long Beach / Oakland) takes approximately 14–18 days, while East Coast ports (New York / Savannah / Houston) take 26–32 days. We offer complete FOB, CIF, DDP, and DDU door-to-door logistics services including customs brokerage clearance.
Can the radio shuttle car operate reliably inside low-temperature cold storage environments?
Yes. Our cold-storage optimized shuttle models feature sealed IP65-rated electronics, specialized low-viscosity synthetic lubricants, anti-freezing thermal protection circuits for drive motors, and industrial grade LiFePO4 batteries tested down to -30°C (-22°F). Auto-heating components prevent internal condensation when transitioning between ambient charging areas and cold vaults.
What happens if a shuttle vehicle experiences a battery depletion or mechanical error inside a deep lane?
All Rackzzszn shuttle vehicles feature built-in low-battery automatic return protocols; when power drops below 10%, the shuttle suspends new commands and returns to the front aisle face. For unexpected faults, each system comes with an emergency rescue retrieval kit (a secondary mechanical hook attachment or magnetic retrieval cable) allowing a forklift to safely draw the shuttle back to the front face within minutes.
Do you provide local installation supervision and maintenance support in North America?
We supply exhaustive 3D installation blueprints, step-by-step CAD assembly drawings, video tutorials, and live remote engineering assistance. For large-scale projects, Rackzzszn can dispatch certified installation supervisors directly to your US job site to oversee local millwright crews, perform commissioning tests, and train your warehouse maintenance technicians.
What surface finishes and colors are available to resist corrosion and wear?
Our factory houses the longest automated continuous powder coating line in South China. We apply an electrostatic thermosetting epoxy-polyester powder coating that is non-toxic, scratch-resistant, and corrosion-proof. Standard colors include Signal Blue (RAL 5005), Safety Orange (RAL 2004), and Industrial Grey (RAL 7035), with custom RAL color matching available upon request.
Why Work with Rackzzszn Storage Equipment Co., Ltd.
A trusted global manufacturing partner dedicated to quality, precision, and long-term customer success.
23+ Years of Storage Equipment Manufacturing Excellence
Rackzzszn Storage Equipment Co., Ltd. (Guangzhou Maobang) operates a modern 20,000 m² manufacturing plant equipped with over 80 advanced automated production machines, including automatic cold-roll forming mills, laser steel cutters, robotic welding cells, and automatic packing lines.
With an annual steel processing throughput exceeding 50,000 tons, our factory maintains rigorous SGS-verified quality management controls across raw coil inspection, precision punching, robotic welding, surface pre-treatment, powder spraying, and final load testing.
50,000 Tons/Yr
Massive steel processing capacity ensuring fast lead times.
SGS Audited
Certified factory compliance and strict batch traceability.
Ready to Optimize Your US Warehouse Density & Throughput?
Submit your warehouse floor plans, ceiling clearance height, and pallet specification data today. Our senior engineering team will deliver a complimentary 2D/3D layout proposal and factory-direct cost quotation within 24 hours.
