High-Density Semi-Automated & Heavy-Duty Racking Systems
Certified high-bay warehouse storage engineered for maximum volumetric efficiency, cold storage endurance, and seamless forklift integration across Italian industrial sectors.

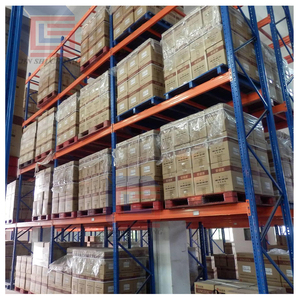

Industrial Heavy Duty Steel Pallet Rack Warehouse Shelving System
100% selective structural racking engineered for distribution centers and factories requiring high structural stability under heavy pallet loads.

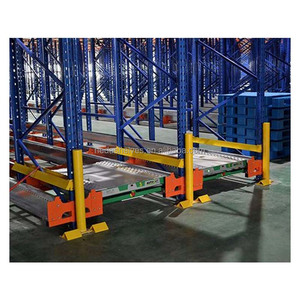

Shuttle Rack System / Pallet Runner High Density Industrial Storage
Semi-automated Radio Shuttle system reducing forklift travel times by up to 70% while boosting overall volumetric floor utilization.

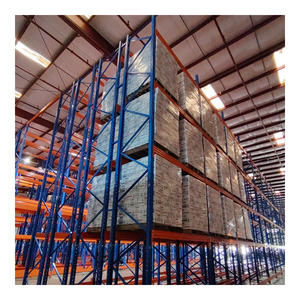

Material Handling Rack Pallet Racking Supplies Industrial Shelving
Versatile heavy-duty racking designed with customizable beam connectors, safety lock pins, and powder-coated electrostatic finishes.
Heavy Duty VNA Adjustable Steel Pallet Racking System for E-commerce
Very Narrow Aisle (VNA) system engineered for high-bay warehouses, maximizing height utilization up to 15 meters with precise guide rails.
Factory Direct High Density Semi-Automatic Pallet Shuttle System
Direct manufacturer-engineered Radio Shuttle solution featuring automatic pallet positioning, obstacle detection, and long battery life.

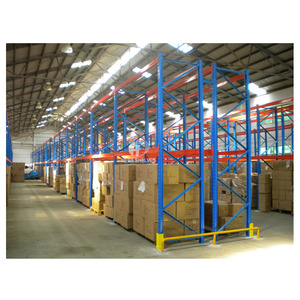

Wholesale Industrial Stacking Racks Heavy Duty Warehouse System
Rigid modular steel frames for heavy industrial goods, bulk goods, and non-standard unit loads needing flexible block storage.
Semi-automatic Remote Control Radio Shuttle Racking System
Equipped with RF wireless control, fast shuttle speeds (up to 1.2 m/s), and seamless LIFO/FIFO mode switching for batch logistics.
High Density Cold Storage Semi-Automated Radio Shuttle Racking
Low-temperature resistant steel racking engineered for cold rooms down to -30°C, equipped with thermal lithium battery management.
Italian Logistics & Storage Industry Technical Analysis
Navigating high land acquisition costs, strict seismic regulations, and digital transformation initiatives in Lombardy, Emilia-Romagna, Veneto, and Piedmont.
In primary Italian industrial hubs such as Milan, Bologna, Verona, and Turin, warehouse real estate costs have escalated significantly. Logistics operators facing land scarcity must prioritize vertical cube optimization over horizontal expansion. Traditional selective racking limits warehouse volume utilization to approximately 40%, leaving substantial headroom underutilized.
By implementing Semi-Automated Pallet Shuttle Systems, enterprise warehouses achieve up to 85% volumetric density. By eliminating forklift aisles between storage channels, deep-lane shuttle racking maximizes pallet storage capacity within existing facility footprints, drastically lowering the operating cost per pallet position in prime Italian industrial zones.
The Italian government’s Piano Transizione 4.0 (and subsequent 5.0 energy efficiency guidelines) offers substantial tax credits (Credito d'Imposta) for capital investments in automated and digitalized industrial equipment. Semi-automated pallet shuttle systems fall squarely into the category of digitalized logistics hardware when integrated with Warehouse Management Systems (WMS).
Our radio shuttle cars feature standard Wi-Fi / RF communication protocols, PLC control units, and automated sensor arrays that enable real-time telemetry, inventory tracking, and energy recovery systems. This technological compliance enables Italian buyers to offset significant capital expenditures through government automation subsidies.
Technical Deep Dive: Structural Engineering & Radio Shuttle Architecture
Rigorous finite element analysis (FEA), high-yield Q355B cold-formed steel structural design, and European standard compliance.
European Standard Compliance Matrix: UNI EN 15512 & UNI EN 16681
Italy’s geography presents notable seismic activity, particularly along the Apennine ridge and across northern regions like Emilia-Romagna and Friuli-Venezia Giulia. Standard static racking design is insufficient to ensure structural integrity during seismic events. Our engineering team utilizes Advanced Finite Element Analysis (FEA) to simulate dynamic wave responses, sway forces, and stress concentrations on upright frames and beam connectors.
- UNI EN 15512 Compliance: Steel static storage systems - Adjustable pallet racking systems - Principles for structural design.
- UNI EN 16681 Compliance: Seismic design standards specifically governing steel pallet racking systems in seismic-prone zones across Italy.
- Q355B Structural Steel: High-tensile steel cold-formed into multi-flanged upright profiles, delivering superior flexural rigidity and ultimate load capacity compared to standard commercial steel grades.
- Custom Baseplate & Anchoring: Heavy-duty dynamic expansion anchors and reinforced baseplates engineered to absorb ground accelerations without column buckle or beam displacement.
| System Parameter | Technical Specification | Italian Operational Benefit |
|---|---|---|
| Load Capacity Range | 500 kg to 2,000 kg per pallet position | Accommodates heavy automotive parts, beverage crates, and dense food pallets. |
| Shuttle Travel Speed | Unloaded: 1.2 m/s | Loaded: 0.8 m/s | Dramatically increases pallet movement rates during peak shipping cycles. |
| Battery System | 24V / 30Ah - 50Ah LiFePO4 (Lithium Iron Phosphate) | Fast charging (3-4 hours), 8-10 hours continuous duty cycle, thermal management. |
| Operating Temperature | Standard: -10°C to +45°C | Cold Store: -30°C to +45°C | Ideal for Italian frozen food logistics and cold storage distribution hubs. |
| Steel Surface Protection | Pre-treated 6-stage wash + Epoxy Electrostatic Powder Coating (80-100μm) | Corrosion resistance meeting ISO 12944 environments; hygienic, easy-clean finish. |
| Control Systems | RF Remote Controller / WMS Integration via Wi-Fi 2.4GHz / PLC Auto-sensor | Fully eligible for Transizione 4.0 automation tax incentives. |
Localized Application Scenarios across Italian Industrial Hubs
Custom storage engineering tailored to regional supply chain characteristics, seasonal inventory flow, and localized facility layouts.
Food Processing & Cold Storage Facilities
Italy’s food and beverage hubs in Parma, Modena, Verona, and Bologna handle high-turnover perishable products requiring strict First-In, First-Out (FIFO) or Last-In, First-Out (LIFO) inventory management.
Our Cold-Storage Radio Shuttle systems operate effortlessly in sub-zero environments down to -30°C. By shrinking refrigerated space volume per pallet by over 50%, cold store operators significantly lower electricity consumption for cooling, offsetting energy prices across Europe.
Automotive & Heavy Machinery Spare Parts
Industrial centers around Turin and Brescia demand high-capacity storage for heavy metallic components, engine blocks, and stamping dies weighing up to 2,000 kg per pallet.
We supply reinforced pallet runner racking designed with heavy-gauge Q355B upright profiles and specialized beam lock connectors. Integrated shuttle positioning sensors prevent mechanical shocks during high-load transport, preserving frame structural integrity under continuous industrial duty cycles.
3PL Logistics & E-Commerce Fulfillment Hubs
Major logistics parks serving Rome, Naples, and regional distribution nodes require rapid SKU rotation, high density, and modular scalability for seasonal inventory swings.
Combining Heavy Duty Selective Pallet Racking on upper levels with Radio Shuttle channels on lower levels creates an optimal hybrid picking facility. Operators achieve fast direct access for low-turnover SKUs alongside automated high-density storage for high-turnover promotional stock.
Frequently Asked Questions by Italian Logistics Managers
Addressing key engineering, regulatory, customs, and operational queries for Italian warehouse racking projects.
Factory Strength & Direct Exporter Advantage
Partner directly with South China’s premier warehouse racking manufacturer. In-house steel rolling, automated powder coating, and international project execution.
20,000 m² Facility
Modern production plant operating high-precision continuous roll-forming lines, automated laser cutters, and robotic welding stations.
SGS Audited Quality
Strict ISO 9001 quality management system with full raw material traceability (MTC certificates for every batch of Q235B/Q355B steel coils).
Longest Spray Line
Operating South China's longest automatic electrostatic powder coating line, applying durable, uniform coatings compliant with REACH/RoHS standards.
Global Export Reach
Shipping over 1,000 containers annually to 60+ nations with specialized container bundling that prevents transit damage across ocean voyages.
Optimize Your Italian Warehouse Footprint Today
Share your warehouse CAD drawing, ceiling clear height, pallet dimensions, and storage requirements with our senior logistics engineers. Receive a comprehensive 2D/3D layout design, FEA structural calculation, and competitive factory-direct quote within 24 hours.
