Do you design custom racking layouts for my warehouse?

Yes. Our engineers review your building drawings, ceiling height, column grid, fire exits, forklift type and load data, then deliver a 2D/3D racking layout and load calculation before production.

Why is on-site measurement important before ordering racks?

Second-hand drawings are often inaccurate. A deviation of only 2 cm can prevent uprights from fitting between columns or block a fire passage, so we recommend site investigation or verified measurements before final design.

Which racking system suits long goods like pipes, timber or steel bars?

Cantilever racking is designed for long and irregular loads. Single sided cantilever racks suit wall-side storage, while double sided cantilever racks maximize capacity in open aisles.

Can your racks be used in cold storage warehouses?

Yes. We supply racking for low-temperature cold and frozen storage, with steel grades, coatings and connection details selected for the operating temperature.

Do you provide installation support for overseas projects?

We provide installation drawings, assembly guides and remote technical support, and on-site installation guidance can be arranged for larger projects, followed by inspection and maintenance advice.

Engineering & Whitepaper Guide

Top China Medium Duty Pallet Racking Factories & Suppliers for Panama

An Industrial Sourcing Whitepaper on Structural Design, Corrosion Prevention, Tropicalization Standards, and Nearshoring Logistics Solutions for Panama Warehouses.

Recommended Medium-Duty & Heavy-Duty Racking Systems

Precision-engineered pallet racking and industrial shelving designed for Panama's logistics hubs, cold storage networks, and commercial distribution centers.

Cold Room Medium & Heavy Duty Pallet Racking

Modular Cold Room Heavy Duty Pallet Racking System

Load Capacity: 500kg - 1,500kg / Level Feature: CE Certified, Anti-Frost Coating Application: Cold Chain & Refrigerated Logistics

Dongguan Manufacturer 500kg Medium Duty Warehouse Rack

500kg Loading Capacity Medium Duty Warehouse Storage Rack

Load Capacity: 300kg - 500kg / Layer Structure: Boltless Interlocking Step Beam Application: Retail & Spare Parts Warehousing

Custom Adjustable Medium Duty Load-Bearing Steel Racks

Custom Adjustable Medium-Duty 500kg/Layer Steel Racking

Pitch Adjustment: 50mm / 75mm Adjustable Material: Q235B Cold Rolled Steel Application: Industrial Workshop & FMCG

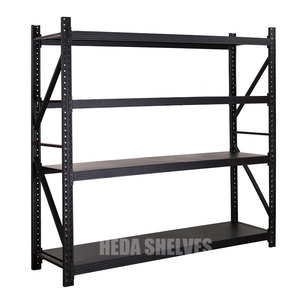

Customizable Black Medium Duty Steel Shelving

Customizable Industrial Powder-Coated Medium Duty Shelving

Finish: Epoxy Powder Coating (Black/Blue) Decking: Steel Deck or Plywood Deck Application: Colon Free Zone Distribution

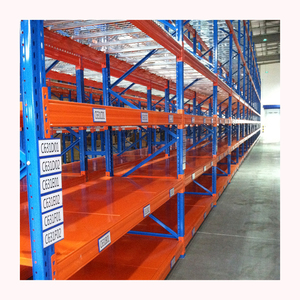

Heavy Duty Shelves Industrial Steel Rack for Medium Weight

Selective Industrial Pallet Racking for Medium Weight Loads

Capacity: 400kg - 800kg / Level Safety Factor: 1.55 Structural Reserve Application: High-Cube Fulfillment Centers

5/6 Layer Heavy Light Duty Steel Warehouse Rack

5/6-Layer Multi-Tier Adjustable Metal Workshop Racking

Layers: 4 to 6 Configurable Tiers Capacity: 300kg - 400kg / Shelf Application: E-commerce Picking & Garment Hubs

Powder Coating Steel Cargo Equipment Pallet Rack

Powder-Coated Heavy Cargo Equipment Pallet Storage Rack

Surface: Anti-Corrosion Spray (ISO9001) Beam Type: Box Beam / Step Beam Application: Heavy Hardware & Machinery Parts

Cold Rolled Steel 5 Layer Industrial Storage Shelf

Bolt-Free Anti-Corrosion Cold Rolled Steel Storage Shelving

Assembly: 100% Boltless Quick Interlocking Coating: Marine-Grade Salt Spray Tested Application: Panama Canal Transit Warehouses

Why Top Panama Logistics Operators Partner with Our Factory

Direct Manufacturing Scale, International Quality Compliance, and End-to-End Overseas Engineering Support

23+

Years R&D Experience

50,000T

Annual Steel Output

60+

Export Destinations

500m

Automated Spray Line

Panama Warehousing Dynamics: The Strategic Demand for Medium-Duty Racking

As the primary logistics hub of the Americas, Panama occupies a unique position in global trade. Driven by the expansion of the Panama Canal, the booming activity in the Colon Free Zone (Zona Libre de Colón - ZOLICOL), and the rapid expansion of the Tocumen Logistics Zone, warehousing operations in Panama require highly versatile, durable, and space-efficient storage architecture.

Medium-duty pallet racking and heavy-duty industrial shelving serve as the structural backbone for Panama’s third-party logistics (3PL) providers, freight forwarders, pharmaceutical distributors, and retail fulfillment centers. Unlike standard domestic storage configurations, medium-duty systems engineered for Panama must balance quick SKU turnover with structural resilience against harsh tropical maritime environments.

Information Gain Insight: Tropical Marine Anti-Corrosion Requirements Panama’s coastal logistics centers (such as Manzanillo International Terminal, Cristobal, and Balboa) experience ambient relative humidity exceeding 85% year-round alongside airborne salinity. Standard interior powder coatings rapidly degrade under these conditions. Leading Chinese OEM manufacturers utilize a 6-stage pre-treatment chemical washing process followed by thermosetting epoxy-polyester powder coating (minimum 80–110 microns thick), yielding salt-spray resistance verified over 500 hours under ASTM B117 testing protocols.

Key Market Drivers in Panama

Nearshoring Expansion: Global brands stocking inventory in Colon Free Zone to serve Central and South American markets with short lead times.
High SKU Diversity: Rising demand for medium-duty racking (200kg to 800kg per level) that accommodates non-palletized cartons, hand-picked inventory, and bin storage seamlessly alongside pallet storage.
High-Cube Utilization: Maximizing vertical warehouse clearance up to 12 meters using multi-tier mezzanine shelving and narrow-aisle medium-duty configurations.

Technical Advantages of China-Sourced Systems

Q235B Cold-Rolled Structural Steel: Manufactured with high tensile yield strength for optimal strength-to-weight ratios.
50mm / 75mm Pitch Adjustability: Allows Panama facility managers to quickly modify shelf height according to seasonal inventory shifts.
Optimized Container Loading: Precision packaging engineered to maximize 40ft High Cube (40HQ) ocean container volumetric capacity, significantly reducing sea freight cost per unit.

Engineering Comparison: Medium-Duty vs. Heavy-Duty Systems for Panama Buyers

Select the optimal storage infrastructure tailored to load profile, handling equipment, and throughput requirements.

Structural Parameter	Medium-Duty Racking (Longspan)	Heavy-Duty Selective Pallet Rack	Automated AS/RS Pallet System
Load Capacity / Tier	200 kg – 800 kg per level	1,000 kg – 4,000 kg per level	500 kg – 1,500 kg per pallet position
Handling Method	Manual Hand-Loading & Picking	Forklift (Counterbalance / Reach)	Stacker Crane & WMS Software
Upright Section Profile	55×47×1.5mm / 60×50×1.8mm	80×60×2.0mm / 100×70×2.5mm	120×95×3.0mm (Custom Structural Steel)
Beam Type	Step Beam / P-Beam with Steel Deck	Box Beam / Interlocking Hook Beam	Guide-Rail Integrated Beam
Best Applied In Panama	Colon Free Zone Electronics & Apparel	Balboa Port Heavy Cargo & FMCG CDs	Tocumen High-Density Cold Storage Hubs
Cost per Storage Position	Low to Moderate (Optimal ROI)	Moderate (Standard Industrial standard)	High (Advanced Automation)

Localized Application Scenarios Across Panama Commercial Hubs

Custom-designed racking configurations tailored to specific regional operational zones in Panama.

1. Colon Free Zone (ZOLICOL) Hubs

High-turnover re-export warehouses handling electronics, footwear, and cosmetics benefit from 5-layer adjustable medium-duty longspan shelving. Steel decking combined with wire mesh dividers allows rapid manual picking and high SKU density without needing heavy forklifts.

2. Panama Canal Pacific Logistics Parks

Located near Port of Balboa, these heavy logistical centers process heavy machinery components, marine hardware, and automotive parts. Hybrid storage structures integrating selective pallet racking below with medium-duty catwalk mezzanines above maximize overhead clearance efficiently.

3. Tocumen Cold Chain & Pharma Hubs

Temperature-controlled rooms dedicated to pharmaceuticals and perishable foods require stainless steel or hot-dip galvanized medium-duty racking systems. Smooth, powder-coated finishes prevent bacterial accumulation and facilitate stringent health and safety compliance audits.

Frequently Asked Questions by Panama Racking Buyers

Essential guidance covering international shipping, import clearance, installation support, and structural customization.

Q1: What are the transit lead times and shipping routes from China to Panama ports?

Ocean freight from South China ports (such as Nansha, Yantian, or Shenzhen) directly to Panama ports (Manzanillo, Cristobal, or Balboa) typically takes between 22 to 28 days in transit. Factory manufacturing lead time for standard medium-duty pallet racking orders (1 to 5 containers) is approximately 12 to 18 days. We provide comprehensive export documentation including Bill of Lading, Commercial Invoice, Packing List, and Certificate of Origin (Form E or CO) to ensure seamless customs clearance through Panama National Customs Authority (Autoridad Nacional de Aduanas).

Q2: How do your factories ensure racking durability in Panama's high-humidity climate?

To combat Panama's humid maritime climate, all steel profiles undergo a rigorous multi-stage surface treatment: automatic shot-blasting to remove rust and scale, followed by acid-pickling, phosphating, and pure water rinsing. Finally, an electrostatic epoxy powder coating is baked at 180°C to 200°C. For extreme coastal conditions or outdoor exposure, we provide hot-dip galvanizing (HDG) conforming to ISO 1461 standards, offering maintenance-free corrosion resistance for over 20 years.

Q3: Can your engineering team customize racking dimensions to fit existing Panama facility CAD drawings?

Yes, absolutely. Our in-house structural engineering team provides complimentary 2D layout planning and 3D BIM modeling based on your warehouse architectural plans. We analyze building column locations, roof clear heights, sprinkler system lines, and forklift aisle turning radii (such as reach trucks or narrow aisle VNA trucks) to deliver load-optimized racking layouts tailored to your exact operational requirements.

Q4: Do Chinese medium-duty racking systems comply with seismic design safety standards?

Yes. Panama is located within a moderate-to-high seismic zone. Our racking designs adhere to international FEM 10.2.02, RMI (Rack Manufacturers Institute), and ANSI MH16.1 structural standards. We calculate seismic base shear forces, frame buckling limits, and dynamic load factors, equipping racking systems destined for Panama with heavy-duty footplates, expansion anchor bolts, and reinforced diagonal bracing.

Q5: How is installation managed in Panama after the container arrives?

Every order shipped to Panama includes detailed structural assembly blueprints, step-by-step installation manuals, and component coding tags. We also provide full 3D video tutorials and real-time remote engineering guidance via video calls. For large-scale warehouse projects (such as multi-tier mezzanines or automated high-bay systems), we can dispatch experienced installation supervisors directly to your site in Panama to manage local installation crews.

Q6: What is the MOQ (Minimum Order Quantity) and payment structure for Panama buyers?

While we accept consolidated LCL orders for custom trial projects, ordering full container loads (20GP or 40HQ) is highly recommended to minimize sea freight overhead per square meter of racking. Standard payment terms for international buyers include 30% T/T deposit upon order confirmation and 70% balance against the Copy of Bill of Lading, or irrevocable Irrevocable Letter of Credit (L/C at sight).

Ready to Optimize Your Warehouse Layout in Panama?

Contact our senior logistics engineering team today for a complimentary CAD floorplan design, structural load calculations, and a competitive factory-direct quote.
